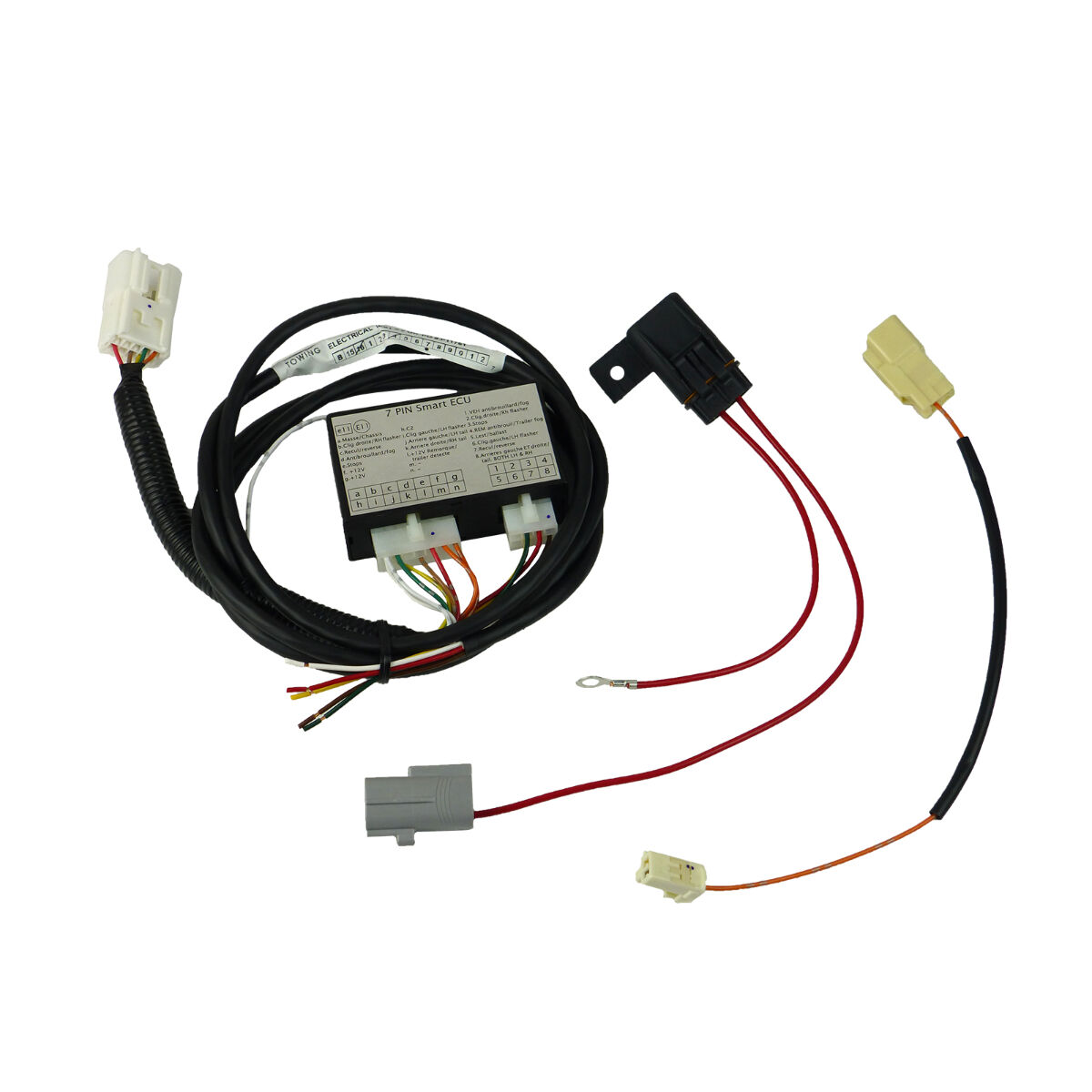

TAG’s Direct Fit Wiring Harness steps straight into the MT Pajero Sport from 01/2015 so you can hook up a trailer or van without hacking factory wiring. The ECU handles the standard 7 pin lighting functions on a 12 V system, so brake, tail and indicator signals all stay in sync with the wagon. You get a kit shaped for the Pajero Sport rear end, so cable runs sit where they should around the towbar area. The harness uses insulated copper wire with a tough outer sheath to deal with stone spray and dirt under the back of a 2.8–3.0 m wheelbase wagon. A compact smart ECU module mounts close to the tail lights, keeping wire lengths short for consistent voltage at the trailer plug. Factory-style connectors lock into existing Pajero Sport plugs, so the setup stays tidy and serviceable as you clock up towing kilometres across Australia.

• Direct fit ECU wiring harness for towbar use
• Suits Mitsubishi Pajero Sport MT 01/2015-on
• Approximate installation time of 0.75 hr
• Configured for 7 pin trailer lighting circuits
• Reverse sensor cut off not applicable
• Fog light cut off not applicable
• No diagnostic coding required after fitment
• Vehicle-specific connectors match factory loom plugs
• Harness layout suits Pajero Sport rear chassis area
• Ideal for wiring trailers and campers to the vehicle

Q: Does this wiring harness require any diagnostic coding after installation?

No, this harness does not require diagnostic coding. The ECU is pre-configured to work with the Pajero Sport MT from 01/2015-on. Once the plugs are connected and power is supplied, the unit operates with the factory lighting circuits. This keeps the job straightforward for workshops and home garages. It also means you can swap or service the unit without booking dealer programming.

Q: What trailer lighting standard does this harness support?

The harness supports a standard 7 pin trailer lighting setup. The smart ECU manages brake, tail, indicator and auxiliary functions on a 12 V system. This matches common box trailers, campers and car trailers sold in Australia. Using a 7 pin setup means replacement plugs and sockets are easy to source nationwide. It also helps keep compatibility across multiple trailers you might tow.

Q: Can this harness be used on vehicles other than the Mitsubishi Pajero Sport MT?

No, this harness is configured for the Mitsubishi Pajero Sport MT from 01/2015-on. The connectors, wire lengths and ECU mapping all match this specific vehicle loom. Using it on a different model can leave plugs unmatched or circuits incorrect. For other vehicles, a different TAG harness with the right plugs and layout should be used instead.

Q: How long should I allow for installation of this harness?

The approximate fitting time is 0.75 hr. This estimate assumes access to basic workshop tools and a towbar already in place. The direct fit plugs help keep the process predictable because there is no need to cut or join existing vehicle wires. Allow extra time if you are routing cables around accessories or working on a vehicle with trim already modified.

Suitable for Mitsubishi Pajero Sport MT built from 01/2015-on

Approximate installation time is 0.75 hr

No diagnostic coding is required after installation

Reverse sensor cut off and fog light cut off are not applicable

Harness uses a direct fit ECU configuration for towbar wiring
