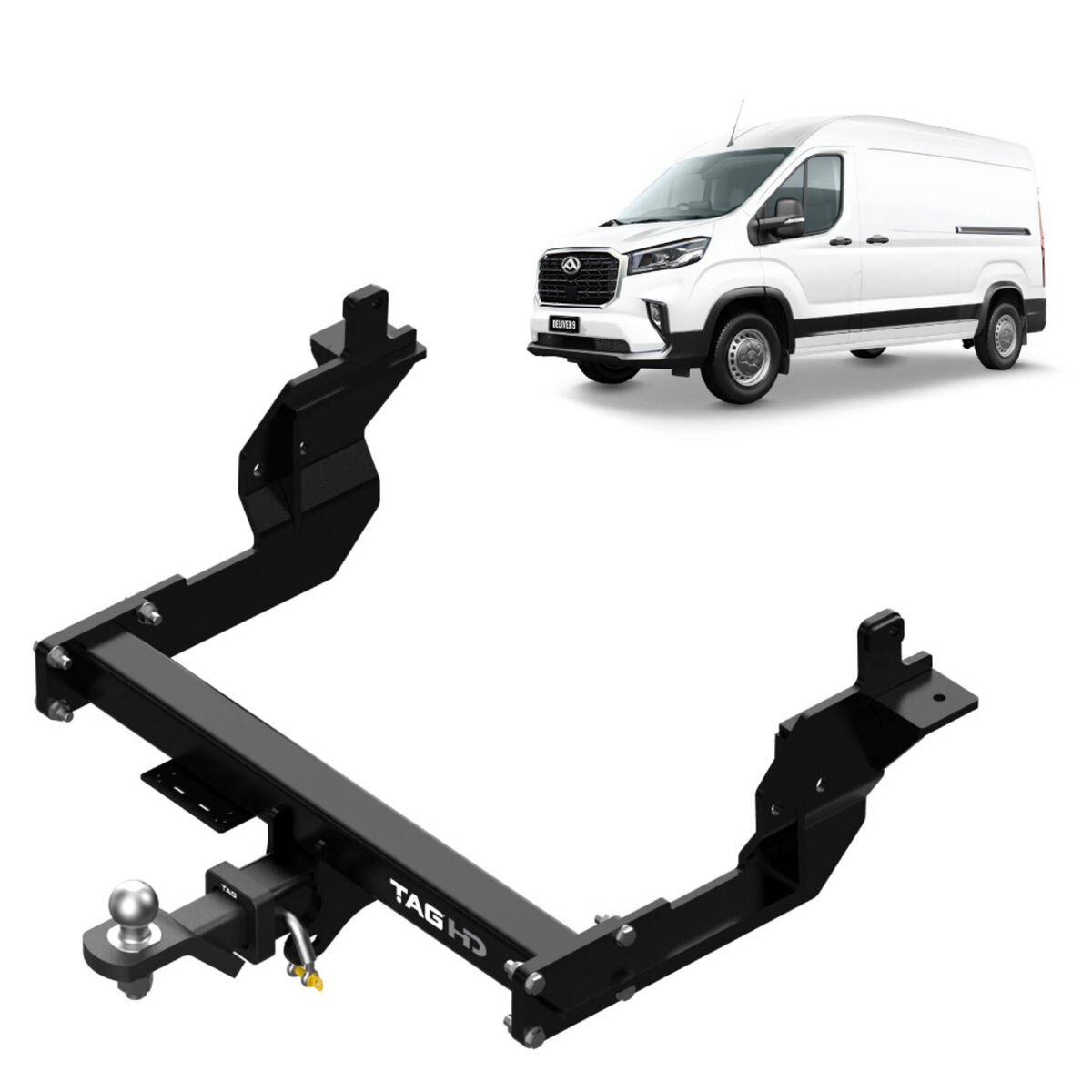

The TAG Heavy Duty Towbar for the LDV Deliver 9 LWB from 07/2020 gives your van a solid hitch point sized for standard 50 mm towballs so you can tow box trailers and work gear within the factory tow rating. The bar spans the rear chassis with brackets cut to match the LDV bolt pattern so the load spreads across more than 800 mm of steel instead of a single centre mount.

The main section runs in thick wall steel box around 4 mm thick with side plates tied into existing mounting holes so you are not drilling fresh 12 mm hardware locations through the rails. A black powder coat layer roughly 80 μm thick helps the bar stand up to coastal air and wet work sites. Bolt it on once and it becomes part of the van setup for daily towing.

• Heavy duty towbar for LDV Deliver 9
• Suits long wheelbase vans from 07/2020-on
• Vehicle specific mounting brackets for LDV chassis
• Standard 50 mm towball style hitch receiver
• Wide mounting span across rear chassis rails
• Thick wall steel construction for strength
• Black powder coat finish for corrosion resistance
• Compatible with factory tow ratings only
• Ideal for towing work and trades trailers
• Bolt-on fitment using existing chassis points

Q: Does this towbar fit all LDV Deliver 9 vans?

No, this towbar suits LDV Deliver 9 long wheelbase vans built from July 2020 onwards. Short wheelbase or mid wheelbase versions use different mounting points and bar shapes. Always check your build date on the compliance plate. If your van is earlier or a different wheelbase, you will need a different towbar model.

Q: Can I use the factory LDV tow rating with this bar?

Yes, you should follow the tow and ball load ratings listed by LDV for your specific Deliver 9 model. The bar is engineered around the vehicle limits, not to increase them. Always check the handbook and compliance labels. Never exceed the lowest rated part in the setup, including towbar, towball, trailer and vehicle.

Q: Will this towbar affect rear step or bumper clearance?

The bar tucks in under the rear of the LDV Deliver 9 LWB and keeps the hitch close to the bumper line. Some rear accessories that bolt into the same chassis area may not be compatible. If your van already has a rear step or non standard bumper, check their mounting before ordering. You may need to remove or modify other gear.

Q: Is wiring included with this towbar?

No, this towbar kit is focused on the bar and mounting hardware only. Trailer wiring looms and plugs are usually sold separately to match different trailer setups. Many owners pair the bar with a vehicle specific wiring harness. Your auto electrician or installer can advise the right loom and socket type for your van and trailer.

Suitable for LDV Deliver 9 Van LWB models built from July 2020 onwards.
