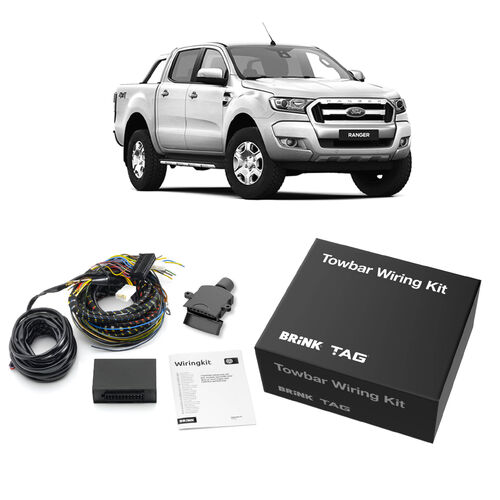

The TAG Direct Fit Wiring Harness is setup for Ford Ranger PX1 utes built from 03/2014 to 07/2015, giving you a straight hook-up for trailer lights on standard 12 V systems. The kit ties into the factory loom at the rear lights so the towbar socket sits close to the bar instead of running extra loose cable under the tub. That means cleaner installs when you want to tow campers or box trailers on weekend trips.

The gear uses automotive grade copper wire with insulation rated to engine bay temps over 80°C, so it copes with long hauls in summer heat. The main loom is roughly 8 mm thick, which is chunky enough for protection but still easy to route along the chassis rails. TAG builds this harness specifically around the Ranger PX1 body and electrical layout from the 2014–2015 window, a smart buy if you want wiring that suits Aussie touring conditions.

• Direct fit wiring harness for Ford Ranger PX1
• Suits build dates between 03/2014 and 07/2015
• Vehicle specific connectors for factory style hookup
• Intended for 12 V trailer lighting circuits
• Loom routes from rear lamps to towbar socket area
• Includes trailer socket housing as shown
• Automotive grade copper wiring with insulated sheath
• Harness grouped into single loom for tidy install
• Compatible with Ford Ranger PX1 dual cab and cab variants within date range
• Supplied by TAG for towing applications

Q: Does this harness fit all Ford Ranger models?

No, it only fits PX1 Rangers built between 03/2014 and 07/2015. The harness is shaped and pinned to match the factory plugs and wiring layout used in that build window. If your Ranger falls outside those dates, the connectors and wire paths may not line up. Always check the compliance plate build date before ordering this kit.

Q: Is this harness suitable for standard trailer lighting loads?

Yes, it is intended for standard 12 V trailer lighting on Ford Ranger PX1 models. The loom uses automotive grade copper wire sized for typical tail, brake and indicator circuits. This suits box trailers, campers and similar rigs within normal lighting current draw. Any extra accessories on the trailer should be wired on separate circuits where required.

Q: Can I install this harness at home?

Yes, home installation is possible for users comfortable working with vehicle trim and basic tools. The loom follows the Ranger rear body and chassis with factory-style connection points. Taking time to follow the supplied layout helps avoid pinched cables. If you are unsure about electrical work, a professional installer is a good option.

Q: Does this kit include the trailer socket housing?

Yes, the photos show a dedicated trailer socket body supplied with the loom. The socket mounts close to the towbar so the wiring run from the rear light area stays short. This helps keep connections protected from road debris. Always check the socket type on your trailer lead to confirm compatibility before final mounting.

Suitable for Ford Ranger PX1 models built between 03/2014 and 07/2015 only

Fits vehicles within the PX1 series that match the specified build dates

Intended for connection to a towbar setup for trailer lighting functions

Professional installation is recommended for correct integration with vehicle electrics
