Introducing our new line of adjustable tow ball mounts! By leveraging the same head design featured in the UNTTBM450 and integrating it with our trusted Weight Distribution Hitches, we have crafted cost-effective alternatives to our existing range of adjustable hitch products.

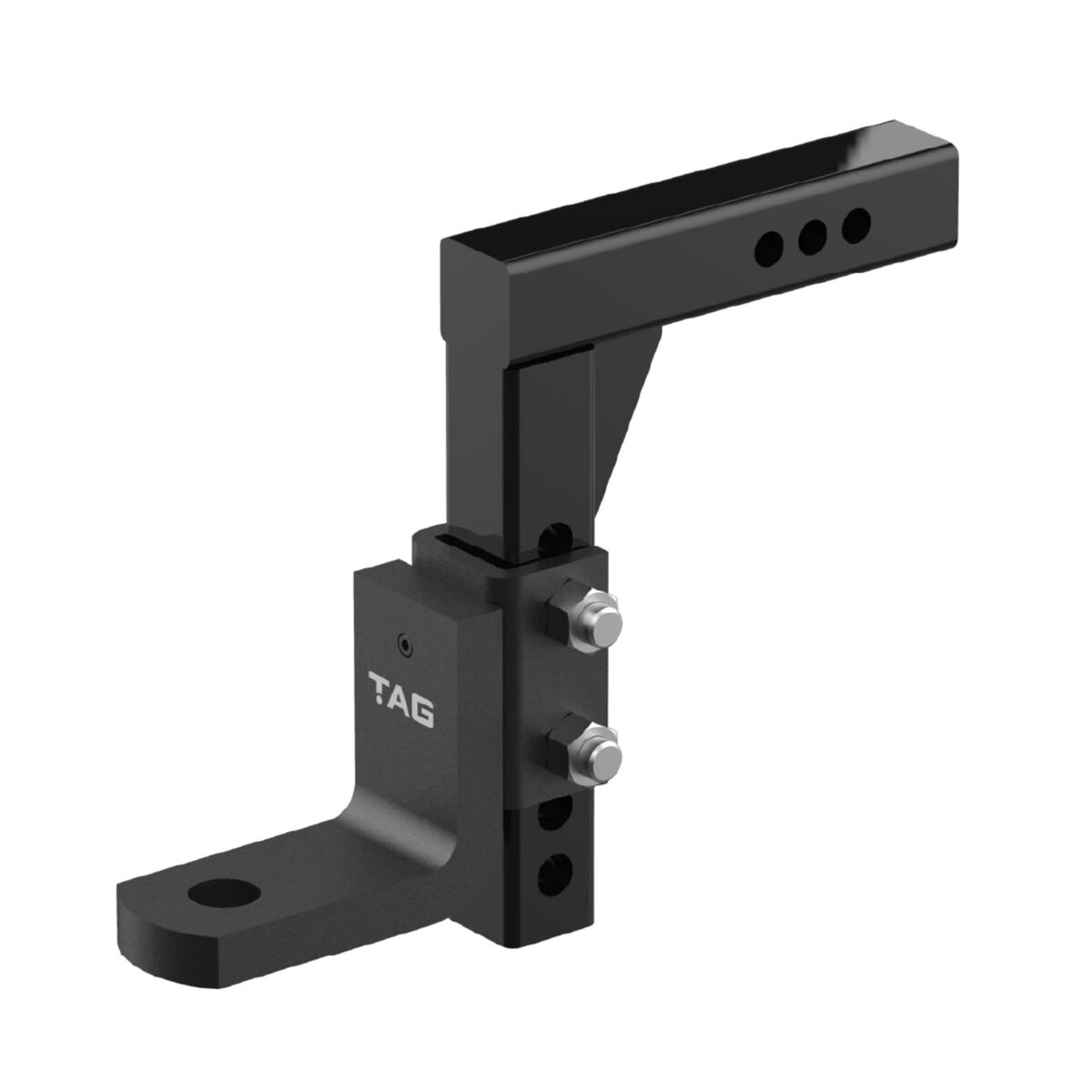

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup.
Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping. (Please note that the finish on the head and shank are different).
Specifications:
-
90° Separate Tongue Face with four adjustable positions.
-
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
-
Includes reducer bush to suit 50mm or 70mm Towball (Limited to 3500kg)
-
Includes nuts, bolts and washers
-
Gross Trailer 3500kg (50mm Tow Ball)
-
Ball Weight 350kg (50mm Tow Ball)
-
Durable Powder Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
-
Torque: 441nm
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
- Adjustable height suits varied trailer setups
- Solid steel gear built for towing loads
- Powder-coated finish handles Aussie weather
- 3500kg rating works for many caravans
- Bush suits both 50mm and 70mm tow balls
- Brand: TAG
- Towbar connection: 50mm square hitch
- Tongue face: 90° separate face with four adjustable positions

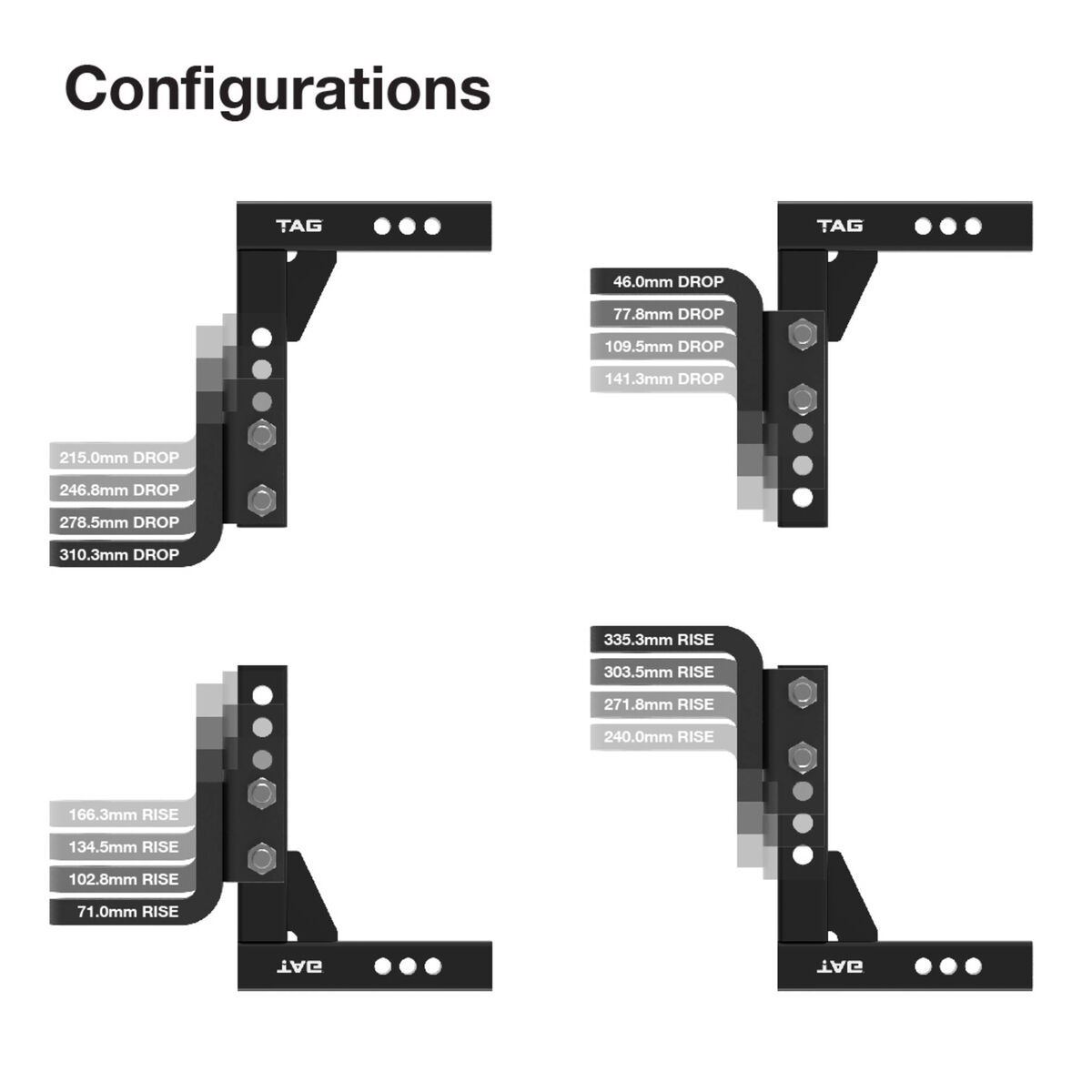

- Maximum drop: 310.3mm
- Other drop positions: 215.0mm, 246.8mm, 278.5mm
- Maximum rise: 335.3mm
- Other rise positions: 71.0mm, 102.8mm, 134.5mm, 166.3mm, 240.0mm, 271.8mm, 303.5mm

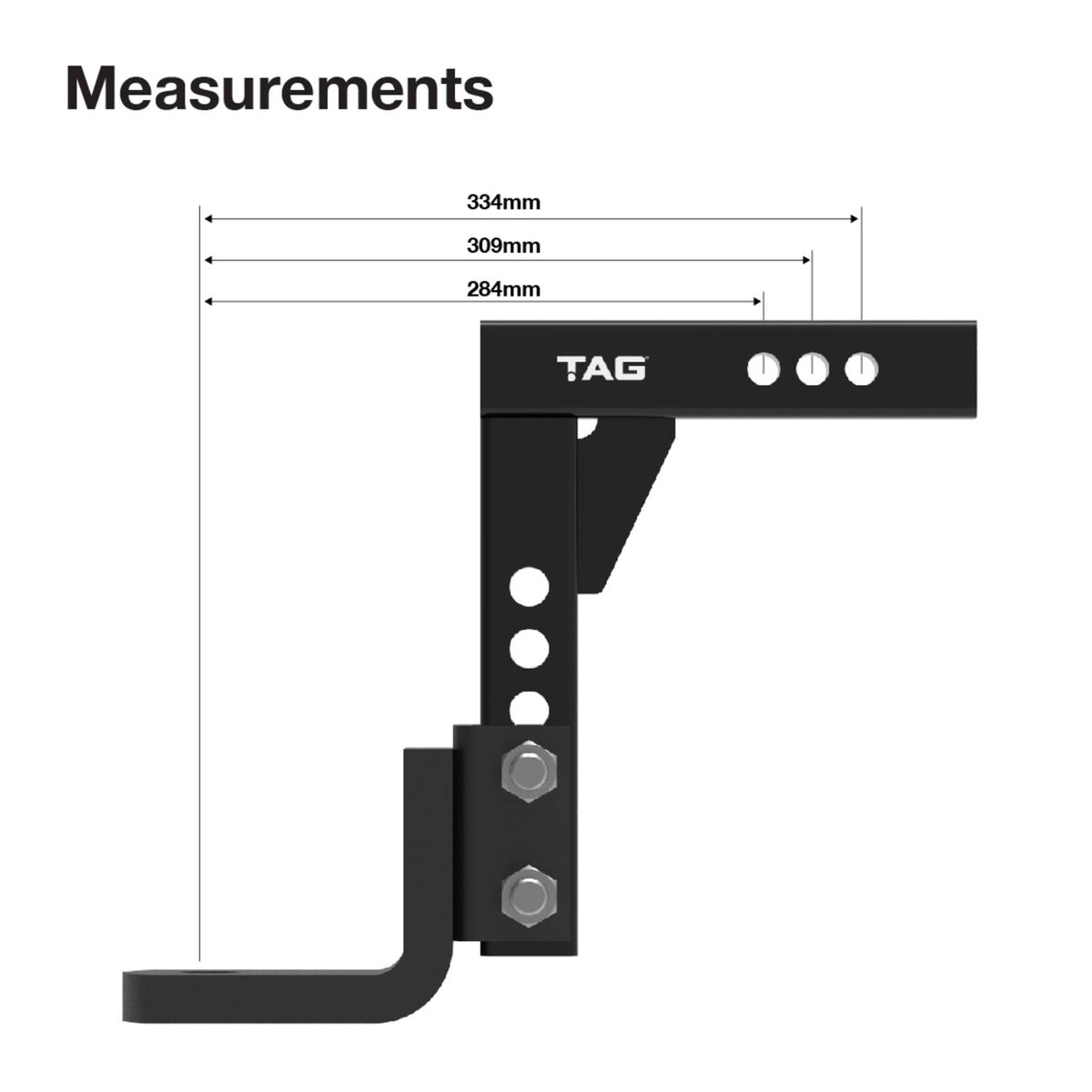

- Overall horizontal length options: 284mm, 309mm, 334mm
- Construction: solid steel
- Finish: durable powder-coated coating
- Adjustment: multiple pin holes for horizontal and vertical adjustment
- Gross trailer mass rating: 3500kg with 50mm tow ball
- Maximum ball weight: 350kg with 50mm tow ball
- Includes reducer bush to suit 50mm or 70mm tow ball (limited to 3500kg)
- Torque setting: 441Nm
- Compliance: ADR 62/02 compliant
- Warranty: TAG limited lifetime warranty
- Tow ball, R-clip and hitch pin sold separately
- TAG Adjustable Heavy Duty Tow Ball Mount
- 50mm square shank assembly
- 90° separate tongue face
- Reducer bush to suit 50mm or 70mm tow ball
- Nuts
- Bolts
- Washers
| SKU | UNTTBM100 |
|---|---|
| Barcode # | OEBC678639 |
| Brand | TAG |
| Shipping Weight | 11.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.072000000m3 |
