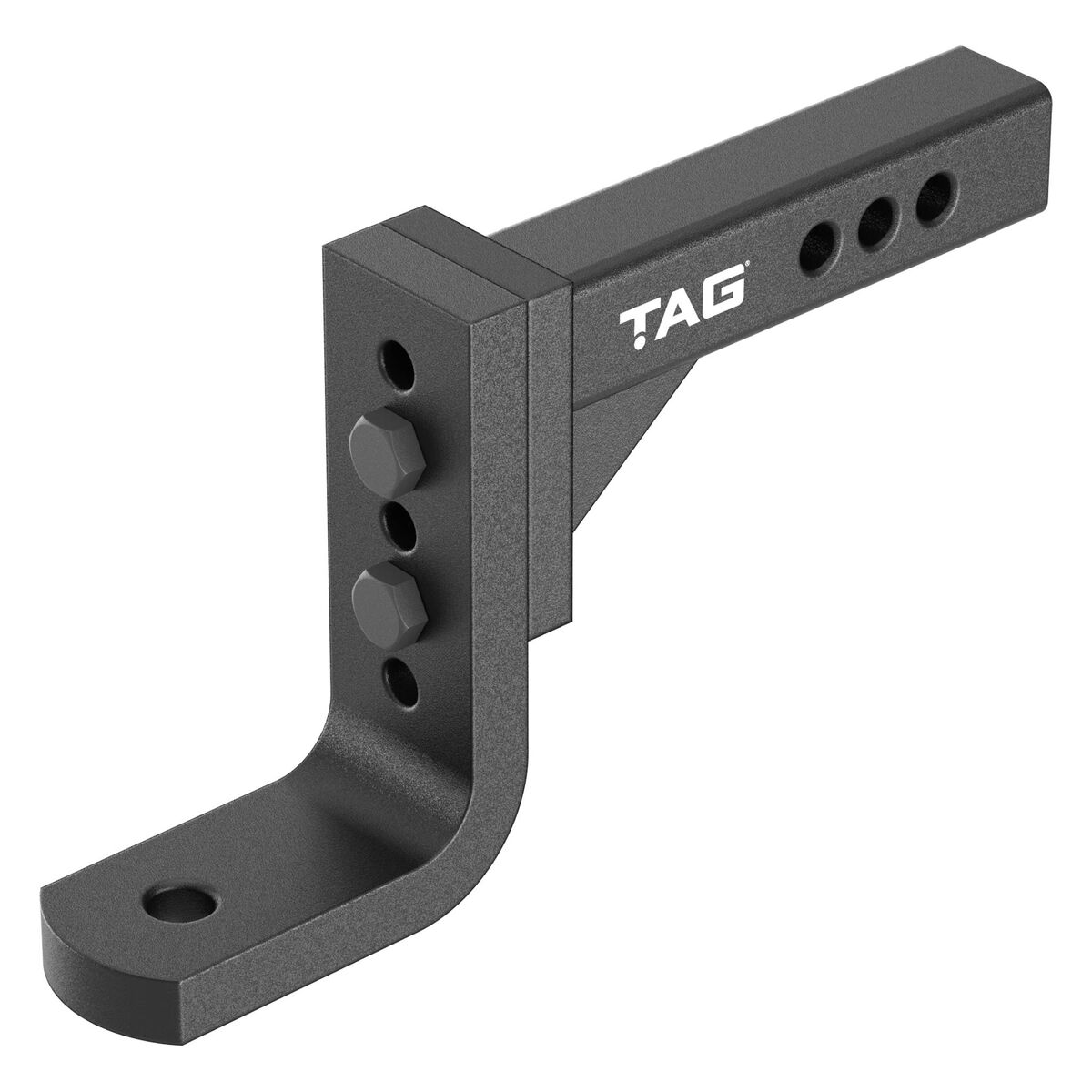

TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.
-
Torque required for Bolts 270Nm
-

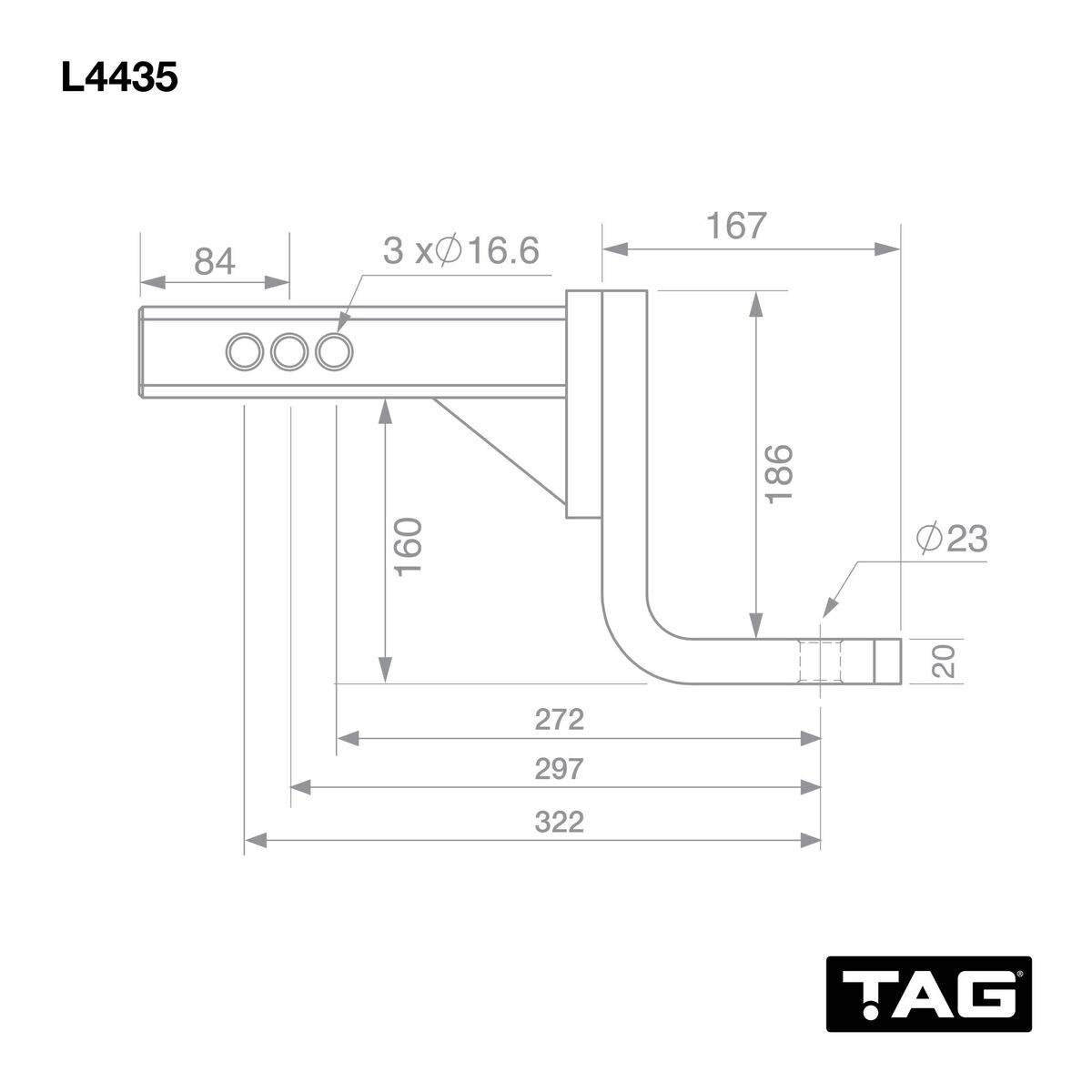

297mm Long (Centre Pin Hole to Tow Ball Hole)
-
90° Tongue Face
-
Drop: From 100.5 to 160.5
-
Can be mounted in Drop Mode or Rise Mode
-
3500kg Gross Trailer Weight
-
350kg Ball Weight
-
Durable Powder-Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
- Adjustable drop range from 100.5–160.5mm
- Suits 50mm square hitch receivers
- 3500kg towing and 350kg ball rating
- Drop forged steel construction built tough
- Powder-coated finish for long-term use
- Smart buy for regular towing duty
- Material: Drop forged steel
- Manufacturing: CNC milled and robotically welded
- Hitch size: 50mm square hitch receiver
- Overall tongue length: 297mm (centre pin hole to tow ball hole)
- Tongue face angle: 90°
- Adjustable vertical drop range: from 100.5mm to 160.5mm
- Mounting orientation: Drop mode or rise mode
- Gross trailer weight capacity: 3500kg
- Maximum ball weight: 350kg
- Finish: Durable powder-coated coating
- Compliance: ADR 62/02 compliant and batch marked
- Torque requirement for bolts: 270Nm
- Warranty: TAG limited lifetime warranty
- Tow ball compatibility: Standard 23mm tow ball shank hole
- Tow ball, R-clip and hitch pin: Sold separately
- 1 x TAG adjustable tow ball mount
- 2 x adjustment bolts (pre-installed in tongue bracket)
| SKU | L4435 |
|---|---|
| Barcode # | 9340407045367 |
| Brand | TAG |
| Shipping Weight | 11.3000kg |
