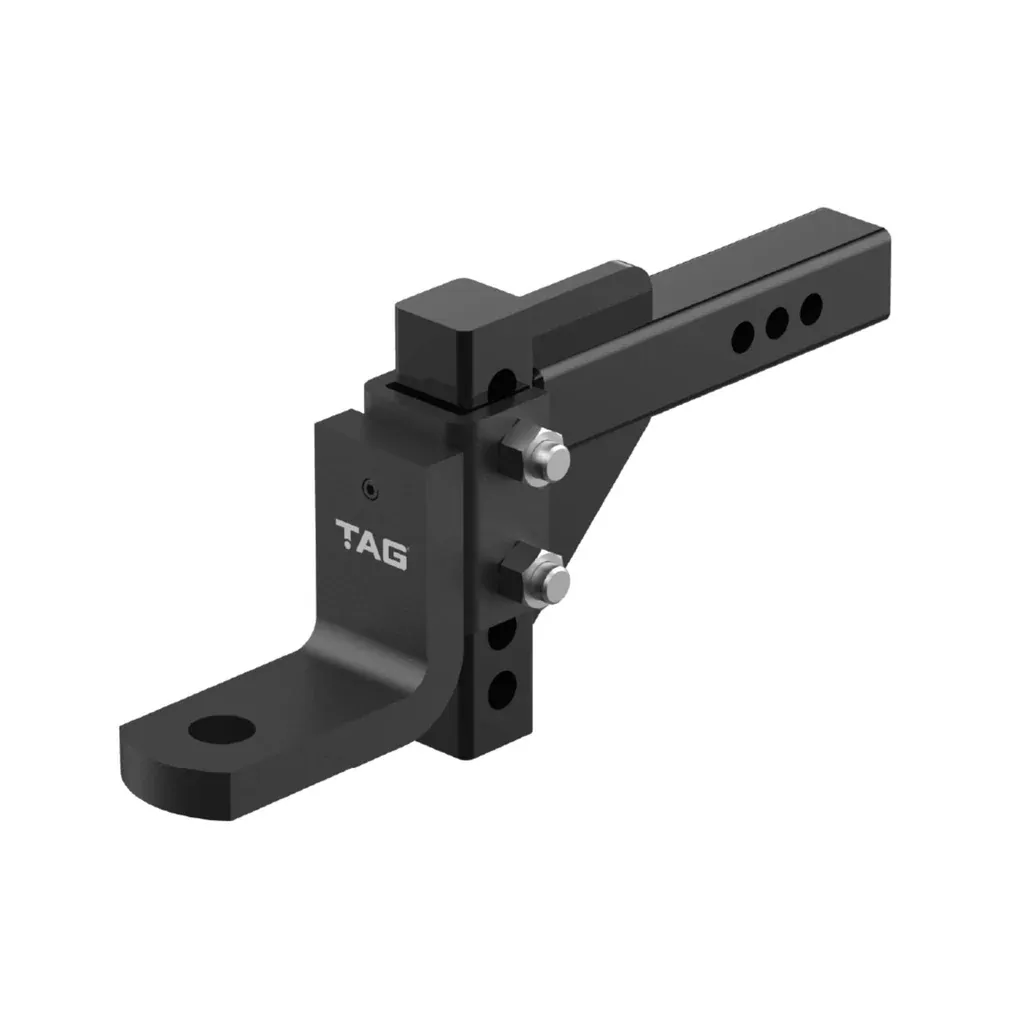

Introducing our new line of adjustable tow ball mounts! By leveraging the same head design featured in the UNTTBM450 and integrating it with our trusted Weight Distribution Hitches, we’ve crafted cost-effective alternatives to our existing range of adjustable hitch products.
The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup.
Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping. (Please note that the finish on the head and shank are different).
Specifications:
-
90° Separate Tongue Face with four adjustable positions.
-
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
-
Includes reducer bush to suit 50mm or 70mm Towball (Limited to 3500kg)
-
Includes nuts, bolts and washers
-
Gross Trailer 3500kg (50mm Tow Ball)
-
Ball Weight 350kg (50mm Tow Ball)
-
Durable Powder Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
-
Torque: 441nm
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Hitch Type: Heavy Duty 50mm Square

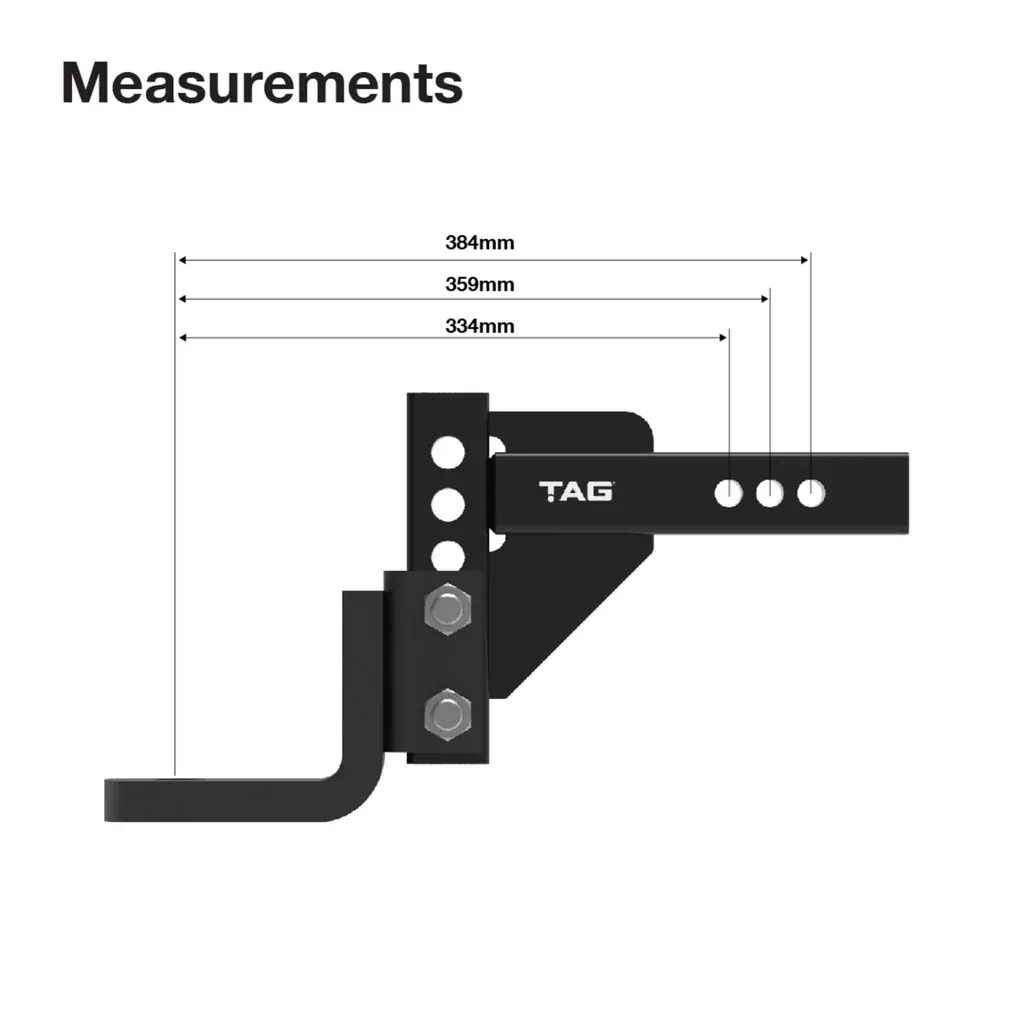

- Drop: 174mm
- Rise: 199
- Coating: Powder Coated
- Adjustable: Adjustable
- Towbar Capacity [kg]: 3500
- Ball Weight [kg]: 350
- Tongue Face: 90°
- Four position 90° tongue face setup_x000d_
- 174mm drop and 199mm rise range_x000d_
- Solid steel construction built tough_x000d_
- Rated 3500kg trailer and 350kg ball_x000d_
- Includes reducer bush for two ball sizes_x000d_
- ADR compliant gear for Australian roads
- Tow ball mount class: Heavy Duty (Class 4)_x000d_
- Hitch type: Heavy duty 50mm square_x000d_
- Tongue face: 90° separate face with four positions_x000d_
- Mount modes: Drop mode or rise mode_x000d_
- Maximum drop: 174mm_x000d_
- Maximum rise: 199mm_x000d_
- Gross trailer weight capacity: 3500kg (50mm tow ball)_x000d_
- Towbar capacity: 3500kg_x000d_
- Maximum ball weight: 350kg (50mm tow ball)_x000d_
- Torque requirement: 441Nm_x000d_
- Tow ball size compatibility: 50mm or 70mm with reducer bush (limited to 3500kg)_x000d_
- Adjustment: Multiple pin holes for horizontal and vertical adjustment_x000d_
- Construction material: Solid steel_x000d_
- Coating: Durable powder coated finish_x000d_
- Compliance: ADR 62/02 compliant_x000d_
- Warranty: TAG limited lifetime warranty
- TAG adjustable heavy duty tow ball mount assembly_x000d_
- Solid steel 50mm square shank_x000d_
- 90° separate tongue face_x000d_
- Reducer bush to suit 50mm or 70mm tow ball_x000d_
- Mounting nuts_x000d_
- Mounting bolts_x000d_
- Mounting washers
| SKU | UNTTBM000 |
|---|---|
| Barcode # | OEBC720999 |
| Brand | TAG |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.072000000m3 |
