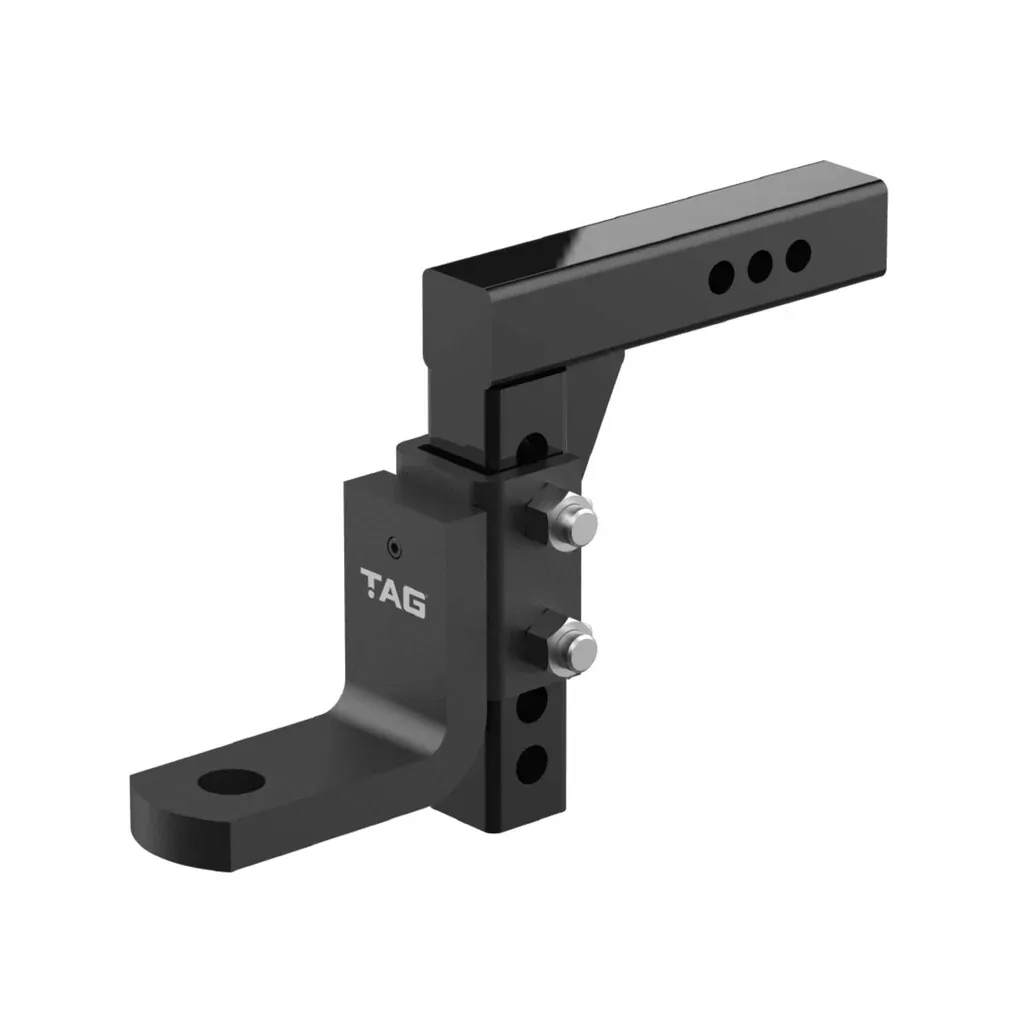

Introducing our new line of adjustable tow ball mounts! By leveraging the same head design featured in the UNTTBM450 and integrating it with our trusted Weight Distribution Hitches, we’ve crafted cost-effective alternatives to our existing range of adjustable hitch products.
The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup.
Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping. (Please note that the finish on the head and shank are different).
Specifications:
-
90° Separate Tongue Face with four adjustable positions.
-
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
-
Includes reducer bush to suit 50mm or 70mm Towball (Limited to 3500kg)
-
Includes nuts, bolts and washers
-
Gross Trailer 3500kg (50mm Tow Ball)
-
Ball Weight 350kg (50mm Tow Ball)
-
Durable Powder Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
-
Torque: 441nm
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Hitch Type: Heavy Duty 50mm Square
- Drop: 260mm
- Rise: 285
- Coating: Powder Coated
- Towbar Capacity [kg]: 3500
- Adjustable: Adjustable
- Ball Weight [kg]: 350
- Tongue Face: 90°
- Flexible 260mm drop or 285mm rise
- Solid steel adjustable towing kit
- Suits 50mm square hitch receivers
- Handles up to 3500kg trailer weight
- Bush included for 50mm or 70mm balls
- Powder-coated finish for long-term use
- Brand: TAG
- Tow ball mount class: Heavy Duty (Class 4)
- Hitch type: Heavy Duty 50mm square
- Tongue face: 90° separate tongue face with four adjustable positions
- Configuration: Can be mounted in drop or rise mode
- Maximum drop: 260mm
- Maximum rise: 285mm
- Gross trailer weight rating: 3500kg (50mm tow ball)
- Towbar capacity: 3500kg
- Maximum ball weight: 350kg (50mm tow ball)
- Torque setting: 441Nm
- Construction material: Solid steel
- Finish: Durable powder-coated finish
- Compliance: ADR 62/02 compliant
- Warranty: TAG limited lifetime warranty
- Adjustment: Multiple pin holes for horizontal and vertical adjustment
- Accessories sold separately: Tow ball, R-clip and hitch pin
- Adjustable tow ball mount assembly with 90° separate tongue face
- Heavy-duty 50mm square shank
- Reducer bush to suit 50mm or 70mm tow ball
- Nuts
- Bolts
- Washers
| SKU | UNTTBM050 |
|---|---|
| Barcode # | OEBC720998 |
| Brand | TAG |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.072000000m3 |
Download instructions to help you install, use and get the most out of your product.
