Introducing our new line of adjustable tow ball mounts! By leveraging the same head design featured in the UNTTBM450 and integrating it with our trusted Weight Distribution Hitches, we’ve crafted cost-effective alternatives to our existing range of adjustable hitch products.

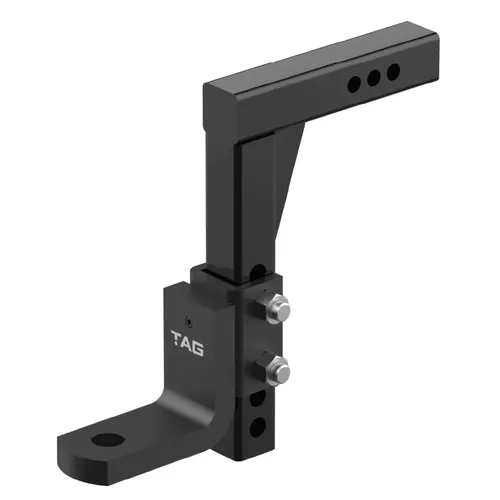

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup.
Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping. (Please note that the finish on the head and shank are different).
Specifications:
-
90° Separate Tongue Face with four adjustable positions.
-

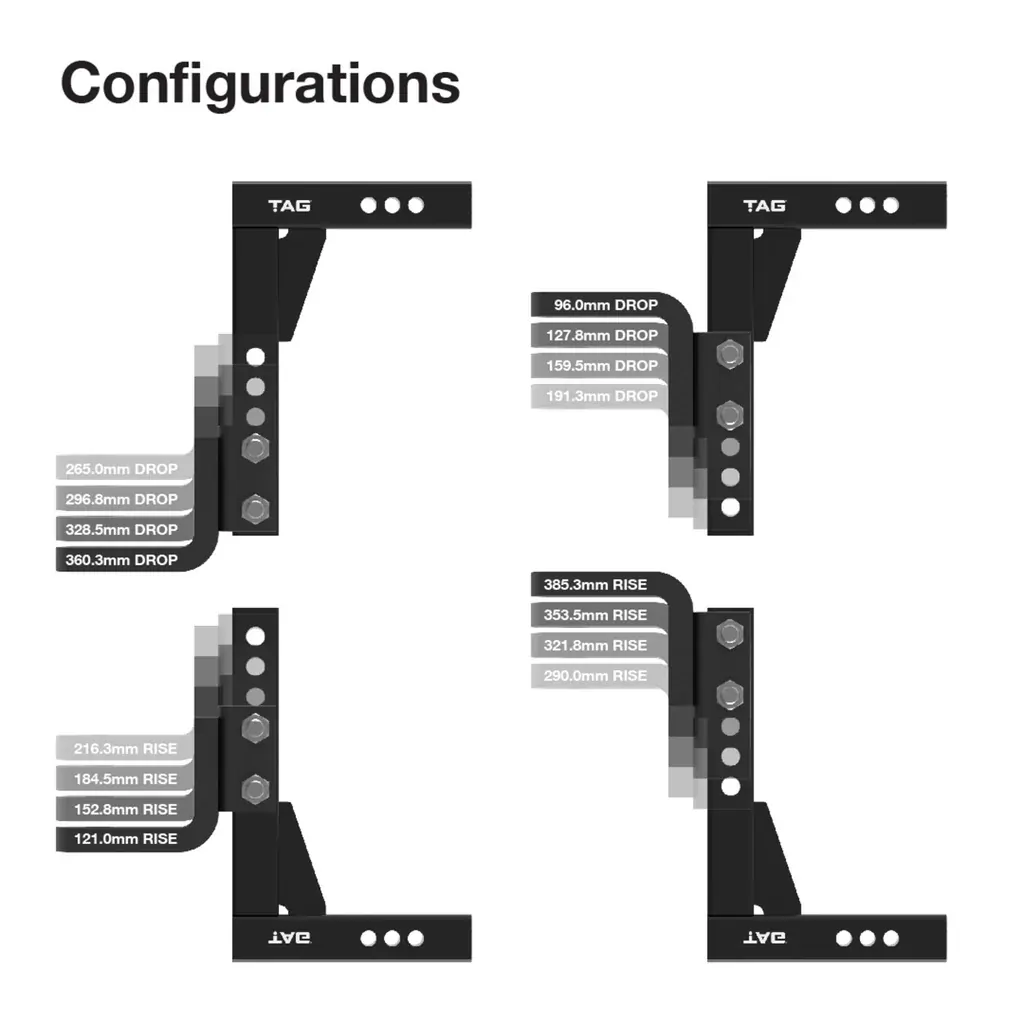

Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
-
Includes reducer bush to suit 50mm or 70mm Towball (Limited to 3500kg)
-
Includes nuts, bolts and washers
-
Gross Trailer 3500kg (50mm Tow Ball)
-
Ball Weight 350kg (50mm Tow Ball)
-
Durable Powder Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
-
Torque: 441nm
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Hitch Type: Heavy Duty 50mm Square

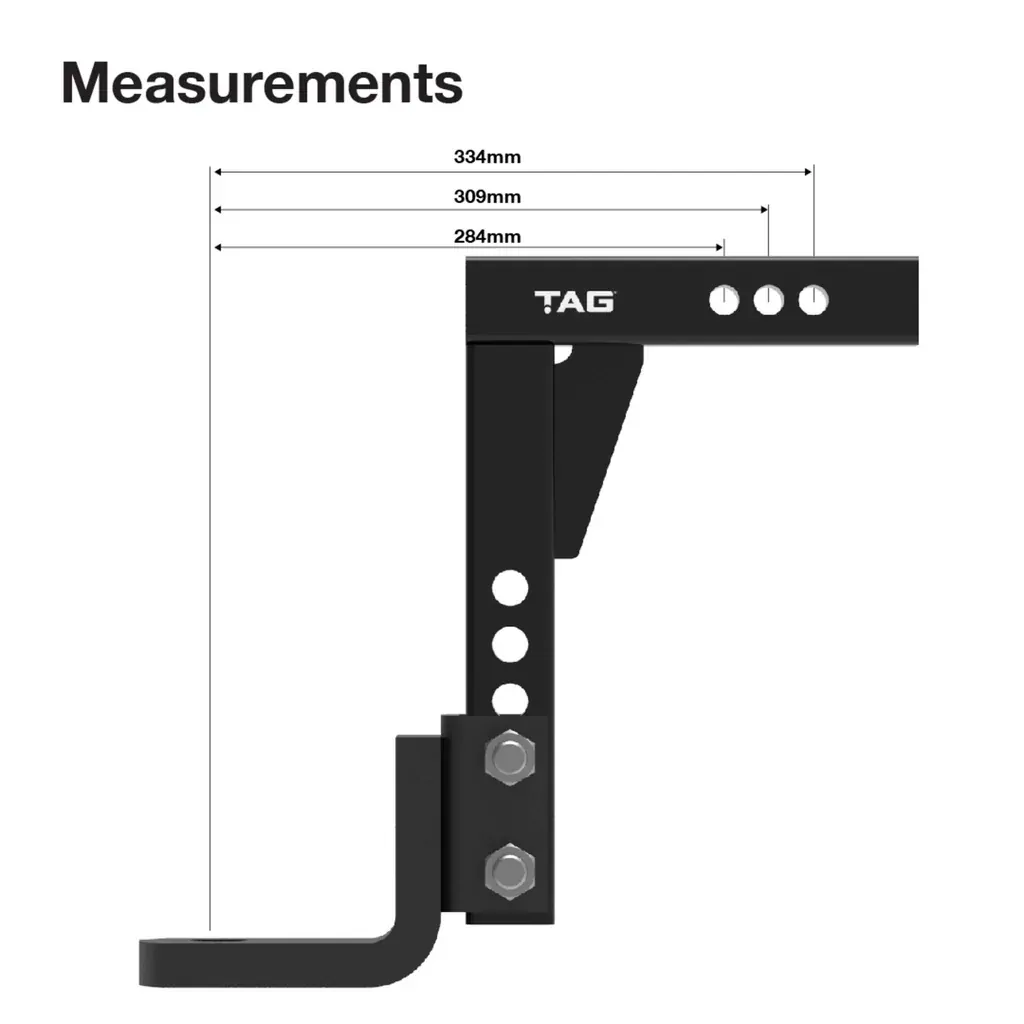

- Drop: 360mm
- Rise: 385
- Coating: Powder Coated
- Towbar Capacity [kg]: 3500
- Adjustable: Adjustable
- Ball Weight [kg]: 350
- Tongue Face: 90°
- Material Type: Solid Steel
- Four-position 90° tongue for flexibility
- Up to 360mm drop for tall trailers
- Up to 385mm rise for low couplers
- Class 4 rating for 3500kg towing
- Solid steel gear built to last
- Smart buy for mixed towing setups
- Tow ball mount class: Heavy Duty (Class 4)
- Hitch type: Heavy Duty 50mm square shank
- Tongue face: 90° separate tongue face
- Adjustment: Four-position adjustable tongue face
- Mount modes: Drop mode or rise mode
- Maximum drop: 360mm
- Maximum rise: 385mm
- Gross trailer weight rating: 3500kg (50mm tow ball)
- Towbar capacity: 3500kg
- Maximum ball weight: 350kg (50mm tow ball)
- Torque specification: 441Nm
- Material: Solid steel construction
- Coating: Durable powder coated finish
- Compliance: ADR 62/02 compliant
- Warranty: TAG limited lifetime warranty
- Includes reducer bush for 50mm or 70mm tow ball
- Includes mounting nuts, bolts and washers
- 50mm square heavy duty adjustable tow ball mount assembly
- 90° separate tongue face with four adjustment positions
- Solid steel shank with multiple pin holes
- Reducer bush to suit 50mm or 70mm tow ball (to 3500kg)
- Mounting hardware including nuts, bolts and washers
| SKU | UNTTBM150 |
|---|---|
| Barcode # | OEBC720997 |
| Brand | TAG |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.072000000m3 |
Download instructions to help you install, use and get the most out of your product.
