Description
| FEATURES |
| • Market leading 20A capability - No more relays. • Durable CNC 316G stainless steel switch with stainless steel or polycarbonate face. • 0.250" quick connect terminals. • Up to 20,000 cycles. • Operating temperature - 20 Degree Celsius - +55 Degree Celsius. • Prewired for easy installation. • IP67 rated. • 1 year warranty |
| Part No. | 530724 |
| Amps | 20 |
| LED | Blue |
| Button | Stainless Steel |
| LED Function | Configurable |
| Cut Out | Dia. 19mm |
| Unit Qty | 1 |
| Volts | 12V |
| Switch | On/Off |
| Dimensions | Dia. 22mm x 37mm |
Features
- 20A switch suits direct 12V loads
- 316G stainless gear for salty water
- IP67 rating ready for wet decks
- Prewired harness for cleaner setups
- Blue LED ring easy to spot
- Compact body fits tight helm space
Specifications
- Brand: Relaxn
- Part number: 530724
- Switch type: On/Off
- Voltage rating: 12V
- Current rating: 20A
- Market leading 20A capability
- LED colour: Blue
- LED function: Configurable
- Button material: 316G stainless steel
- Face material: Stainless steel or polycarbonate
- Connection type: 0.250" quick connect terminals
- Prewired harness included
- Cut-out diameter: 19mm

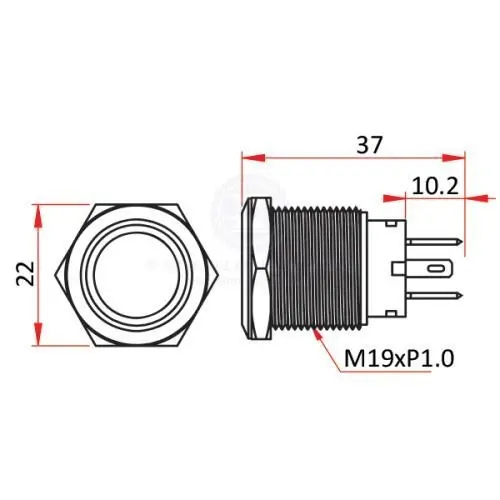

- Overall dimensions: 22mm diameter x 37mm length
- Thread specification: M19 x 1.0
- Operating temperature range: -20°C to +55°C
- Ingress protection rating: IP67
- Cycles: Up to 20,000
- Unit quantity: 1
- Warranty: 1 year

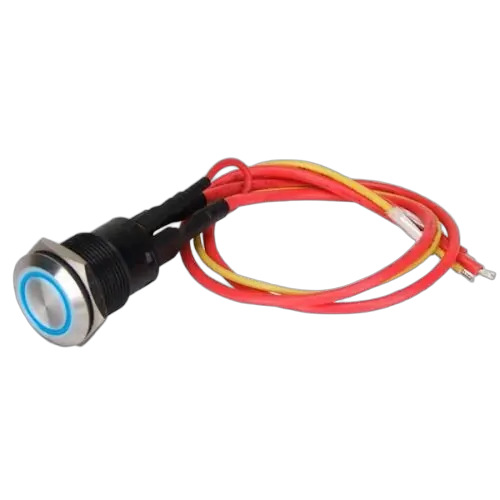

- 1 x Relaxn round stainless steel blue illuminated on/off switch with prewired harness
| SKU | 530724 |
|---|---|
| Barcode # | 9330420195569 |
| Brand | Relaxn |
| Shipping Weight | 1.0000kg |
