| SKu | Description |
| RWB2105 | 6 switch vertical panel 135mm x 190mm |

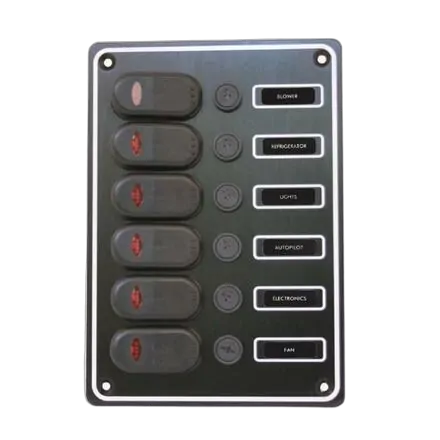

Extremely weather resistant black textured alloy switch panels with LED illuminated rocker switches with weatherproof gaskets.
Each switch is isolated by its own fuse which has an "O" ring seal.
The panels come pre-wired and include a backing gasket, blackened stainless steel fastening screws band a label set which covers the most common accessories.
Suits both 12 and 24 volt systems. Max 21 amp.
Vertical panel in 3 or 6 switch, 4 switch in horizontal configuration.
- Six switches to split circuits
- Rated up to 21 amp total
- Handles both 12V and 24V
- Weatherproof gaskets for marine use
- Pre-wired kit for straightforward wiring
- Blackened stainless screws resist corrosion
- Panel orientation: vertical
- Number of switches: 6
- Panel dimensions: 135mm x 190mm
- Panel material: black textured alloy
- Switch type: LED illuminated rocker switches
- Weather protection: weatherproof gaskets on switches
- Fuse configuration: each switch individually fused
- Fuse sealing: O-ring seal on each fuse
- Wiring: panel supplied pre-wired
- Mounting hardware: blackened stainless steel screws included
- Voltage compatibility: suits 12V systems
- Voltage compatibility: suits 24V systems
- Maximum current rating: 21A
- Included backing: full backing gasket supplied
- Available panel variants: 3 or 6 switch vertical and 4 switch horizontal (range information)
- 1 x weatherproof 6 gang vertical switch panel
- 6 x LED illuminated rocker switches with weatherproof gaskets
- 6 x individual fuses with O-ring seals
- 1 x pre-wired backing gasket
- Blackened stainless steel fastening screws set
- Label set for common accessories
| SKU | RWB2105 |
|---|---|
| Barcode # | 9324608086923 |
| Brand | AAA |
| Shipping Weight | 1.0000kg |
| Assembled Length | 0.100m |
| Assembled Height | 0.080m |
| Assembled Width | 0.100m |

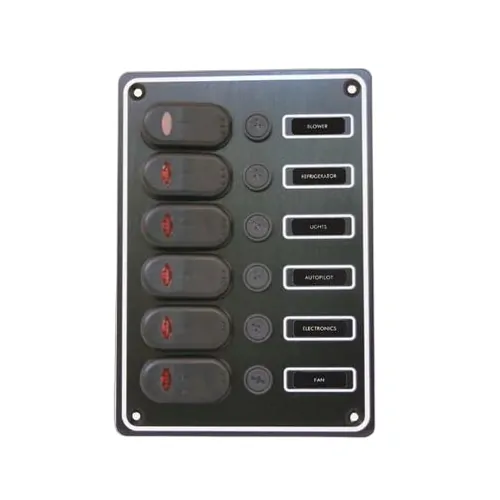

Weatherproof 6 Gang Switch Panel
