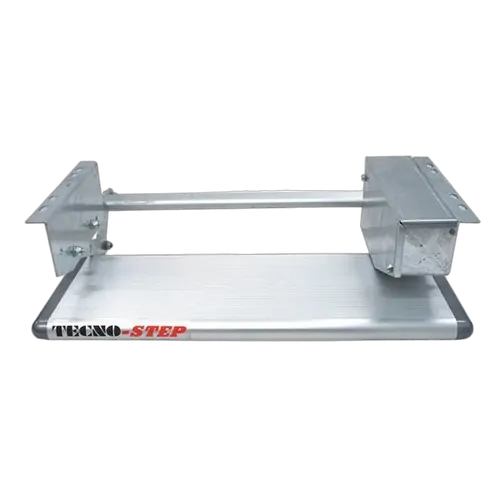

This series of innovative electrical steps are made from galvanised steel for durability & stability.
The footrests are made with anodized aluminium (so they won’t rust) & are spaced at a comfortable height for your convenience. Wiring harness not included and available at extra cost (see 450-02120 or 450-02130).
Wiring harness with auto close on ignition-if you forget to close your step, on ignition of your vehicle, the step will close automatically (see SKU 450-02120). Standard wiring harness with switch- a standard in/out switch which can be installed near the entry to engage or disengage the step(see SKU 450-02130)
Specifications:
- 12V Single Electric Step
- Step Width: 575mm
- Step Tread Depth: 210mm
- Step Weight: 7.8Kg
- Step to Mounting Plate: 197mm
- Maximum Load Weight: 150kg
- motor is located on the RH side as pictured
PLEASE NOTE MOTOR POSITION MAY VARY
- 12V electric step for simple access
- 575mm tread suits wide work boots
- Galvanised steel frame handles grit
- Anodised alloy step shrugs off rust
- 150kg rating suits most touring setups
- Optional harness kits for smart control
- Type: Single electric caravan step
- Voltage: 12V
- Step width: 575mm
- Step tread depth: 210mm
- Step weight: 7.8kg
- Step to mounting plate height: 197mm
- Maximum load weight: 150kg
- Construction: galvanised steel frame
- Footrest material: anodised aluminium
- Motor position: located on right-hand side (may vary)
- Wiring harness: not included
- Suitable application: caravan or RV entry step
- 1 x Nuova Mapa 12V single electric caravan step assembly
| SKU | 450-02100 |
|---|---|
| Barcode # | 450-02100 |
| Brand | Coast to Coast |
| Shipping Weight | 8.0000kg |
