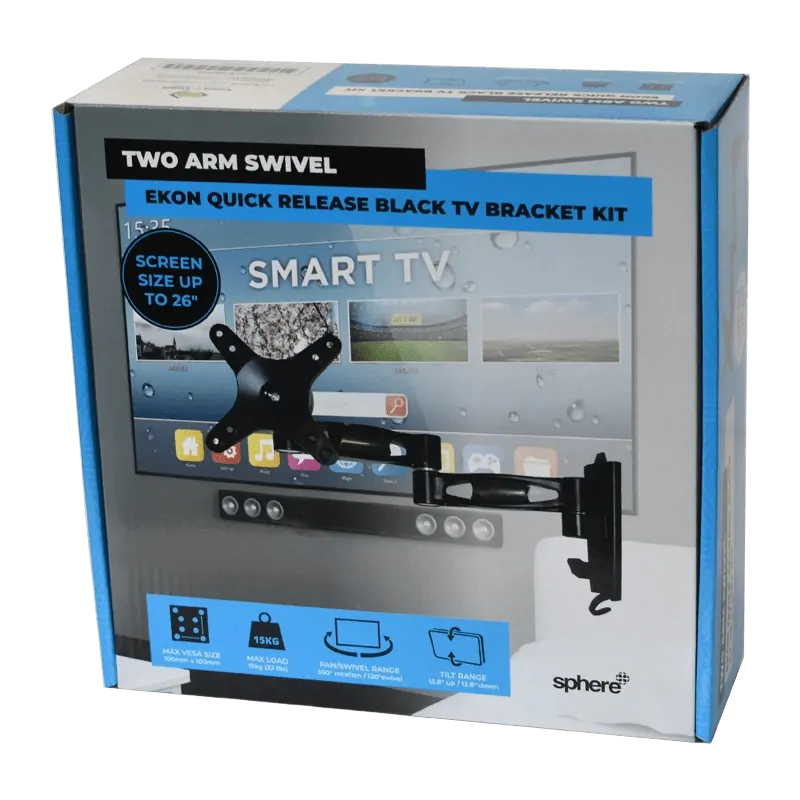

The Sphere Ekon Quick Release Black TV Bracket Kit with two arm swivel holds a TV up to 26 inches and a maximum of 15 kg, so you can mount your screen off the bench and still swing it around where you need it. With 360° rotation and 120° swivel across the arms, you can tackle tight caravan layouts and still line up a clear view from the bed or dinette without shifting other gear. This kit runs a steel bracket in a black finish with a VESA plate up to 100 mm x 100 mm, so it pairs well with common caravan-sized TVs. The quick release mount and pin lock setup keeps the screen in place on corrugated roads but lets you lift it off when you want it packed away. Built in tilt of about 13.8° up and down trims glare, while TV cord clips keep the leads under control on bumpy tracks.

• Sphere Ekon quick release TV bracket kit
• Supports TVs up to 26 inches screen size
• Maximum load capacity rated at 15 kg
• Two arm swivel design for wide viewing range
• Pan range up to 360° rotation at pivot
• Swivel travel approximately 120° across arms
• Tilt range around 13.8° up and 13.8° down
• Suits VESA mounting up to 100 mm x 100 mm
• Pin-lockable bracket helps hold position during travel
• Built in level and TV cord clips included for setup

Q: What size TV will this bracket support?

This bracket supports TVs up to 26 inches with a VESA pattern up to 100 mm x 100 mm. Staying within the 26 inch guideline keeps the arm length and plate size matched to the TV. The VESA limit makes sure the fixing holes line up with the bracket. Always check your TV plate measurement in millimetres before you buy.

Q: What is the maximum weight rating of the bracket?

The maximum load rating is 15 kg. Keeping under 15 kg reduces strain on the arms when the vehicle is moving. A lighter TV will also flex the wall less over rough tracks. Use suitable fixings in a solid wall panel that can handle the combined weight of the TV and bracket.

Q: Can I tilt the TV to reduce glare?

Yes, the bracket offers approximately 13.8° tilt up and 13.8° tilt down. This range lets you angle the screen away from windows or interior lights. The tilt function also helps when the bracket is mounted higher on the wall. Adjust the angle while stationary and then lock it in before driving.

Q: Does the bracket include features to help with installation and cable routing?

Yes, the bracket includes an in built level and TV cord clips. The level helps you line the wall plate up horizontally before you drill. Using the cord clips keeps power and antenna leads close to the arms instead of hanging loose. Neat routing also reduces the chance of cables snagging as the arms move.

Kit suits TVs up to 26 inches with VESA mounting up to 100 mm x 100 mm. Wall bracket mounts to a suitable flat vertical surface that can support 15 kg or more. Bracket is suited to caravan and RV interiors where a swivel and tilt TV position is required. Quick release design allows the TV to be removed from the bracket during travel while the wall plate stays fixed.
