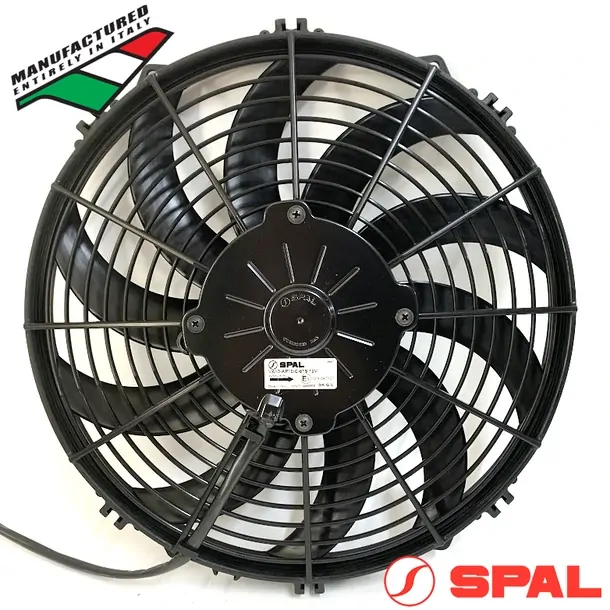

The VA10-AP10/C-61A (EF3532) 12v 12" SPAL Puller Fan is a Low-Profile Thermo Fan featuring a Finger Guard Shroud and a Skew (curved) Blade Design which can pull up to 906cfm / 1540m3/h.
The EF3532 12" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3532 12" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA10-AP10/C-61A |
| U.S. Part # | 30100467 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 12 inch (305mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 6.7 |
| CFM | 906 |
| M3/H | 1540 |
| Spec. Sheet | View Specifications  |
| EF3532 12" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 321mm / 12.64" |
| B | 336mm / 13.23" |
| C | 168mm / 6.61" |
| D | 292mm / 11.5" |
| E | 52mm / 2.05" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
- 12 inch skew blade puller setup
- 906 CFM airflow at 12V supply
- Sealed motor handles dust and spray
- Finger guard shroud around the blade
- Individually balanced for longer service
- Smart buy cooling gear for Aussies
- Brand: SPAL
- Model: VA10-AP10/C-61A
- U.S. part number: 30100467
- Fan type: Low-profile thermo puller fan
- Voltage: 12V
- Current draw: 6.7A
- Airflow: 906 CFM
- Airflow metric: 1540 m3/h
- Blade diameter: 12 inch (305mm)
- Blade type: Skew (curved)
- Shroud type: Finger guard
- Overall dimension A: 321mm
- Overall dimension B: 336mm
- Depth C: 168mm
- Mount circle D: 292mm
- Motor housing depth E: 52mm
- Motor: Fully sealed water and dust-proof
- Balance: Individually balanced fan assembly
- Country of manufacture: Italy
- Stated manufacturer warranty: 3 years
1 x SPAL VA10-AP10/C-61A 12" 12V puller thermo fan with finger guard shroud
| SKU | EF3532 |
|---|---|
| Barcode # | 9316042089882 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.052m |
| Shipping Height | 0.336m |
| Shipping Length | 0.321m |
