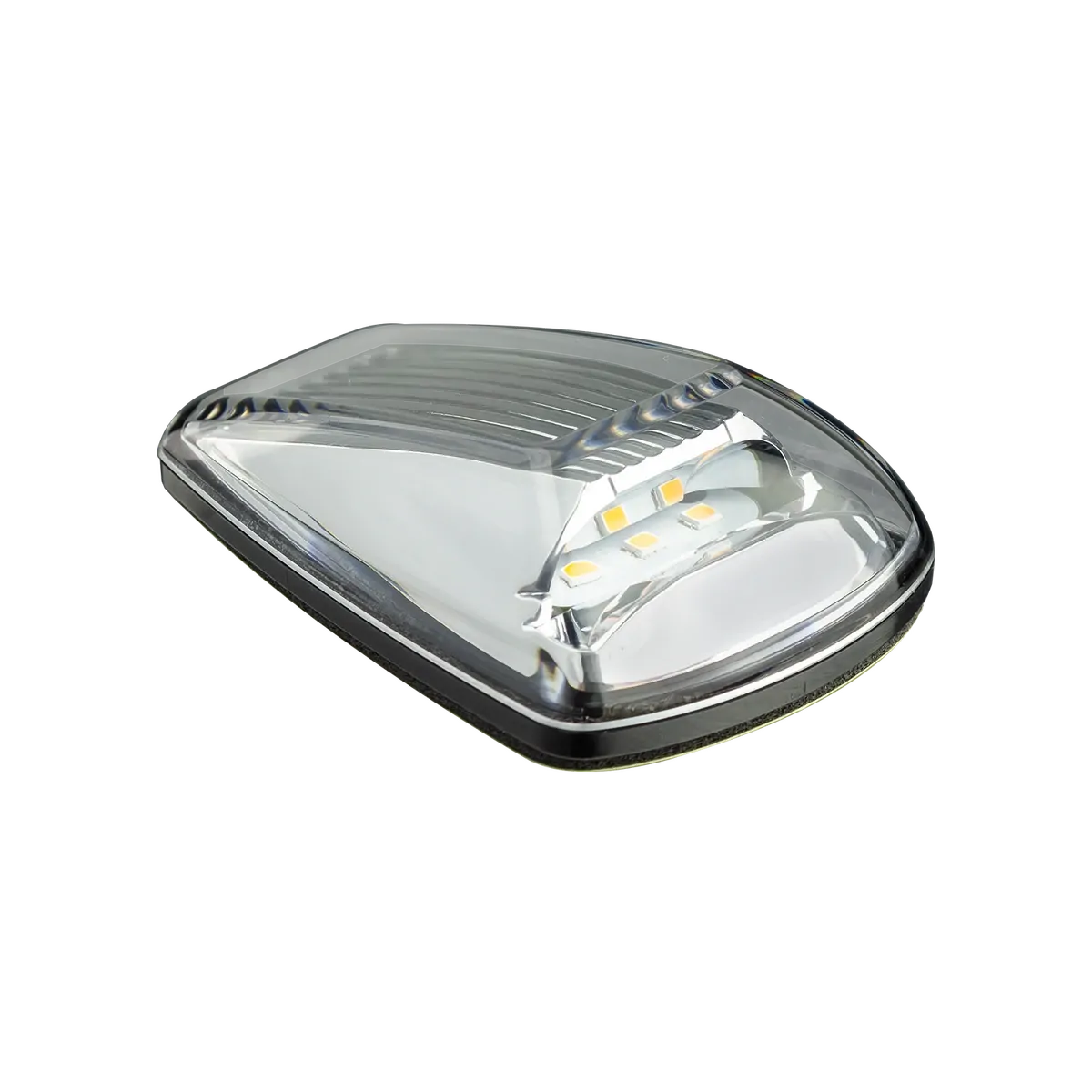

Description
77 Series
77 Series
Features / Specifications
|
Fitting InstructionsLeft or right-hand mountable. Drill a 10mm hole into a flat surface and mount it horizontally to the ground with 3M Tape and a serrated plug. LEDs must be facing the rear of the vehicle. Please refer to ADR 13/00 for mounting instructions. Technical Drawings
|
Features
- Multivolt 12-24V heavy vehicle ready
- Low profile body reduces impact risk
- IP67 waterproof sealing for wash-downs
- 3M tape mount speeds up installs
- Category 6 approved indicator output
- Five year warranty for fleet use
Specifications
- Brand: LED Autolamps
- Series: 77 Series
- Type: Category 6 side direction indicator
- Application: Suitable for vehicle GVM upgrade
- Voltage range: 9-32V DC multivolt
- Stated on pack: Multivolt 12-24V
- Dimensions: 77mm length x 52mm width x 22mm depth
- Lens style: Clear lens low profile compact design
- Waterproof rating: IP67 100% waterproof
- Mounting: 3M self-adhesive tape with serrated plug
- Mounting hole size: 10mm
- Orientation: Horizontal mount with LEDs facing rear of vehicle
- Side: Left or right hand mountable
- Compliance: Category 6 ECE approved
- Warranty: 5 year warranty

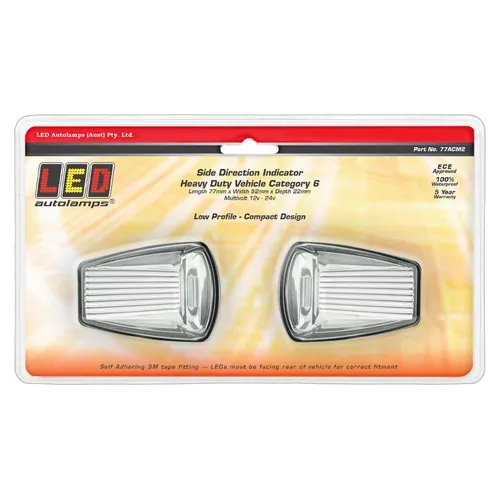

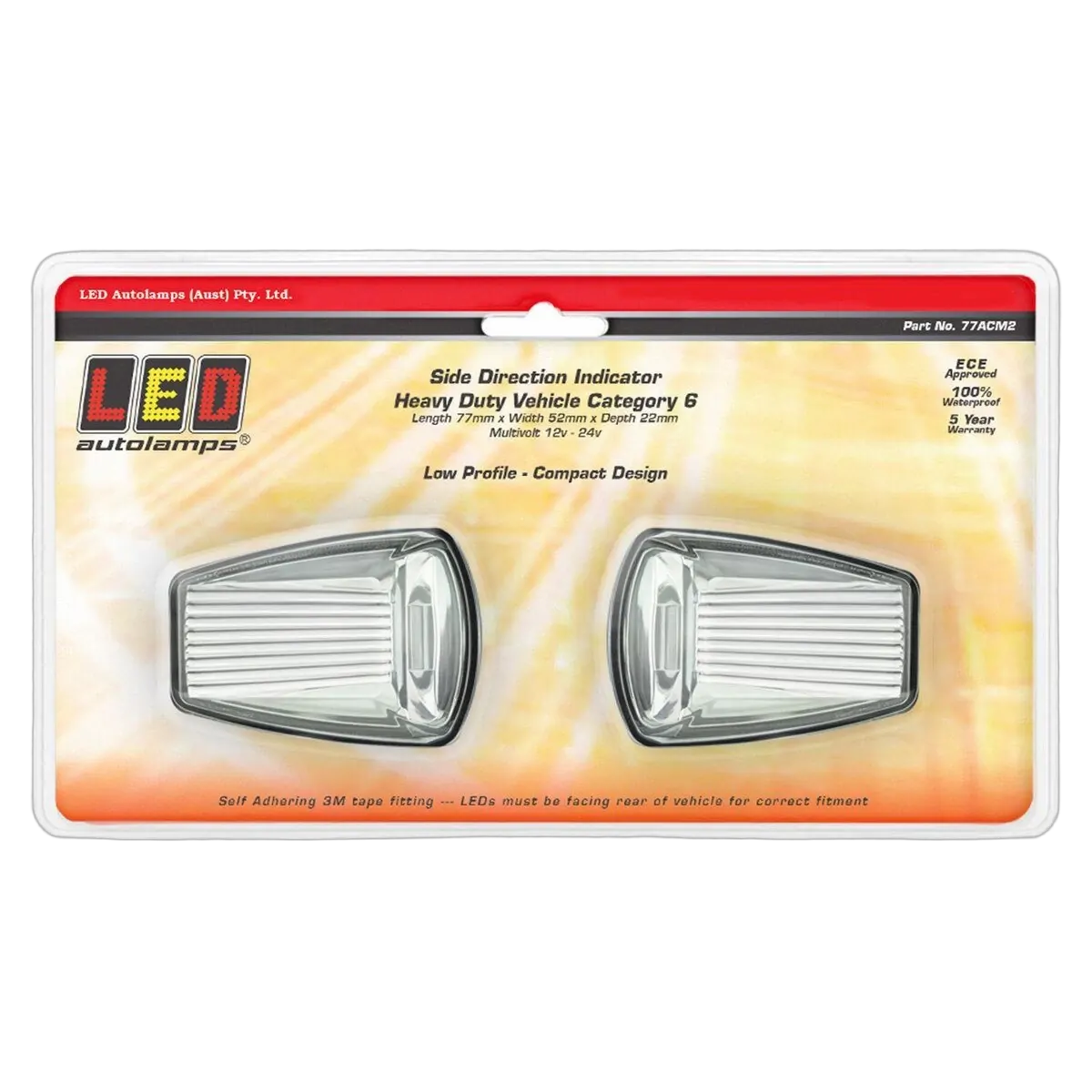

- 2 x LED Autolamps 77 Series side direction indicator lamps
- 1 x twin blister retail pack
| SKU | 77ACM2 |
|---|---|
| Barcode # | 9335962027002 |
| Brand | LED Autolamps |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.245m |
| Shipping Height | 0.145m |
| Shipping Length | 0.060m |
Dispatch in 1-2 weeks
More infoMake 4 payments of $18.00 over 8 weeks and get it now!
Cat6 Side Direction Indicator, Clear Lens, 12 - 24 Volt, 77Mm X 53Mm X 22Mm, Ece Approved, Twin Blister, 5 Year Warranty
