The Scanstrut Flip Pro Multi combines the features of the Flip Pro Max Dual USB-C charger (P03749) and the Flip Pro 12V Power Socket (P03750) into a compact multi-power solution.

The dual USB-C charger is designed for use with either a 12V or 24V DC input and features 2x 60W USB-C charging ports for maximum performance. It can charge at 36W on a 12V system or 60W on a 24V system, providing the fastest charging for modern laptops, large tablets, phones and other USB-C powered devices on board. The 12V power socket takes onboard power delivery to a new level, designed for use with 12V DC systems and featuring an impressive 150W maximum power output.

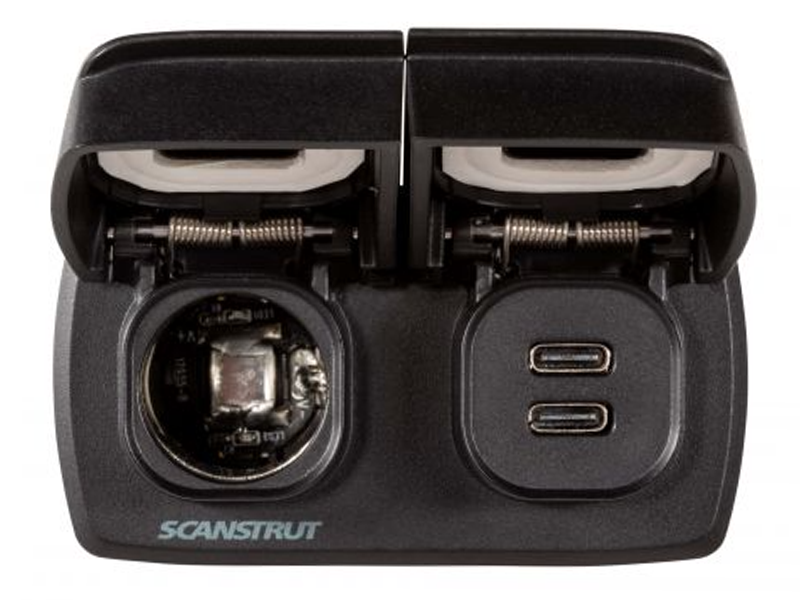

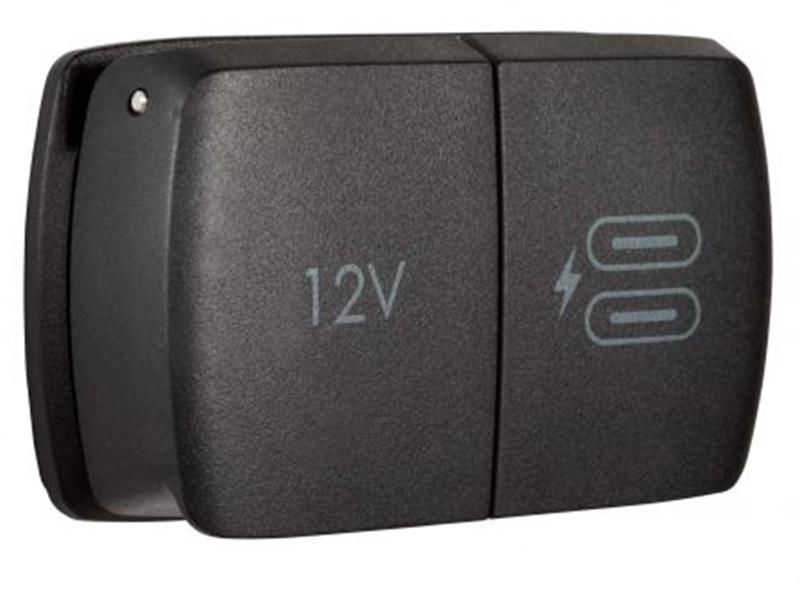

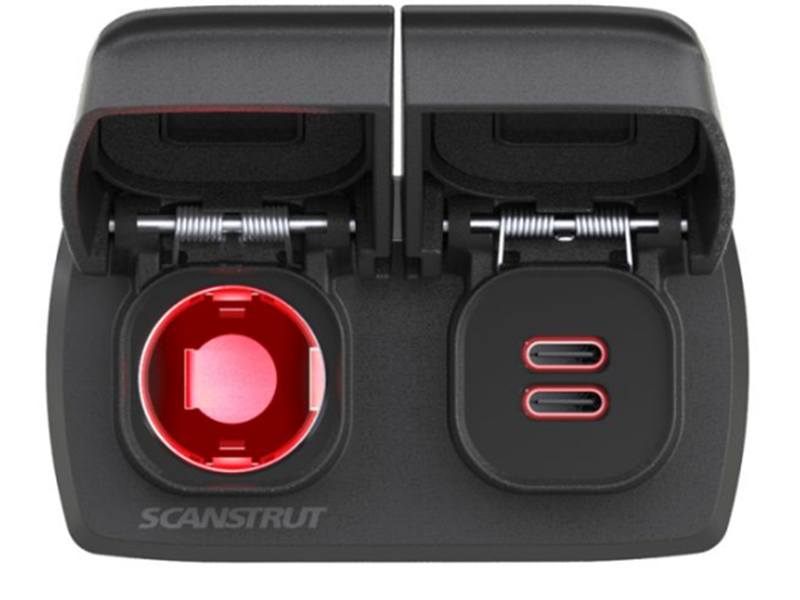

When the USB-C charger or 12V sockets are not in use, the spring-loaded caps remains tightly closed against foam gaskets, protecting the ports & socket from the elements. When in use, the covers are held open by pulling them upwards until they lock in place, protecting your cables from damage. Both USB-C ports and the 12V power socket feature low-intensity red backlights to enable them to be found easily in the dark.

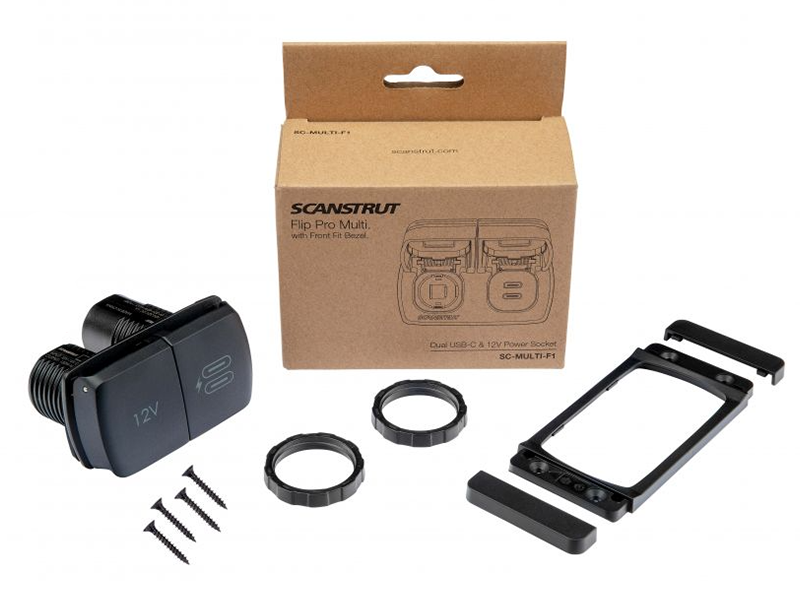

Featuring a compact footprint, the Flip Pro Multi is constructed from marine-grade, UV-resistant and corrosion-resistant materials and is IPX4 waterproof, making it wash-down ready. Installation is straightforward with the unit fitting into standard 32mm panel holes and a foam gasket used to seal against the mounting face. An optional fit bezel and fixings are also supplied.

Input current draw is a maximum of 6A for the USB-C ports and 10A for the 12V power socket with a very low standby power consumption of 0.01W.

Features:

• Universal fit for any USB-C connector and any 12V plug
• Fast charge (60W max) up to 2 devices at a time
• 150W max. 12V power output
• IPX4 waterproof with the covers closed
• Internal anti-corrosion protective coating
• UV resistant
• 316 stainless hinge and spring
• Optional fit bezel supplied
• Easy install, using standard 32mm (1.25") mounting holes

Specifications:

• USB-C power output: 60W max on 24V system, 36W max on 12V system
• USB-C input voltage: 10-32V DC
• USB-C input current: 6A max.
• 12V socket power output:150W max. (12V DC)
• 12V socket input voltage: 10-15V DC
• 12V socket input current: 10A max.
• Standby power draw: 0.01W
• Power connection: 4 x 6.3mm blade terminals
• Overall dims (without bezel - lid open): 80 (W) x 79.7 (L) x 44.1 (H) mm
• Protrusion from mounting surface (lid closed): 20mm approx.
• Protrusion from mounting surface (lid open): 47mm approx.
• Depth required behind mounting surface: 80mm approx.
• Bezel dims: 107.1 (L) x 51.0 (H) mm
• Panel hole size: 32mm
• Max/min panel thickness: 25/3 mm
• Weight: 0.13Kg
• Protection rating: IPX4 front (with lid closed)
