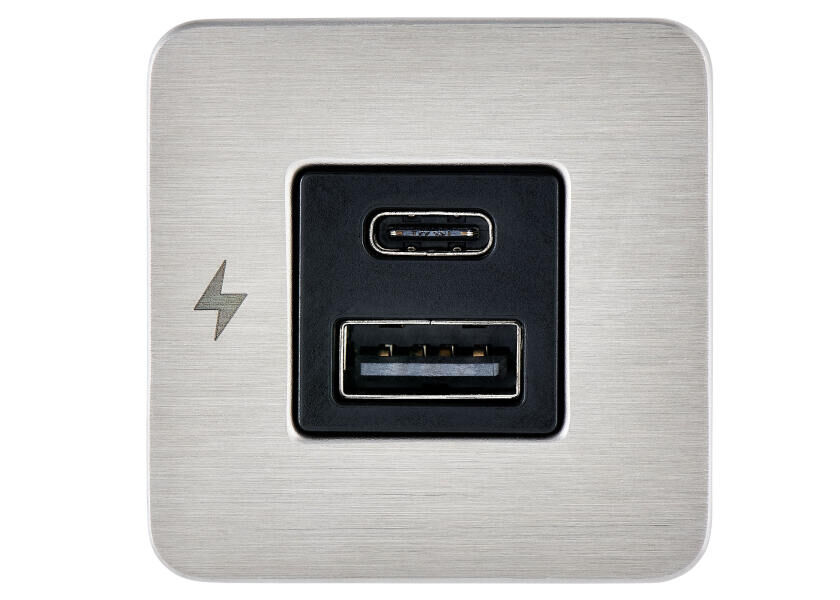

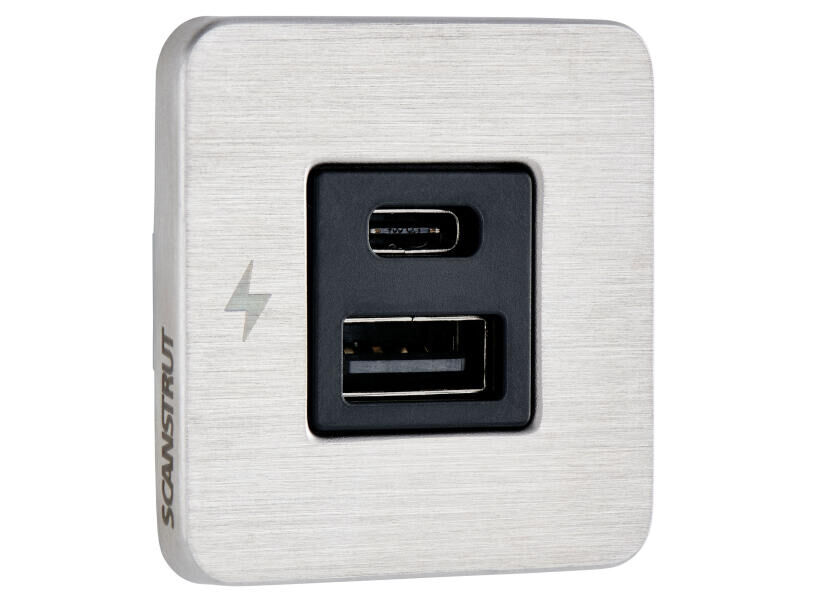

The Scanstrut TILE series offers elegant and powerful charging solutions of up to 36W (at 12V), specifically designed for the interiors of boats. These chargers seamlessly integrate into luxurious marine environments. The TILE 11 features a stainless steel housing and includes a USB-A and a USB-C port. With its compact dimensions of 40 mm (1.57 inches) and easy installation using a 29 mm (1.14 inches) hole saw, the TILE Series combines practical usability with elegant design. It is the perfect choice to enhance the interior of your boat. Enrich your onboard space with this thoughtful and stylish solution for charging your everyday devices.
Features
- Extremely flat profile and compact dimensions of 40 mm (1.57 inches) for a seamless appearance.
- Easy installation, requiring only a 29 mm (1.14 inches) hole saw for uncomplicated mounting.
- USB-A and USB-C ports enable charging of a variety of devices.
- 12V system: Up to 36W
24V system: Up to 60W - Coated electronics protect against damp.
- Compact design saves space without compromising performance.
- Perfect for maritime environments due to robust and wet-resistant construction.
Important Information
To maximise charging performance, use the cable provided with your tablet, phone, etc. Phones charge at the same speed on a 12V or 24V system, but a 24V system must be used to achieve the full 60W output required for laptops.
Scanstrut TILE USB products are intended for indoor use only. Do not install them in locations where water contact is possible, as this may lead to product failure.
Technical data
| Input voltage: | 10-32 V DC (12/24 V recommended) |
| Input current: | Max. 6A (10A fuse recommended) |
| Output Type C: | 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX |
| Output Type A: | 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX |
| Standby Consumption: | 0.01 W |
| Certifications: | CE, FCC, UKCA, C-Tick, ROHS, WEEE |
- Smart kit for cabin charging
- 40 mm face saves dash space
- Handles 10–32 V boat power
- Up to 60 W for laptops
- Stainless bezel built tough
- Low standby draw protects batteries
- Input voltage range: 10–32 V DC (suits 12 V and 24 V systems)
- Maximum input current: 6 A (10 A fuse recommended)
- USB-C output 12 V system: 5 V 3 A, 9 V 3 A, 12 V 3 A max
- USB-C output 24 V system: 5 V 3 A, 9 V 3 A, 12 V 3 A, 15 V 3 A, 20 V 3 A max
- USB-A output 12 V system: 5 V 3 A, 9 V 3 A, 12 V 3 A max
- USB-A output 24 V system: 5 V 3 A, 9 V 3 A, 12 V 3 A, 15 V 3 A, 20 V 3 A max
- Power output: up to 36 W on 12 V systems and 60 W on 24 V systems
- Front tile dimensions: 40 mm square (1.57 inches)
- Mounting hole size: 29 mm diameter (1.14 inches)
- Standby power consumption: 0.01 W
- Housing material: stainless steel front with coated internal electronics
- Installation location: interior only, not for wet areas or direct water contact
- Certifications: CE, FCC, UKCA, C-Tick, RoHS, WEEE
- Profile: extremely flat front profile for low‑profile mounting
- Application: interior charging for phones, tablets and compatible laptops on boats

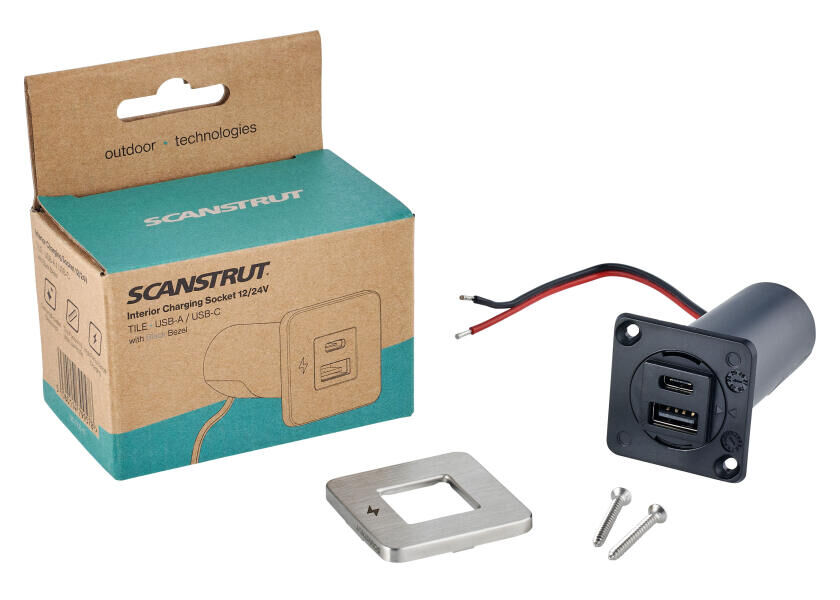

- 1 x Scanstrut TILE 11 interior USB-A / USB-C charging socket
- 1 x stainless steel bezel / faceplate
- 2 x mounting screws
| SKU | 110717 |
|---|---|
| Barcode # | 5060114799585 |
| Brand | Scanstrut |
| Shipping Weight | 0.5000kg |
