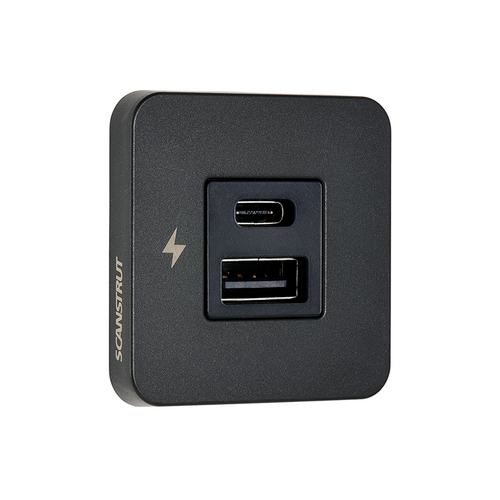

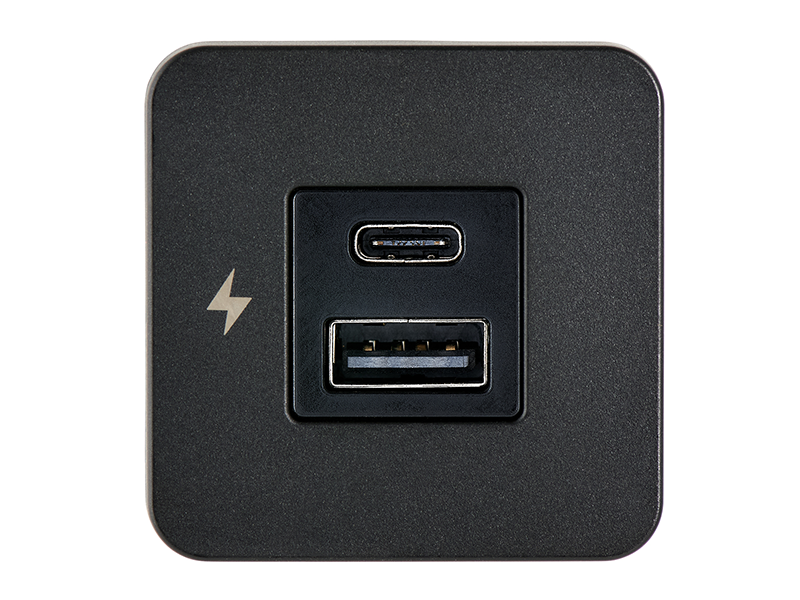

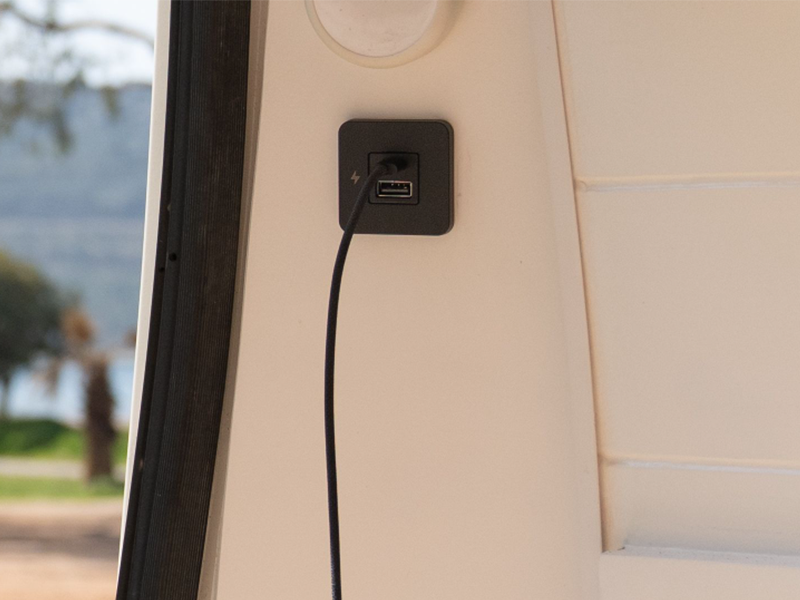

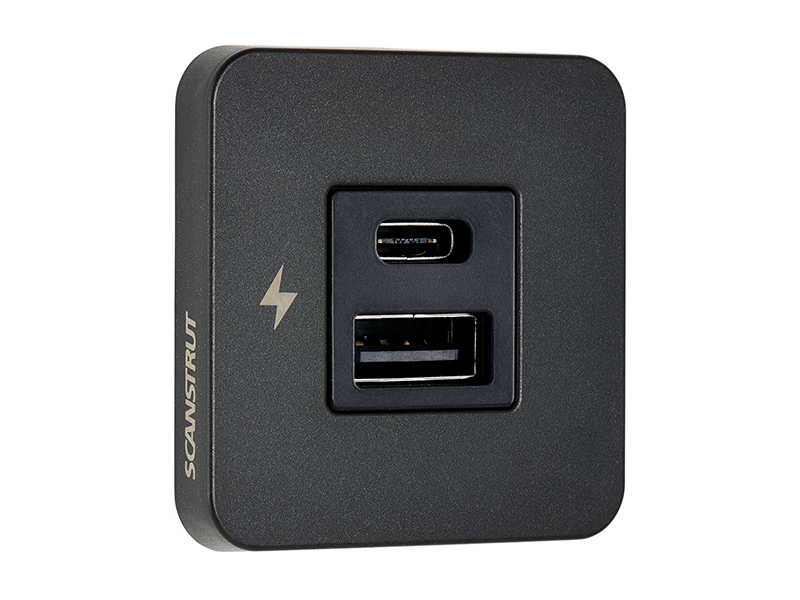

The Scanstrut TILE Series offers sleek, high-performance USB charging designed specifically for marine or vehicle interiors. These chargers blend seamlessly into luxury environments and are an ideal way to modernise your boat, campervan, motorhome, or caravan interior. The USB-C port can provide 36W on a 12V system or 60W on a 24V system, making the SC-TILE-10 with black bezel perfect for charging modern laptops and large tablets, phones, and any other USB-A & USB-C powered devices onboard.
Featuring a compact 40mm footprint and requiring just a 29mm hole saw for easy installation, the TILE Series combines functionality and style, offering a practical but sophisticated solution for charging your everyday devices. The TILE has been deliberately designed without illumination to avoid unwanted night time light.
Features
- Works with 12V or 24V systems
- USB-A and USB-C ports
- Fast charge 2 devices simultaneously
- High power - 36W (12V system) & 60W (24V system)
- Non-illuminated (no distracting light at night)
- Ultra-low profile, matt black plastic bezel
- Easy, front-fit installation
- Conformal coated electronics protect against moisture
- Standard 29mm panel hole fitment
- Modernise your boat or vehicle interior
Further information
- To maximise charge performance, use the cable supplied with your tablet, phone etc. (e.g. USB-C to USB-C, or USB-C to Apple lightning). Devices charge at the same speed on either a 12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
- Fitted with 1mm² cable tails - 10A fuse recommended.
- TILE USB products are designed for interior use only. Do not install in locations where water exposure is possible, as this may lead to product failure.
Specifications
- Input voltage: 10-30V DC (12/24V systems)
- Input current: 6A max. (10A fuse recommended)
- USB-A output @ 12V: 5V-3A, 9V-3A, 12V-3A max.
- USB-A output @ 24V: 5V-3A, 9V-3A, 12V-3A max.
- USB-C output @ 12V: 5V-3A, 9V-3A, 12V-3A max.
- USB-C output @ 24V: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3A max.
- USB-C max. power: 36W on a 12V system, 60W on a 24V system
- Charging protocols: QC3 (USB-A), PD4 QC3 (USB-C)
- Standby power consumption: <0.1W
- Connection: 1mm² (18AWG) flying leads, 150mm long
- Panel hole required: 29mm
- Overall dimensions: 66.5 (L) x 43 (W) x 43 (H) mm
- Dimensions of visible facia when mounted: 43 (W) x 43 (H) x 6.2mm (D)
- Min. depth required behind mounting surface: 65mm (approx.)
- Min. thickness of mounting surface: 3mm
- Certification: CE, FCC, UKCA, C-Tick, ROHS, WEE, UN ECE R10
- Dual-port USB keeps key gear powered
- 36W or 60W USB-C for bigger devices
- Compact 29mm mount suits crowded panels
- Matt black bezel matches modern fitouts
- Conformal coated guts handle cabin moisture
- Low standby draw protects house batteries
- Input voltage: 10–30V DC for 12V or 24V systems
- Maximum input current: 6A (10A fuse recommended)
- USB-A output @ 12V: 5V-3A, 9V-3A, 12V-3A max
- USB-A output @ 24V: 5V-3A, 9V-3A, 12V-3A max
- USB-C output @ 12V: 5V-3A, 9V-3A, 12V-3A max
- USB-C output @ 24V: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3A max
- USB-C maximum power: 36W on 12V system, 60W on 24V system
- Charging protocols: QC3 (USB-A), PD4 QC3 (USB-C)
- Standby power consumption: <0.1W
- Connection: 1mm² (18AWG) flying leads, 150mm long
- Required panel hole diameter: 29mm
- Overall dimensions: 66.5 (L) x 43 (W) x 43 (H) mm
- Visible fascia dimensions: 43 (W) x 43 (H) x 6.2 (D) mm
- Minimum depth behind mounting surface: 65mm (approx.)
- Minimum mounting surface thickness: 3mm
- Footprint diameter: 40mm
- Bezel material and finish: ultra-low profile matt black plastic
- Operating location: interior use only
- Moisture protection: conformal coated electronics
- Illumination: non-illuminated to avoid night-time light
- Certification: CE, FCC, UKCA, C-Tick, RoHS, WEE, UN ECE R10
- Scanstrut TILE interior USB-A / USB-C charge socket module
- Matt black plastic TILE bezel
- Two mounting screws
- Pre-wired 1mm² (18AWG) flying lead tails (approx. 150mm long)
| SKU | 110716 |
|---|---|
| Barcode # | 5060114799578 |
| Brand | Scanstrut |
| Shipping Weight | 0.5000kg |
