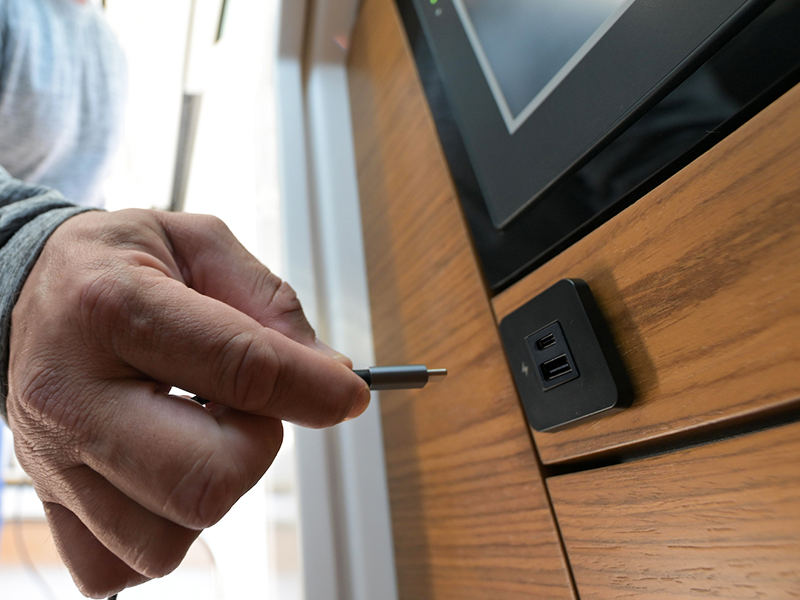

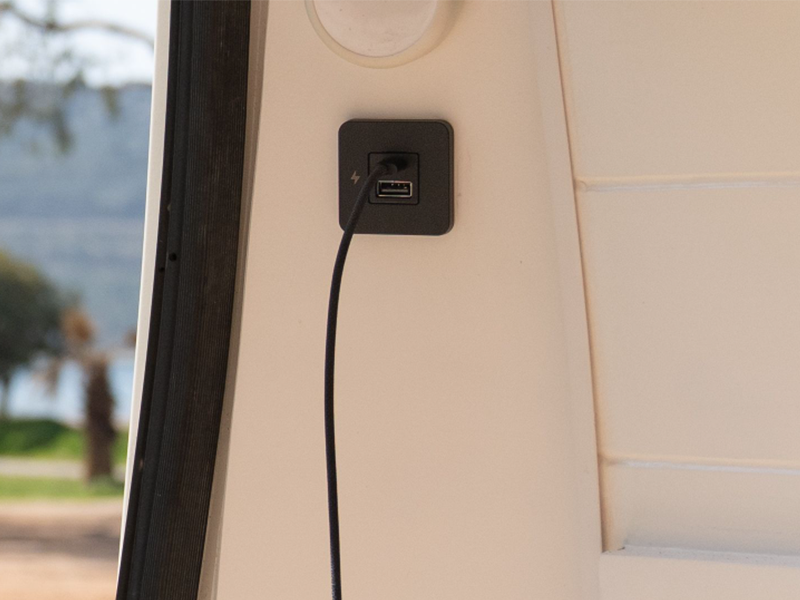

The Scanstrut TILE Series offers sleek, high-performance USB charging designed specifically for marine or vehicle interiors. These chargers blend seamlessly into luxury environments and are an ideal way to modernise your boat, campervan, motorhome, or caravan interior. The USB-C ports can provide 36W on a 12V system or 60W on a 24V system, making the SC-TILE-20 with black bezel perfect for charging modern laptops and large tablets, phones, and any other USB-C powered devices onboard.
Featuring a compact 40mm footprint and requiring just a 29mm hole saw for easy installation, the TILE Series combines functionality and style, offering a practical but sophisticated solution for charging your everyday devices. The TILE has been deliberately designed without illumination to avoid unwanted night time light.
Features
- Works with 12V or 24V systems
- Twin USB-C ports
- Fast charge 2 devices simultaneously
- High power - 36W (12V system) & 60W (24V system) total
- Non-illuminated (no distracting light at night)
- Ultra-low profile, matt black plastic bezel
- Easy, front-fit installation
- Conformal coated electronics protect against moisture
- Standard 29mm panel hole fitment
- Modernise your boat or vehicle interior
Further information
- To maximise charge performance, use the cable supplied with your tablet, phone etc. (e.g. USB-C to USB-C, or USB-C to Apple lightning). Devices charge at the same speed on either a 12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
- Fitted with 1mm² cable tails - 10A fuse recommended.
- TILE USB products are designed for interior use only. Do not install in locations where water exposure is possible, as this may lead to product failure.
Specifications
- Input voltage: 10-30V DC (12/24V systems)
- Input current: 6A max. (10A fuse recommended)
- USB-C output @ 12V: 5V-3A, 9V-3A, 12V-3A max.
- USB-C output @ 24V: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3A max.
- USB-C max. power: 36W on a 12V system, 60W on a 24V system
- Charging protocols: PD4 QC3 (USB-C)
- Standby power consumption: <0.1W
- Connection: 1mm² (18AWG) flying leads, 150mm long
- Panel hole required: 29mm
- Overall dimensions: 66.5 (L) x 43 (W) x 43 (H) mm
- Dimensions of visible facia when mounted: 43 (W) x 43 (H) x 6.2mm (D)
- Min. depth required behind mounting surface: 65mm (approx.)
- Min. thickness of mounting surface: 3mm
- Certification: CE, FCC, UKCA, C-Tick, ROHS, WEE, UN ECE R10
- Proven USB-C charging for cabins
- Built tough for Aussie touring interiors
- Great value upgrade for older vans
- Twin ports keep two devices powered
- Simple wiring with 1mm² flying leads
- Low-profile bezel suits tight spaces
- Input voltage: 10–30V DC for 12V and 24V systems
- Input current: 6A max with 10A fuse recommended
- USB-C output at 12V: 5V 3A, 9V 3A, 12V 3A max
- USB-C output at 24V: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A max
- Total USB-C power: 36W on 12V system and 60W on 24V system
- Charging protocols supported: PD4 and QC3 over USB-C
- Standby power consumption: less than 0.1W
- Connection type: 1mm² (18AWG) flying leads, 150mm long
- Panel hole required: 29mm diameter
- Overall body dimensions: 66.5mm (L) x 43mm (W) x 43mm (H)
- Visible fascia dimensions when mounted: 43mm (W) x 43mm (H) x 6.2mm (D)
- Minimum depth required behind mounting surface: approximately 65mm
- Minimum mounting surface thickness: 3mm
- Bezel finish: ultra-low profile matt black plastic
- USB ports: twin USB-C
- Suitable installation locations: interior marine or vehicle cabins only
- Recommended fuse rating: 10A
- Certifications: CE FCC UKCA C-Tick RoHS WEE UN ECE R10
- Scanstrut TILE interior dual USB-C charge socket module
- Matt black plastic bezel
- 2 mounting screws
| SKU | 110718 |
|---|---|
| Barcode # | 5060114799592 |
| Brand | Scanstrut |
| Shipping Weight | 0.5000kg |

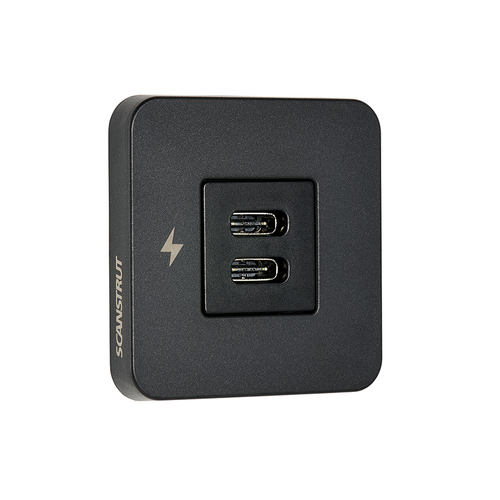

Scanstrut Charge Socket Tile Interior Dual Usb C 12/24V Blk
