Description
Scanstrut premium IP68 waterproof cable seal provides easy fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.
Features:
- Watertight installation - 100% waterproof with an IP68 rating
- Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
- No Need to Remove Cable Connectors - split-seal option does not require connector removal during install.
- Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.
Technical Specifications:

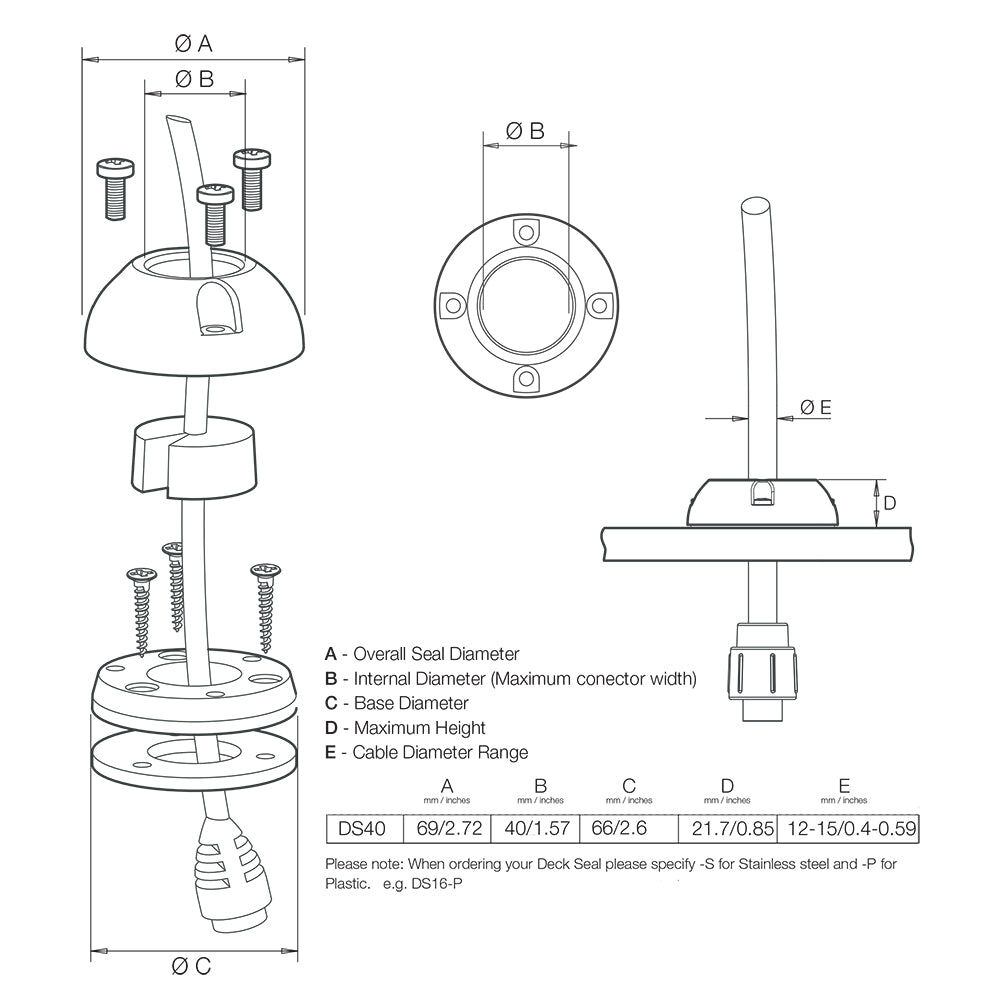

- Fits cable size (diameter) - .4" to .59" (12 - 15 mm)
- Fits connector size up to 1.57" (40 mm) in diameter
- Height - .85" (20.5 mm)
- Color - Stainless
- Orientation - Vertical
- Material - Stainless Steel
In the Box:
- Cable seal
- Mounting hardware
- Installation manual
*Sold as an Individual
Specifications:
- Type: Deck Seal
- Box Dimensions: 1"H x 4"W x 6"L WT: 1 lbs
Features
- Proven IP68 cable sealing on deck
- Suits 12-15mm antenna and nav cables
- Takes 40mm plugs without removal
- Stainless gear made to last at sea
- Low dome profile handles foot traffic
- Supplied inserts cover standard cable sizes
Specifications
- Type: Deck seal
- Waterproof rating: IP68
- Cable diameter range: 12 mm to 15 mm (0.4" to 0.59")
- Maximum connector diameter: 40 mm (1.57")
- Overall height: 20.5 mm (0.85")
- Orientation: Vertical
- Material: Stainless steel
- Colour: Stainless
- Box dimensions: 1" H x 4" W x 6" L
- Box weight: 1 lb
- Cable seal
- Mounting hardware
- Installation manual
| SKU | 115709 |
|---|---|
| Barcode # | 5060114792838 |
| Brand | Scanstrut |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.102m |
| Shipping Height | 0.025m |
| Shipping Length | 0.152m |
Scanstrut Cable Seal DS40S 12-15mm Cable 40mm Plug Ss
SKU: 115709
Sale price
REG $199.90
SALE ENDS
Dispatch in 7 days
More infoMake 4 payments of $43.75 over 8 weeks and get it now!
Calculate Shipping
Description
Scanstrut premium IP68 waterproof cable seal provides easy fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.
Features:
- Watertight installation - 100% waterproof with an IP68 rating
- Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
- No Need to Remove Cable Connectors - split-seal option does not require connector removal during install.
- Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.
Technical Specifications:
- Fits cable size (diameter) - .4" to .59" (12 - 15 mm)
- Fits connector size up to 1.57" (40 mm) in diameter
- Height - .85" (20.5 mm)
- Color - Stainless
- Orientation - Vertical
- Material - Stainless Steel
In the Box:
- Cable seal
- Mounting hardware
- Installation manual
*Sold as an Individual
Specifications:
- Type: Deck Seal
- Box Dimensions: 1"H x 4"W x 6"L WT: 1 lbs
Features
- Proven IP68 cable sealing on deck
- Suits 12-15mm antenna and nav cables
- Takes 40mm plugs without removal
- Stainless gear made to last at sea
- Low dome profile handles foot traffic
- Supplied inserts cover standard cable sizes
Specifications
- Type: Deck seal
- Waterproof rating: IP68
- Cable diameter range: 12 mm to 15 mm (0.4" to 0.59")
- Maximum connector diameter: 40 mm (1.57")
- Overall height: 20.5 mm (0.85")
- Orientation: Vertical
- Material: Stainless steel
- Colour: Stainless
- Box dimensions: 1" H x 4" W x 6" L
- Box weight: 1 lb
- Cable seal
- Mounting hardware
- Installation manual
| SKU | 115709 |
|---|---|
| Barcode # | 5060114792838 |
| Brand | Scanstrut |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.102m |
| Shipping Height | 0.025m |
| Shipping Length | 0.152m |
