SCANSTRUT DS40-P Cable Seal – Grey. The SCANSTRUT DS40-P Cable Seal keeps your cables secure. For cables from 12-15mm (0.47″-0.59″), connectors up to Ø40mm (1.57″), with an aesthetic dome-shaped profile. It provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.
Tapered bung forms a watertight seal. All units are supplied with a closed-cell base seal – 100% waterproof. All models have been IP68 tested and approved.
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split-seal option does not require connector removal during install.
FEATURES AND BENEFITS:
- Available in Black or Grey
- Watertight installation
- Easy and reliable installation
- No need to remove cable connectors
- Multi-Functional Dome shape
SPECIFICATIONS:
- Colour: Grey
- For cables from 12-15mm (0.47″-0.59″)
- For connectors up to Ø40mm (1.57″)
WHAT IS INCLUDED:
- 1 x SCANSTRUT DS40-P Cable Seal – Grey
- Dome housing protects deck cable entries
- Works with 12–15 mm cable sizes
- Accepts connectors up to 40 mm
- IP68-tested seal suits wet conditions
- Captive nuts make reassembly straightforward
- Supplied inserts suit different cable layouts
- Colour: Grey
- Cable size compatibility: 12–15 mm (0.47–0.59 inch)
- Maximum connector diameter: 40 mm (1.57 inch)
- Seal type: Tapered bung with closed-cell base seal
- Ingress protection rating: IP68 tested and approved
- Supplied inner seals: Pre-drilled and blank options

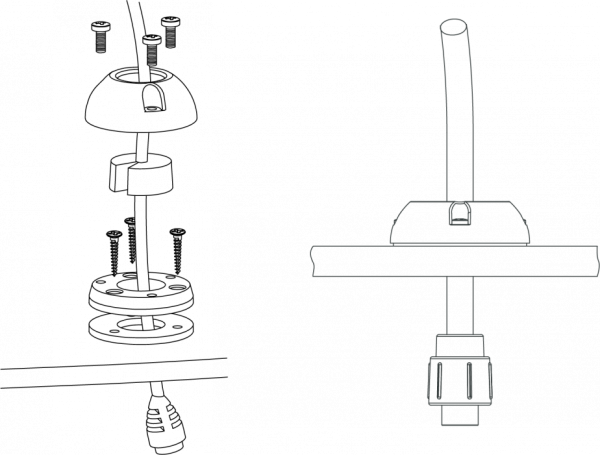

- Installation style: Dome-shaped through-deck cable seal with captive nuts
- Installation option: Split-seal variant does not require connector removal
1 x Scanstrut DS40-P Cable Seal – Grey
| SKU | 115706 |
|---|---|
| Barcode # | 5060114792821 |
| Brand | Scanstrut |
| Shipping Weight | 0.5000kg |
