Say goodbye to gruelling manual pumps and low-quality 12V plug-ins at home or the dock, this beautifully designed, in-built air station is here to maximize quality time on the water.
ATMOS, by Scanstrut, will revolutionize your family’s boating experience. Say goodbye to gruelling manual pumps and low-quality 12V plug-ins at home or the dock, this beautifully designed, in-built air station is here to maximize quality time on the water.
At the push of a button, ATMOS is ready to inflate your paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work.
Featuring next-gen air pump technology to provide fast, effortless inflation (and deflation) for your on-water toys. Compact and shallow, ATMOS fits into almost any panel on board such as seating, consoles, or near the swim platform. Now you have ready-to-go air, right where it’s needed, for even more family fun on the water.

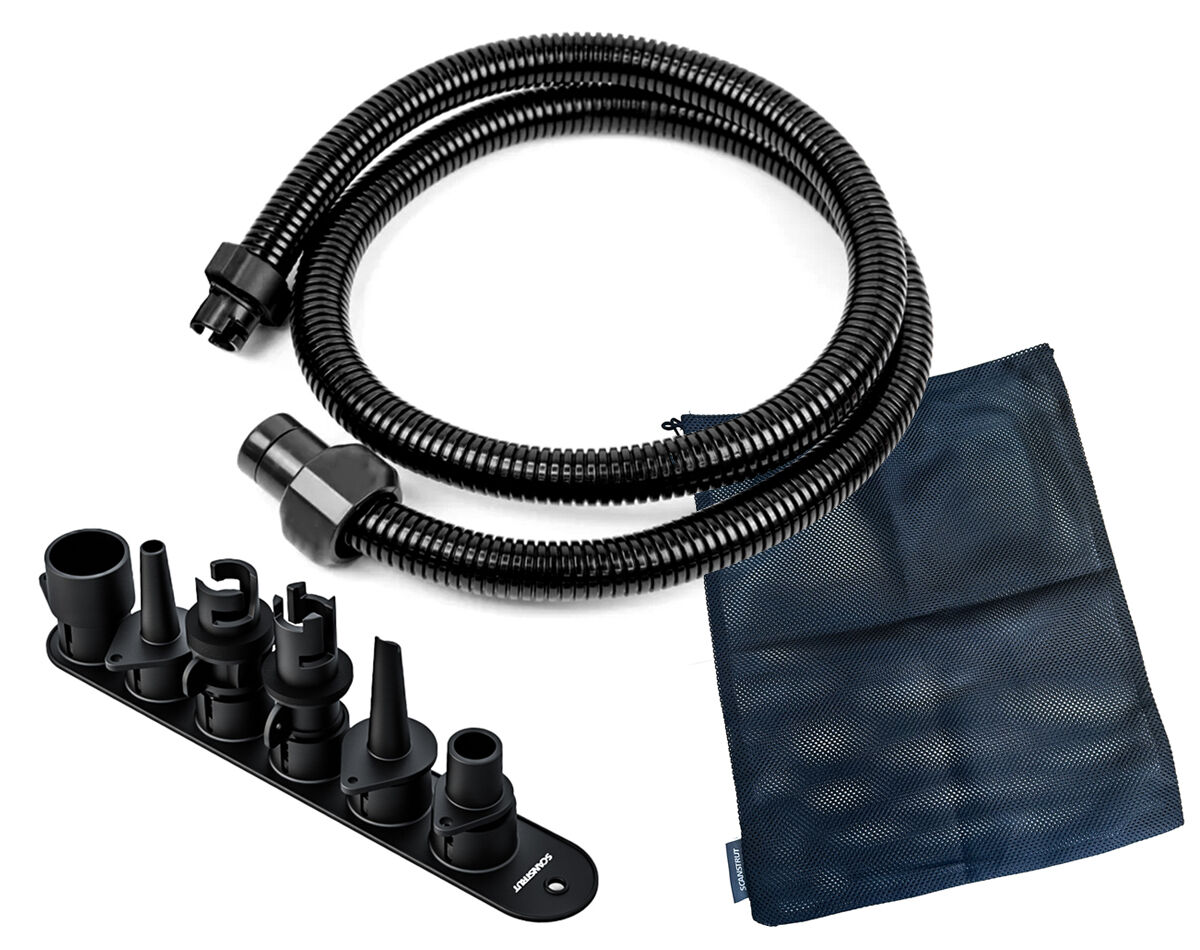

What’s in the Box:
1x ATMOS
1x Cutting template
1x Hose (Length: 2.5m)
6x Connectors (Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves & 805 Valve)
1x Hose/ connectors storage net bag
Product Features:
- 12V
- IPX6 Waterproof front and back
- Inflates (and deflates) SUPS, Towables and more
- Inflate and deflate ports
- Max pressure 20PSI / 1.37 Bar
- PSI or BAR
- Marine grade two stage pump
- LCD display
- Soft non-slip touch buttons
- Supplied with 2.5 (8ft) hose & 6 different connectors
- Compact and shallow
- Easy Install into any panel
- Foam gasket included
- Self-tapping screws or bolts not included
- Certified and tested
- Includes sun cover
- Ignition Protection - ISO 8846 and SAE J1171
- 2-year product warranty.
For more features and installation guides, see the Resources tab.
| Input Voltage: | 12V battery system |
|---|---|
| Max Current Draw: | 12A (140W) |
| Standby Current Draw: | 0.2W max |
| Max Pressure: | 20 PSI / 1.37 BAR |
| Max Volume of Airflow: | 0-1 PSI = 350 LPM/12.3 CFM 1-20 PSI = 70 LPM/2.5 CFM |
| Abient Operating Temp: | -20° to +50°C |
| Two Stage Pump: | Stage 1 = 0-1 PSI Stage 2 = 1.1 - 20 PSI |
| Recommended Run Time: | 25mins |
| Typical Inflation Time: | Average towable (1.5 PSI) = 3mins 10.6ft SUP (20 PSI) = 6-8mins 4x2m platform (5 PSI) = 16mins |
| Typical Deflation Time: | For the above = 1 min |
- Fixed panel mount keeps gear organised
- Handles SUPs towables and swim platforms
- Two-stage marine pump made to last
- Rated IPX6 front and back for spray
- 12V draw up to 12A for strong output
- Backed by a solid 2 year warranty
• Input voltage: 12V battery system
• Max current draw: 12A (140 W)
• Standby current draw: 0.2 W max
• Max pressure: 20 PSI / 1.37 BAR
• Max airflow 0–1 PSI: 350 LPM / 12.3 CFM
• Max airflow 1–20 PSI: 70 LPM / 2.5 CFM
• Two stage pump: Stage 1 0–1 PSI; Stage 2 1.1–20 PSI
• Recommended run time: 25 minutes
• Typical inflation: towable 1.5 PSI ≈ 3 minutes; 10.6 ft SUP 20 PSI ≈ 6–8 minutes; 4 x 2 m platform 5 PSI ≈ 16 minutes
• Typical deflation time for above: ≈ 1 minute
• Ambient operating temperature: -20°C to +50°C
• Hose length supplied: 2.5 m / 8 ft
• Front and rear waterproof rating: IPX6
• Ignition protection: ISO 8846 and SAE J1171
• Display type: LCD with PSI/BAR selection
• Marine grade two-stage air pump
• Warranty: 2-year product warranty
- 1 x Scanstrut ATMOS integrated in-built air station
- 1 x cutting template
- 1 x hose (length: 2.5 m / 8 ft)
- 6 x connectors (Boston valve, C7 valve, H3/HR valve, pinch valves, 805 valve)
- 1 x hose and connectors storage net bag
- 1 x foam gasket
- 1 x sun cover
| SKU | 117503 |
|---|---|
| Barcode # | 9319786466551 |
| Brand | Scanstrut |
| Shipping Weight | 0.5000kg |
