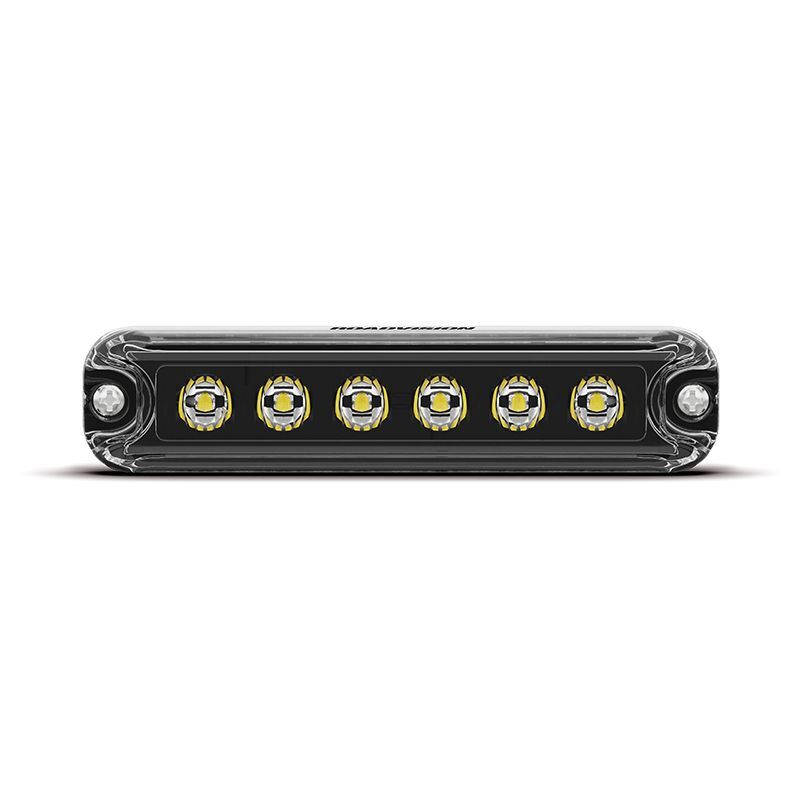

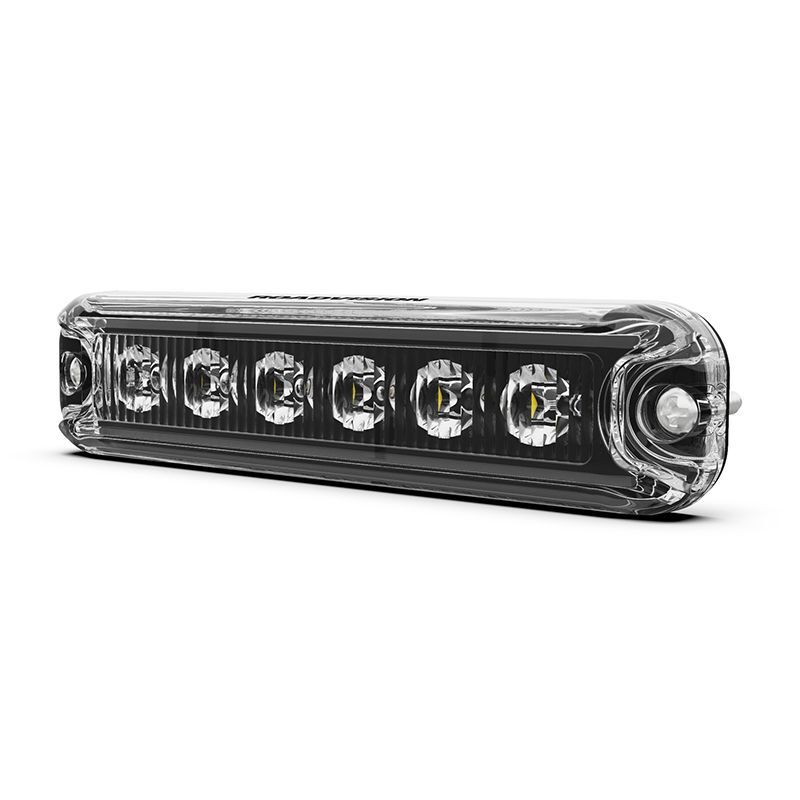

ROADVISION’s RSM07 Series ultra low-profile LED strobe modules are simply perfect for discrete applications! Roadvision’s super bright LED strobe modules deliver the durability of maintenance free LED technology and greater visibility. Featuring 18 selectable flash patterns, multi-unit synchronisation (simultaneous or alternating flash) and virtually unbreakable polycarbonate lens. Roadvision’s RSM07 Series modules simply take safety lighting to another level, ideal for all your automotive, industrial and agricultural requirements.

MULTI-VOLT
10-30 VDC

POLYCARB LENS

ALUMINIUM HOUSING

WATER & DUST PROOF

10 FLASH PATTERNS

CLASS 1 APPROVED

5 YEAR WARRANTY

RANGE FEATURES
Multi-volt 10-30V input & low current draw
Built-in 18 selectable flash patterns
Last pattern memory recall
100,000 hour LED life span with solid state technology
Maintenance free
Multi-unit synchronisation
Simultaneous or alternating flashing
Weatherproof & vibration resistant
Ultra low-profile for discrete applications
FLASH PATTERNS
OFF
Single
Double (Fast)
Quadruple (Fast)
Double (Slow)
Single (Split)
Double (Split)
Quadruple (Slow Split)
Quadruple (Fast Split)
Double (Split) Interval
Sextuple (Split)
Quintuple 4 Cycles Then 100ms 10 Cycles (Split)
100ms 14 Cycles Then 200ms 6 Cycles (Split)
Sextuple
Quadruple (Slow)
Quintuple (Slow)
LHS Double, RHS Half Bright
RHS Double, LHS Half Bright

Part Number RSM0704A RSM0704W RSM0706A RSM0706W
Description LED Strobe Module 10-30V Rectangle Surface Mount 12W Amber LED Strobe Module 10-30V Rectangle Surface Mount 12W White LED Strobe Module 10-30V Rectangle Surface Mount 18W Amber LED Strobe Module 10-30V Rectangle Surface Mount 18W White
Synchronisation Simultaneous & Alternate Simultaneous & Alternate Simultaneous & Alternate Simultaneous & Alternate
Flash Patterns 18 18 10 10
Input Voltage 10-30 VDC 10-30 VDC 10-30 VDC 10-30 VDC
Watts 12W 12W 18W 18W
Number of LEDs 4 x 3W 4 x 3W 6 x 3W 6 x 3W
Current Draw @ 13.8V 1 Amp 1 Amp 1.5 Amp 1.5 Amp
Lens Construction Polycarbonate Polycarbonate Polycarbonate Polycarbonate
Housing Construction Aluminium Aluminium Aluminium Aluminium
Mounting Centres 87mm 87mm 119mm 119mm

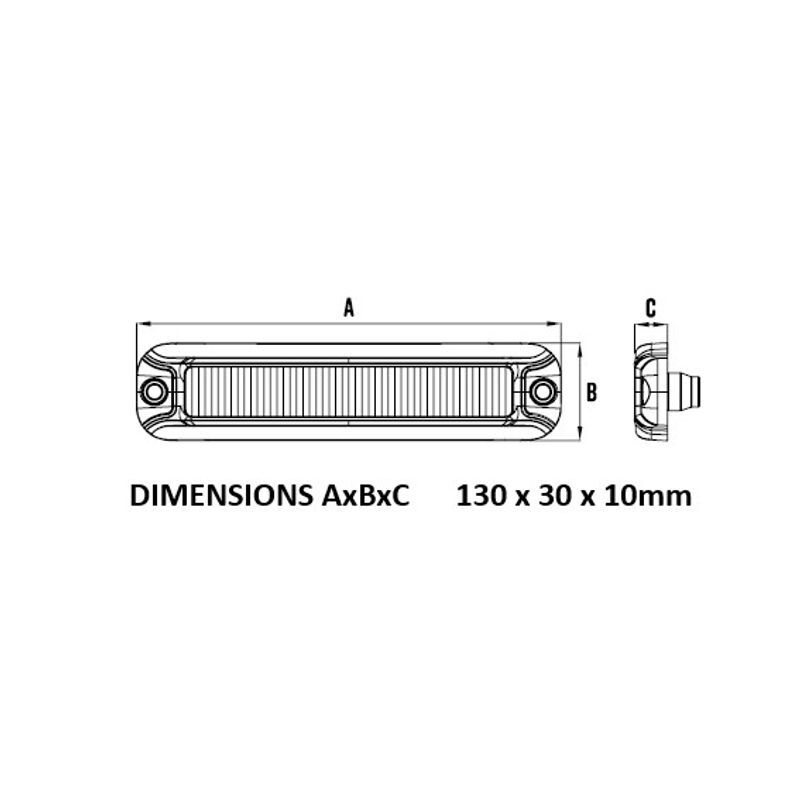

Dimensions AxBxC 98 x 30 x 10mm 98 x 30 x 10mm 130 x 30 x 10mm 130 x 30 x 10mm
Wiring Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash
