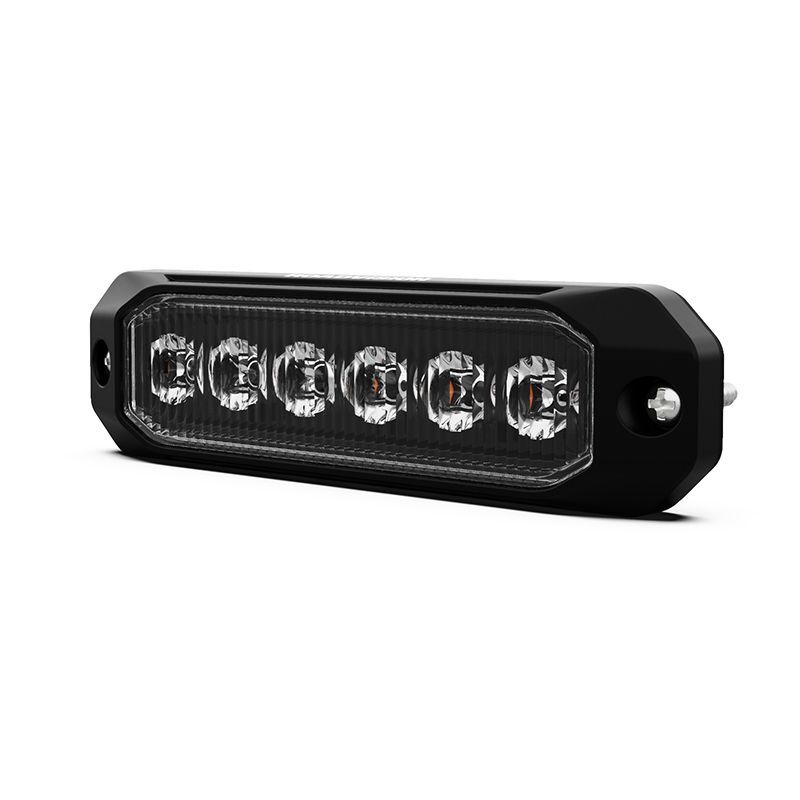

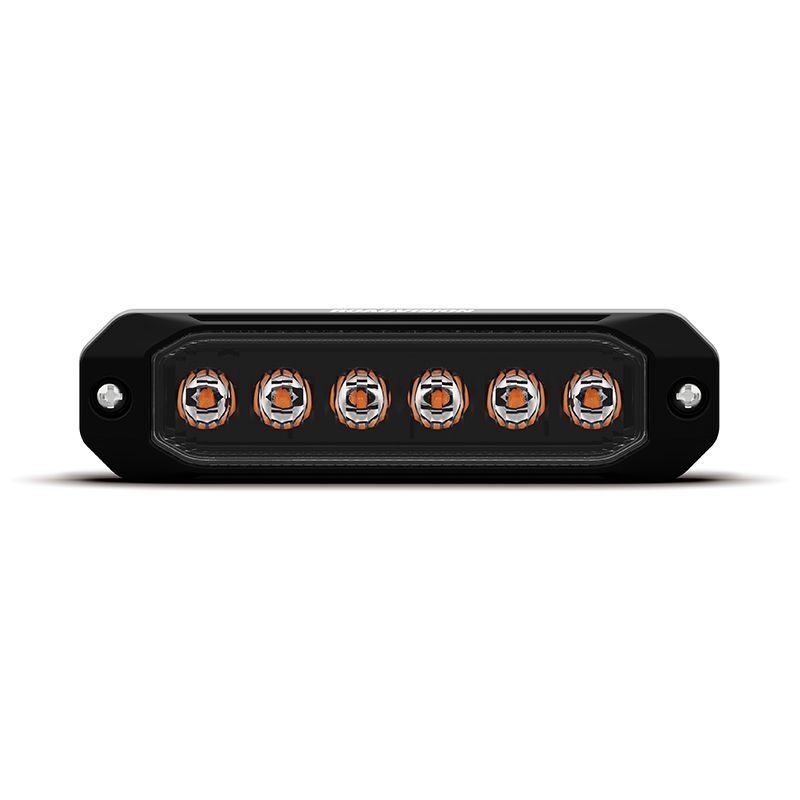

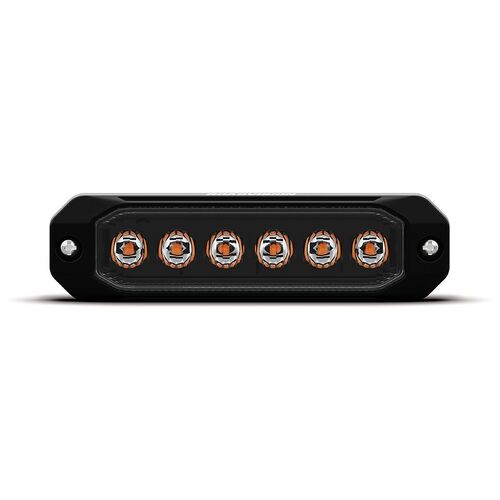

ROADVISION’s RSM06 Series super low-profile LED strobe modules are simply perfect for discrete applications! Roadvision’s super bright LED strobe modules deliver the durability of maintenance free LED technology and greater visibility. Featuring 10 selectable flash patterns, multi-unit synchronisation (simultaneous or alternating flash), aluminium housing and virtually unbreakable polycarbonate lens. Roadvision’s RSM06 Series modules simply take safety lighting to another level, ideal for all your automotive, industrial and agricultural requirements.

MULTI-VOLT
10-30 VDC

POLYCARB LENS

ALUMINIUM HOUSING

WATER & DUST PROOF

10 FLASH PATTERNS

CLASS 1 APPROVED

5 YEAR WARRANTY

RANGE FEATURES
Multi-volt 10-30V input & low current draw
Built-in 10 selectable flash patterns
Last pattern memory recall
100,000 hour LED life span with solid state technology
Maintenance free
Multi-unit synchronisation
Simultaneous or alternating flashing
Weatherproof & vibration resistant
Super low-profile for discrete applications
FLASH PATTERNS
Single
Quadruple (Split)
Quintiple
Triple (Split)
Quadruple
Double (Split)
Triple
Single (Split)
Double
Sextuple

Part Number RSM0604A RSM0604W RSM0606A RSM0606W
Description LED Strobe Module 10-30V Rectangle Surface Mount 12W Amber LED Strobe Module 10-30V Rectangle Surface Mount 12W White LED Strobe Module 10-30V Rectangle Surface Mount 18W White LED Strobe Module 10-30V Rectangle Surface Mount 18W Amber
Synchronisation Simultaneous & Alternate Simultaneous & Alternate Simultaneous & Alternate Surface Mount 18W Amber
Flash Patterns 10 10 10 10
Input Voltage 10-30 VDC 10-30 VDC 10-30 VDC 10-30 VDC
Watts 12W 12W 18W 18W
Number of LEDs 4 x 3W 4 x 3W 6 x 3W 6 x 3W
Current Draw @ 13.8V 1 Amp 1 Amp 1.5 Amp 1.5 Amp
Lens Construction Polycarbonate Polycarbonate Polycarbonate Polycarbonate
Housing Construction Aluminium Aluminium Aluminium Aluminium
Mounting Centres 89mm 89mm 108mm 108mm

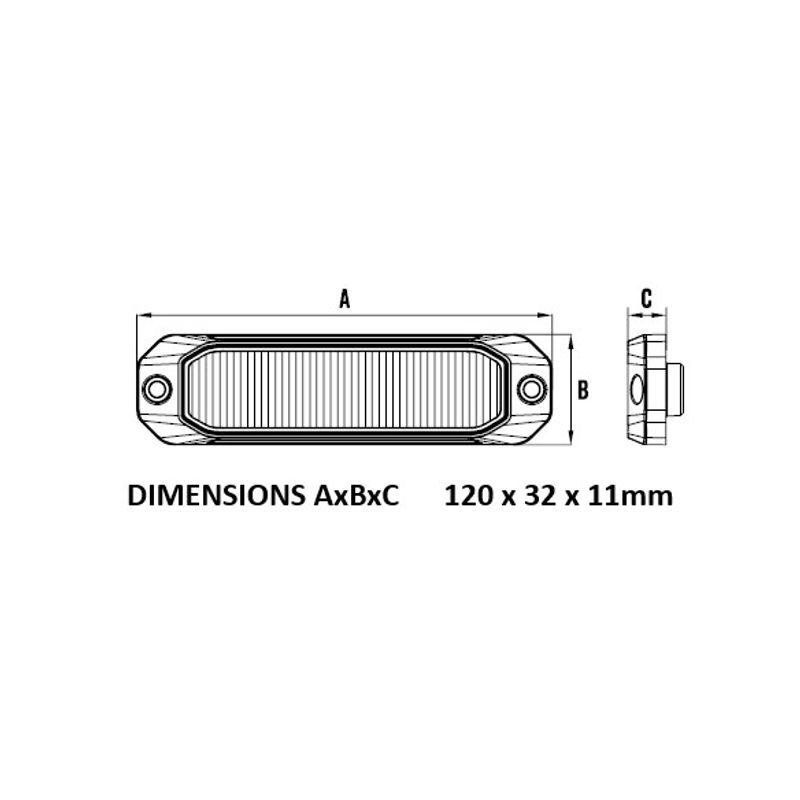

Dimensions AxBxC 101 x 32 x 11mm 101 x 32 x 11mm 120 x 32 x 11mm 120 x 32 x 11mm
Wiring Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash
