ROADVISION’s BR502 Series mini jumbo LED combination lamps deliver powerful performance in a compact, versatile design—ideal for all applications, including 4WDs, small, medium, and large trucks and trailers. Combining Stop, Tail, Indicator, Reflector, and optional Reverse functions into one tough, compact unit, the BR502 Series offers the perfect balance of size, durability, and visibility. Featuring maintenance-free LED technology, these lamps provide brighter output than traditional incandescent lights while drawing significantly less current. Built to endure harsh conditions, they feature unbreakable polycarbonate lenses, a rugged high-impact ABS housing, and are fully sealed against dust and water. With a 100,000-hour LED lifespan, the BR502 Series is a dependable fit-and-forget lighting solution for vehicles of all sizes.

MULTI VOLT
10-30V DC

POLY CARBONATE LENS

HIGH IMPACT HOUSING

ADR APPROVED

WATERPROOF

5 YEAR WARRANTY

FEATURES
Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Integrated Retro Reflectors
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens.

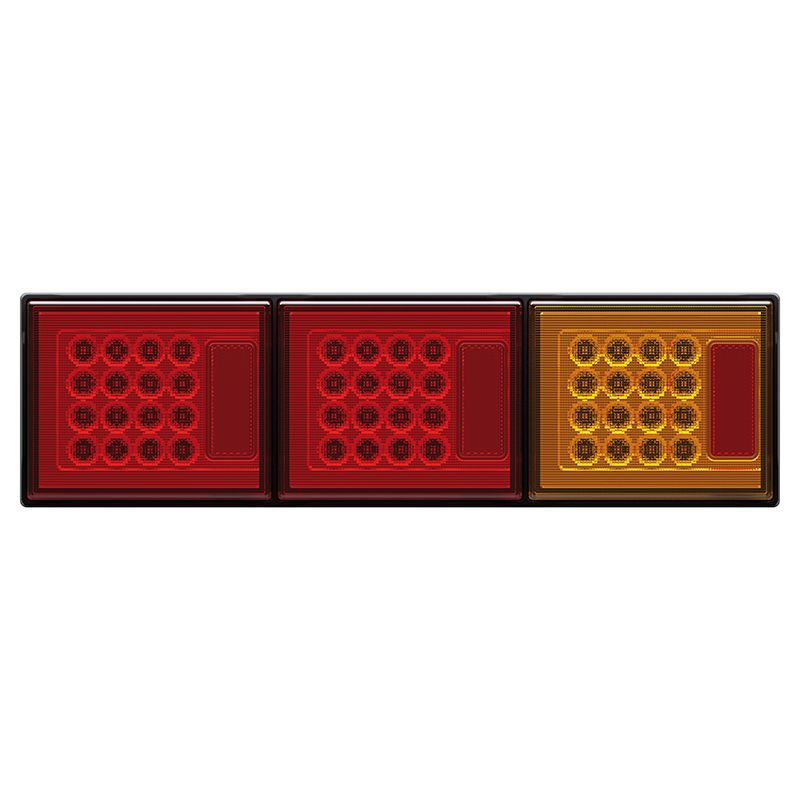

Part Number BR502ARR BR502ARW

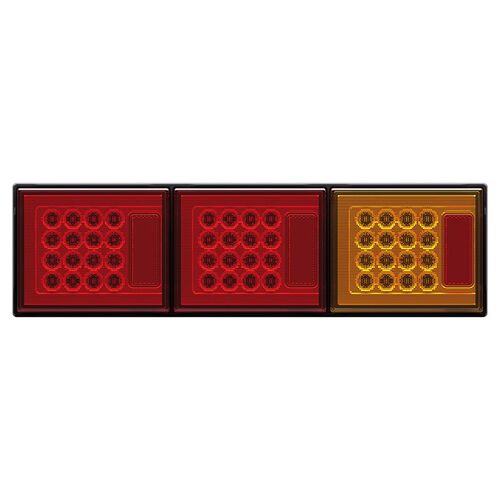

Description LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130x33mm LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Reverse Triple Surface Mount 460x130x33mm
Input Voltage 10-30 VDC 10-30 VDC
Number of LEDS Indicator - 16 LEDs
Stop/Tail - 32 LEDs, Indicator - 16 LEDs
Stop/Tail - 16 LEDs
Reverse - 16 LEDs
Current Draw @ 13.8V Ind - 0.11A
Stop - 0.23A
Tail - 0.04A @ 13.8V Ind - 0.11A
Stop - 0.11A
Tail - 0.02A
Rev - 0.11A @ 13.8V
Lens Construction Polycarbonate Polycarbonate
Housing Construction High Impact ABS High Impact ABS
Mounting Hole Centres 280mm 280mm

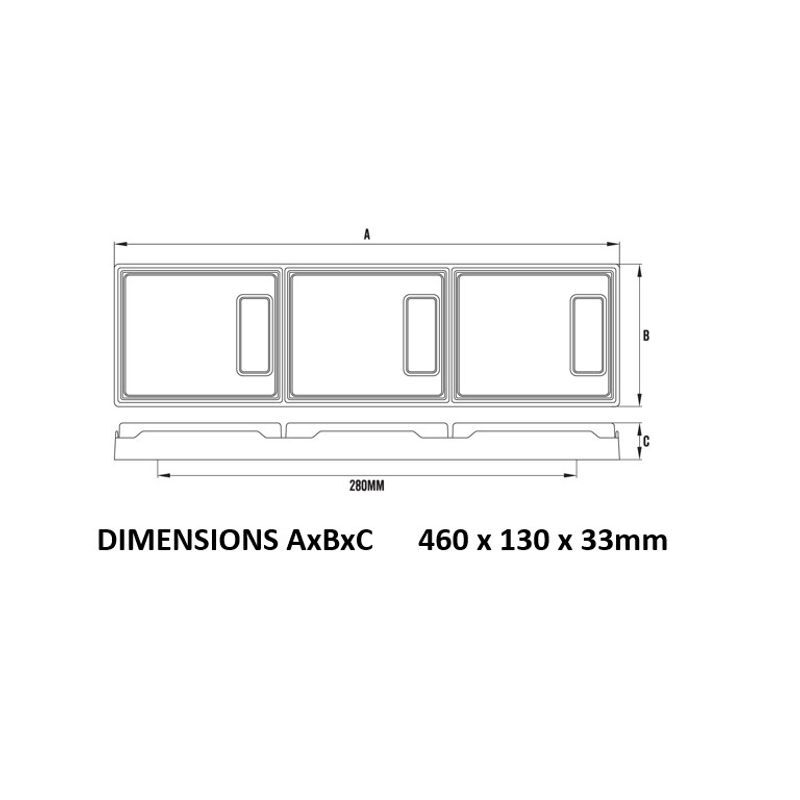

Overall Dimensions 460 x 130 x 33mm 460 x 130 x 33mm
Cable Length 300mm Tinned Copper 300mm Tinned Copper
CTA Approval ADR Approved for all functions ADR Approved for all functions
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
Reverse - Black
