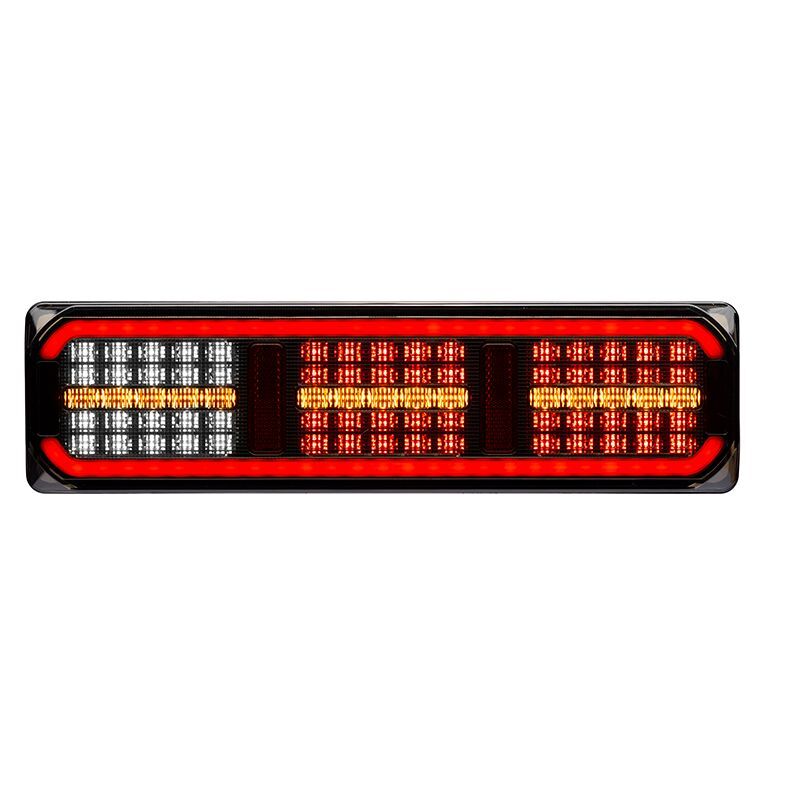

Elevate your vehicle’s lighting with the ROADVISION BR390 Series, a premium solution blending Stop, Tail, Indicator, and Reverse functions with the cutting-edge sophistication of a sequential indicator and Grey Glowtech tail light. Built for safety, durability, and style, these advanced LED lamps provide outstanding brightness, an ultra-long lifespan of up to 100,000 hours, and the reliability of solid-state technology. The BR390 Series is fully ADR-approved for all functions and constructed with a robust yet lightweight polycarbonate housing and lens. Featuring a mild tinted lens and a gun metal grey chrome finish, these lamps exude a modern, sleek design. An integrated retro reflector enhances visibility, ensuring safety is never compromised. Versatile and easy to install, the BR390 Series delivers the perfect combination of functionality and aesthetics for any application requiring top-quality combination lamps.

MULTI VOLT
10-30V DC

POLY CARBONATE LENS

POLYCARB HOUSING

ADR APPROVED

WATERPROOF

SEQUENTIAL INDICATOR

GLOW TAIL LIGHT

5 YEAR WARRANTY

FEATURES
Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Sequential Indicator
Grey Glowtech tail light
Integrated Retro Reflector
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens
Mild tinted lens and gun metal grey chrome finish

Part Number BR390ARR BR390ARW

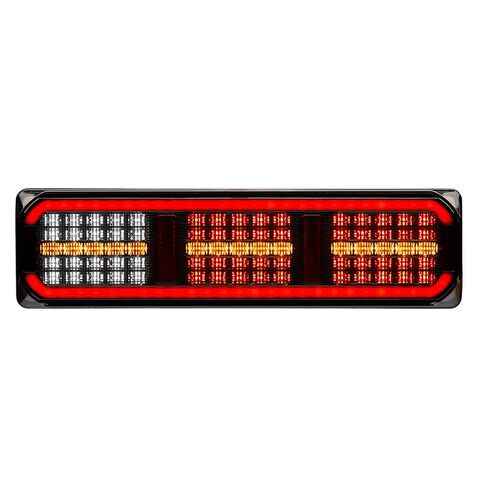

Description LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref Glowtech Tail 390x105x39mm
Input Voltage 10-30 VDC 10-30 VDC
Number of LEDS Indicator - 15 LEDs
Stop - 60 LEDs
Tail - 54 LEDs Indicator - 15 LEDs
Stop - 40 LEDs
Tail - 54 LEDs
Reverse - 20 LEDs
Current Draw @ 13.8V Ind - 0.57A
Stop - 0.29A
Tail - 0.18A @ 13.8V Ind - 0.57A
Stop - 0.27A
Tail - 0.18A
Rev - 0.29A @ 13.8V
Lens Construction Polycarbonate Polycarbonate
Housing Construction Polycarbonate Polycarbonate
Mounting Hole Centres 185-225mm 185-225mm

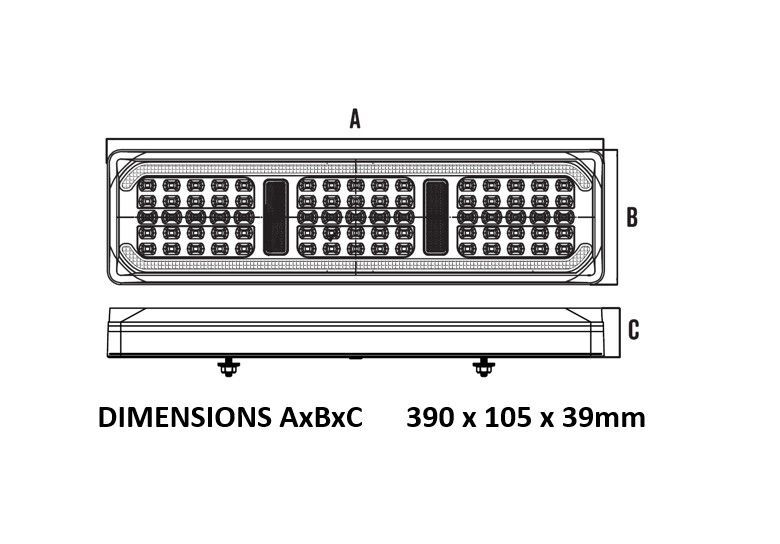

Overall Dimensions 390 x 105 x 39mm 390 x 105 x 39mm
Cable Length 300mm Tinned Copper 300mm Tinned Copper
CTA Approval CTA-061760 CTA-061759
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
Reverse - Black
