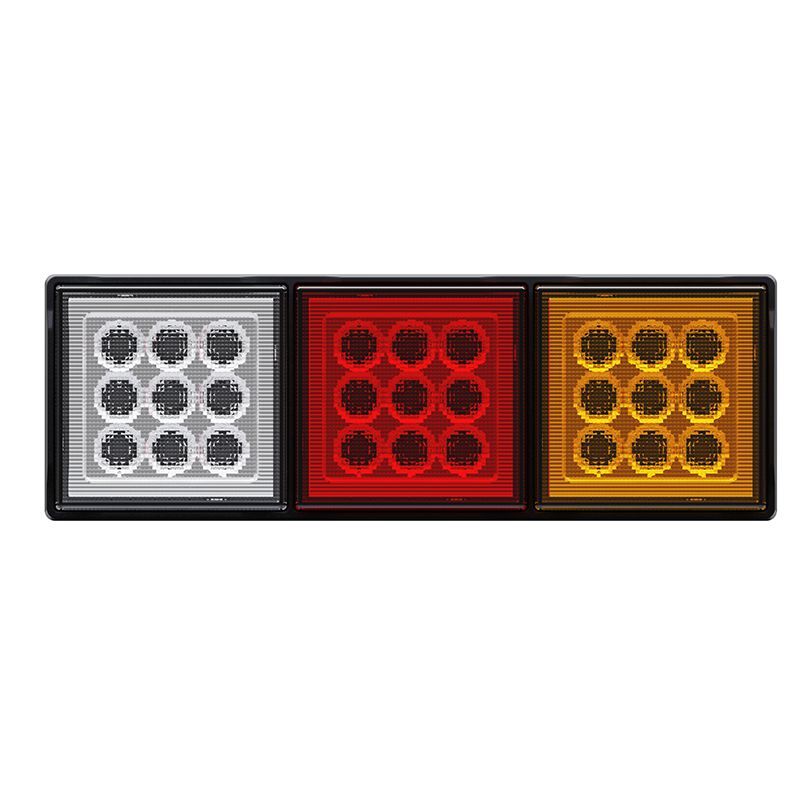

ROADVISION’s BR302 Series LED combination lamps are the ideal all-in-one lighting solution for 4WDs, small to medium trucks, and trailers. Designed for versatility and performance, the BR302 Series includes Stop, Tail, Indicator, and optional Reverse functions in a compact, durable package. Featuring maintenance-free LED technology, these lamps offer brighter output and greater efficiency than traditional incandescent lights, while drawing significantly less power. Built with unbreakable polycarbonate lenses and a rugged high-impact ABS housing, the BR302 Series is fully sealed against dust and water and rated to a 100,000-hour lifespan. Tough, compact, and reliable—with the BR302 Series, it’s fit and forget.

MULTI VOLT
10-30V DC

POLY CARBONATE LENS

HIGH IMPACT HOUSING

ADR APPROVED

WATERPROOF

5 YEAR WARRANTY

FEATURES
Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens

Part Number BR302ARR BR302ARW
Description LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 282x95x28mm LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Reverse Triple Surface Mount 282x95x28mm
Input Voltage 10-30 VDC 10-30 VDC
Number of LEDS Indicator - 9 LEDs
Stop/Tail - 18 LEDs, Indicator - 9 LEDs
Stop/Tail - 9 LEDs
Reverse - 9 LEDs
Current Draw @ 13.8V Ind - 0.1A
Stop - 0.15A
Tail - 0.04A @ 13.8V Ind - 0.1A, Stop - 0.08A
Tail - 0.02A, Rev - 0.1A @ 13.8V
Lens Construction Polycarbonate Polycarbonate
Housing Construction High Impact ABS High Impact ABS
Mounting Hole Centres 116mm 116mm

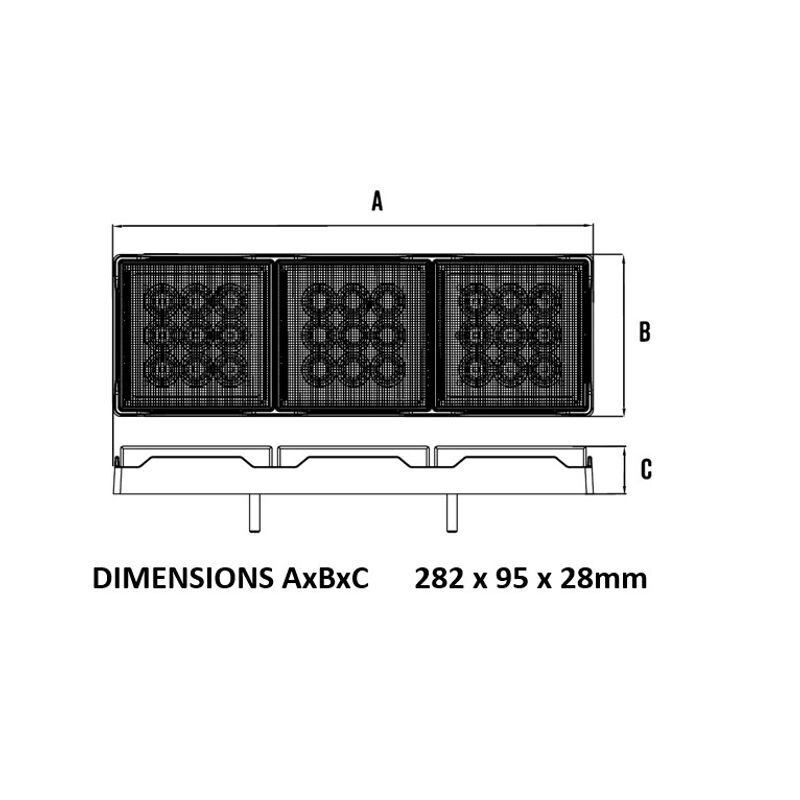

Overall Dimensions 282 x 95 x 28mm 282 x 95 x 28mm
Cable Length 300mm Tinned Copper 300mm Tinned Copper
CTA Approval CTA-061848 CTA-061851
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
Reverse - Black
