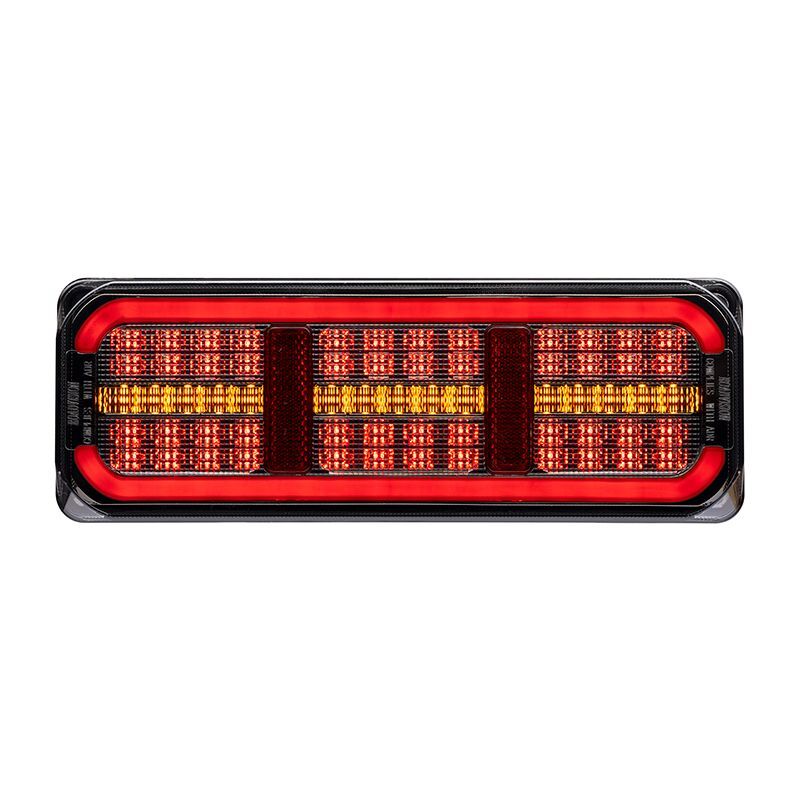

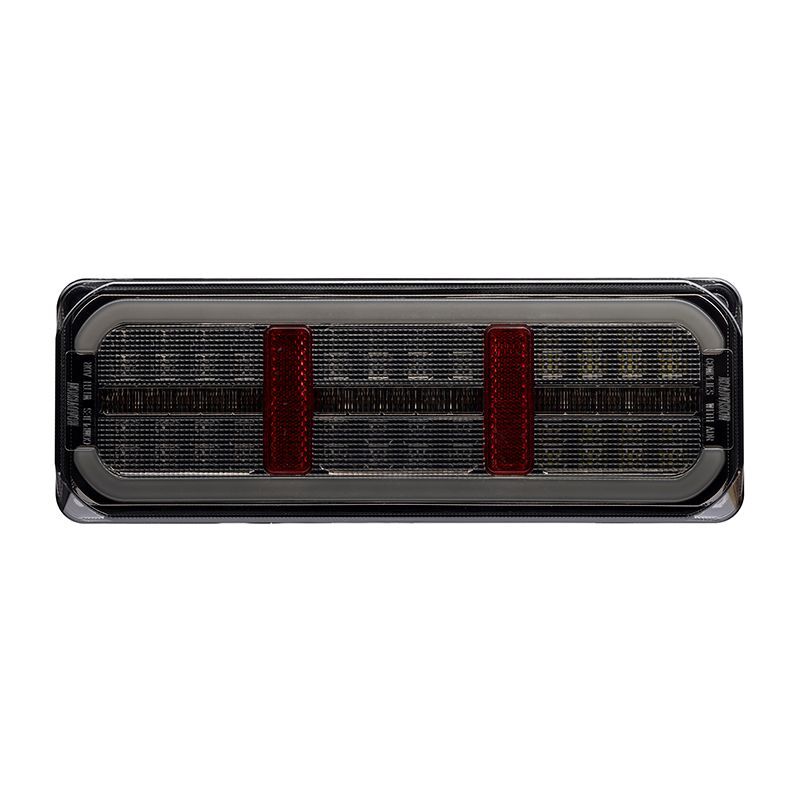

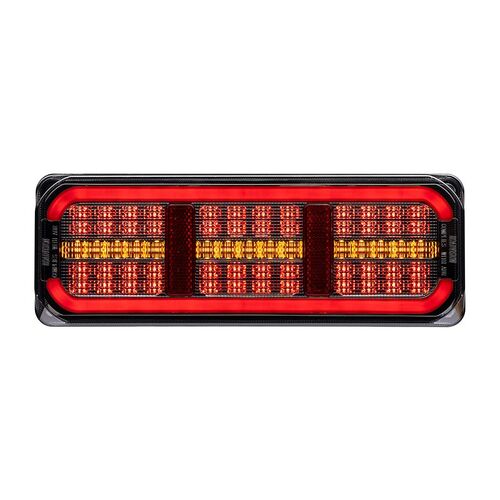

Enhance your vehicle’s lighting performance with the ROADVISION BR281 Series—designed to deliver style, safety, and reliability in one compact package. Combining Stop/Tail/Indicator or Stop/Tail/Indicator & Reverse functions with a striking sequential indicator, the BR281 Series offers a modern lighting solution that commands attention on the road. Featuring an integrated retro reflector for added visibility and ADR approval across all functions, these lamps are built with efficiency and durability in mind. The multi-volt 10–30V DC input and low current draw ensure compatibility with a wide range of vehicles, while the tough yet lightweight polycarbonate housing and lens provide long-lasting performance. Finished with a sleek mild tinted lens and gun metal grey chrome trim, the BR281 Series offers a clean, contemporary look that fits.

MULTI VOLT
10-30V DC

POLY CARBONATE LENS

POLYCARB HOUSING

ADR APPROVED

WATERPROOF

SEQUENTIAL INDICATOR

GLOW TAIL LIGHT

5 YEAR WARRANTY

FEATURES
Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Sequential Indicator
Grey Glowtech tail light
Integrated Retro Reflector
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens
Mild tinted lens and gun metal grey chrome finish

Part Number BR281ARR BR281ARW
Description LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 200x100x37mm LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 200x100x37mm
Input Voltage 10-30 VDC 10-30 VDC
Number of LEDS Indicator - 15 LEDs
Stop - 48 LEDs
Tail - 36 LEDs Indicator - 15 LEDs
Stop - 32 LEDs
Tail - 36 LEDs
Reverse - 16 LEDs
Current Draw @ 13.8V Ind - 0.29A
Stop - 0.33A
Tail - 0.14A @ 13.8V Ind - 0.29A
Stop - 0.2A
Tail - 0.14A
Rev - 0.26A @ 13.8V
Lens Construction Polycarbonate Polycarbonate
Housing Construction Polycarbonate Polycarbonate
Mounting Hole Centres 120mm 120mm

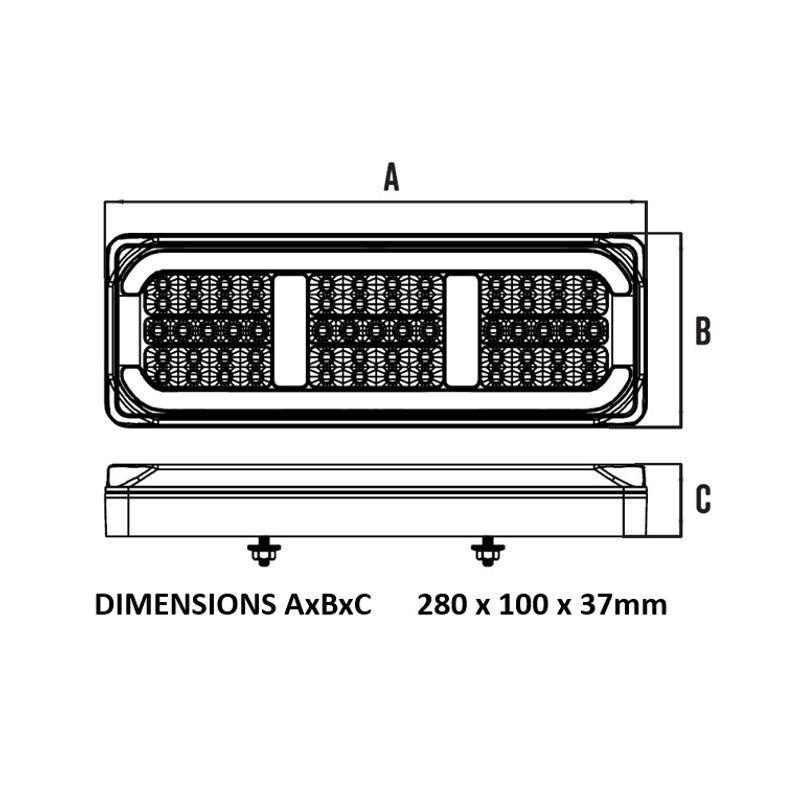

Overall Dimensions 280 x 100 x 37mm 280 x 100 x 37mm
Cable Length 300mm Tinned Copper 300mm Tinned Copper
CTA Approval CTA-061824 CTA-061819
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
Reverse - Black
