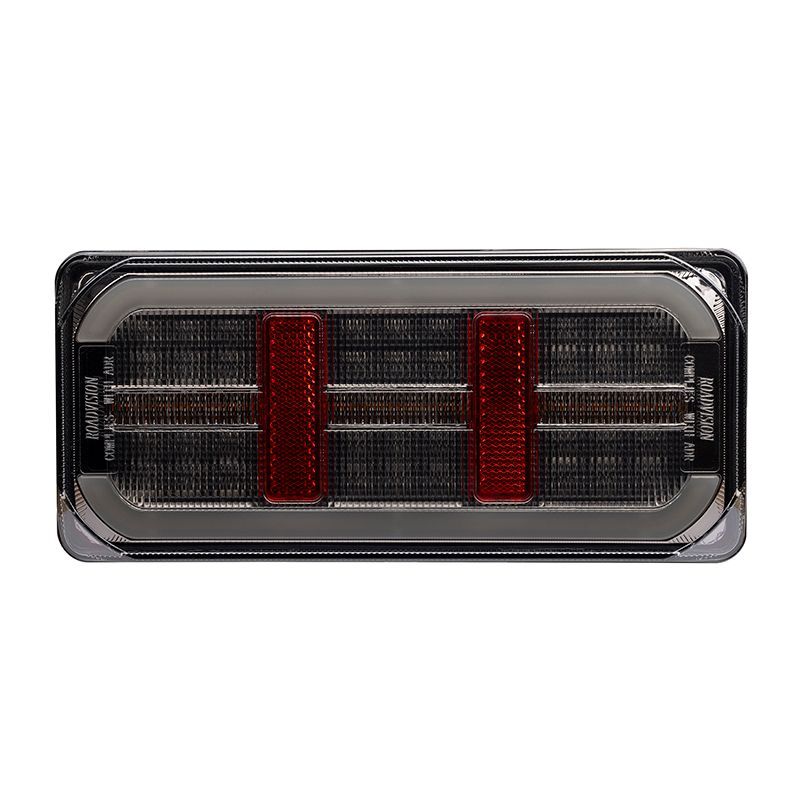

Upgrade your lighting game with ROADVISION’s BR220 Series, where innovation meets style. Designed to combine Stop, Tail, Indicator, and Reverse functions, these premium LED lamps feature the sophisticated Grey Glowtech tail light and sequential indicator for a standout modern touch. Built with safety and performance in mind, the BR220 Series delivers exceptional brightness, a remarkable lifespan of up to 100,000 hours, and the trusted durability of solid-state technology. ADR-approved and built to last, the BR220 Series boasts a lightweight yet sturdy polycarbonate housing and lens. Its gun metal grey chrome finish and subtly tinted lens create a sleek aesthetic, while the integrated retro reflector enhances visibility for added safety. With hassle-free installation and versatile application, the BR220 Series offers the perfect blend of reliability, functionality, and contemporary design.

MULTI VOLT
10-30V DC

POLY CARBONATE LENS

POLYCARB HOUSING

ADR APPROVED

WATERPROOF

SEQUENTIAL INDICATOR

GLOW TAIL LIGHT

5 YEAR WARRANTY

FEATURES
Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Sequential Indicator

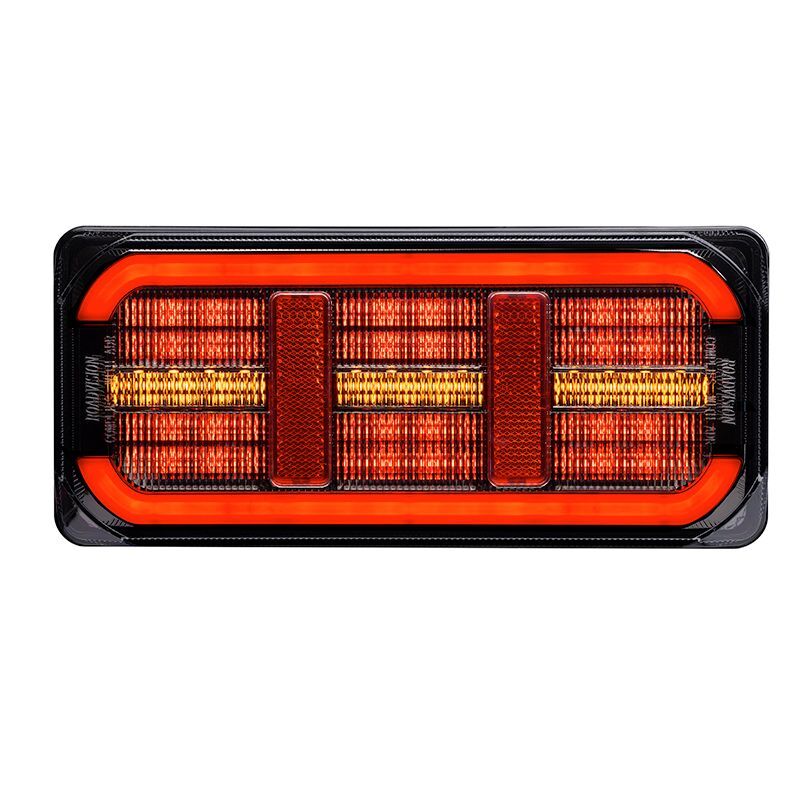

Grey Glowtech tail light
Integrated Retro Reflector
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens
Mild tinted lens and gun metal grey chrome finish

Part Number BR220ARR BR220ARW
Description LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 220x100x40mm LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref Glowtech Tail 220x100x40mm
Input Voltage 10-30 VDC 10-30 VDC
Number of LEDS Indicator - 12 LEDs
Stop - 36 LEDs
Tail - 32 LEDs Indicator - 12 LEDs
Stop - 24 LEDs
Tail - 32 LEDs
Reverse - 12 LEDs
Current Draw @ 13.8V Ind - 0.23A
Stop - 0.28A
Tail - 0.22A @ 13.8V Ind - 0.23A
Stop - 0.2A
Tail - 0.22A
Rev - 0.2A @ 13.8V
Lens Construction Polycarbonate Polycarbonate
Housing Construction Polycarbonate Polycarbonate
Mounting Hole Centres 151mm 151mm

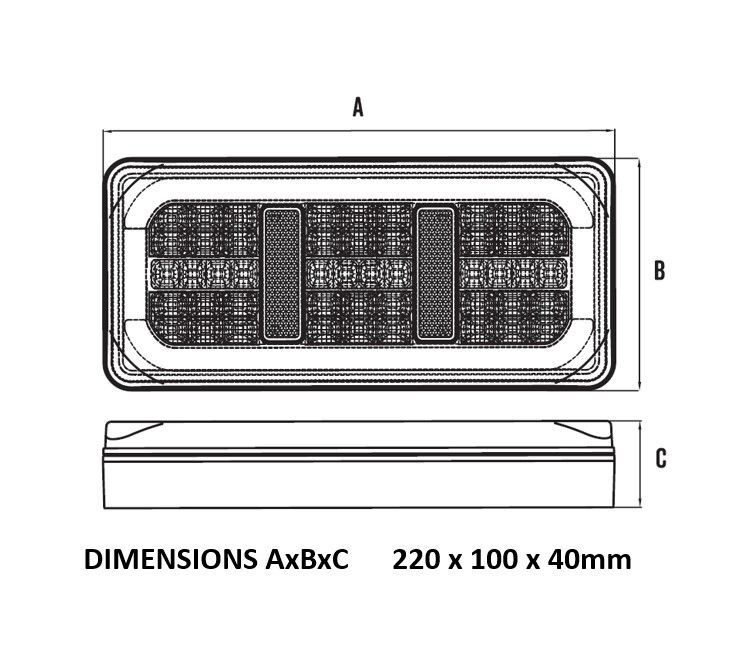

Overall Dimensions 220 x 100 x 40mm 220 x 100 x 40mm
Cable Length 300mm Tinned Copper 300mm Tinned Copper
CTA Approval CTA-061823 CTA-061821
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
Reverse - Black
