Description

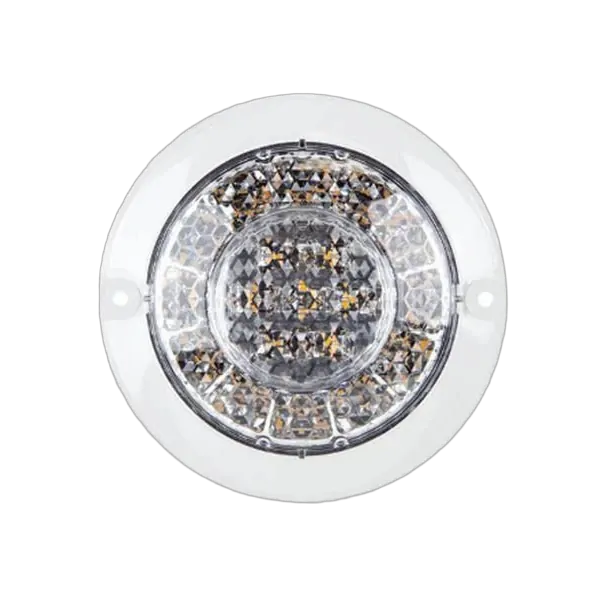

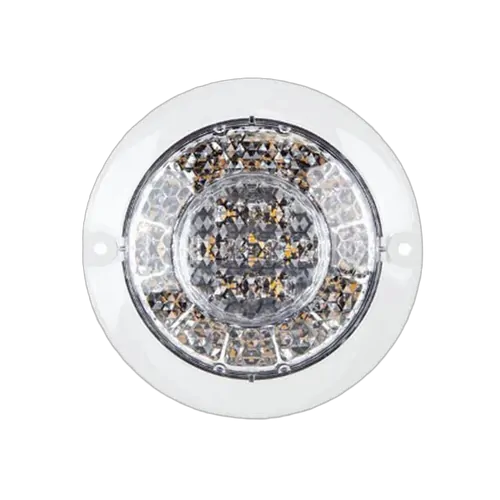

LED Indicator Lamp BR170 Series 10-30V 15 LED Round 134mm Clear Lens Recessed Mount
Roadvision’s super bright LED signal lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Couple this with virtually unbreakable polycarbonate lenses and housings, the BR170 Series will survive the toughest environments. The BR170’s clever design enables it to be fitted as a recessed flush mount lamp, replacing existing 4” round grommet and 5.5” flange mount lamps. ROADVISION’s new BR170 Series signal lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. They are dust & water proof and totally maintenance free, with a life span rated at 100,000 hours. With the ROADVISION BR170 Series, it’s FIT and FORGET.
Product features:
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Supplied pre-wired with 300mm of sheathed tinned copper cable
- Flush recessed mount design
- Retro reflector integrated into BR170RR
- Available in clear or coloured lenses
- ADR/ECE approved for all functions
Product specifications:
- Lens - Colour Clear
- No. of LED's 15 Amber LED's
- Mounting Hole Cut Out 102mm
- Voltage - Input 10-30V DC
- Approvals CRN 46747
- Dimensions 134 x 32.8mm
- Mounting Type Recessed Mount
- Amperage 0.1 Amps @ 13.8V DC
- Brand Roadvision
- Type Rear Indicator
- Cable Length 300mm Tinned Copper
- Lens - Material Polycarbonate
Features
- 10–30V range suits mixed fleets
- 15 amber LEDs boost rear visibility
- 134mm round face fits common cut-outs
- Sealed polycarbonate body shrugs off grime
- 300mm tinned copper lead simplifies wiring
- ADR/ECE approval keeps installs legit
Specifications
- Brand: Roadvision
- Series: BR170
- Function: Rear indicator lamp
- LED type and quantity: 15 amber LEDs
- Input voltage range: 10-30V DC multi-volt
- Current draw: 0.1A @ 13.8V DC
- LED lifespan: 100,000 hours (solid state technology)
- Lens colour: Clear
- Lens material: Polycarbonate
- Housing material: Polycarbonate
- Mounting type: Flush recessed mount
- Mounting hole cut out: 102mm
- Overall dimensions: 134mm diameter x 32.8mm depth
- Cable length: 300mm sheathed tinned copper
- Protection: Water and dust proof sealed assembly
- Approvals: ADR/ECE approved, CRN 46747
- Maintenance: Maintenance free FIT and FORGET design
- Application: Replacement for 4" round grommet and 5.5" flange mount lamps
1 x Roadvision BR170 Series LED rear indicator lamp with clear polycarbonate lens and recessed mount housing
1 x Pre-wired 300mm sheathed tinned copper cable attached to lamp
| SKU | BR170CA |
|---|---|
| Barcode # | 9340330009559 |
| Brand | Roadvision |
| Shipping Weight | 0.5000kg |
Dispatch in 7 days
More infoMake 4 payments of $8.25 over 8 weeks and get it now!
This round 15 LED Clear Rear Indicator Lamp from Roadvision combines maintenance free LED technology with better visability and minimum current draw.
