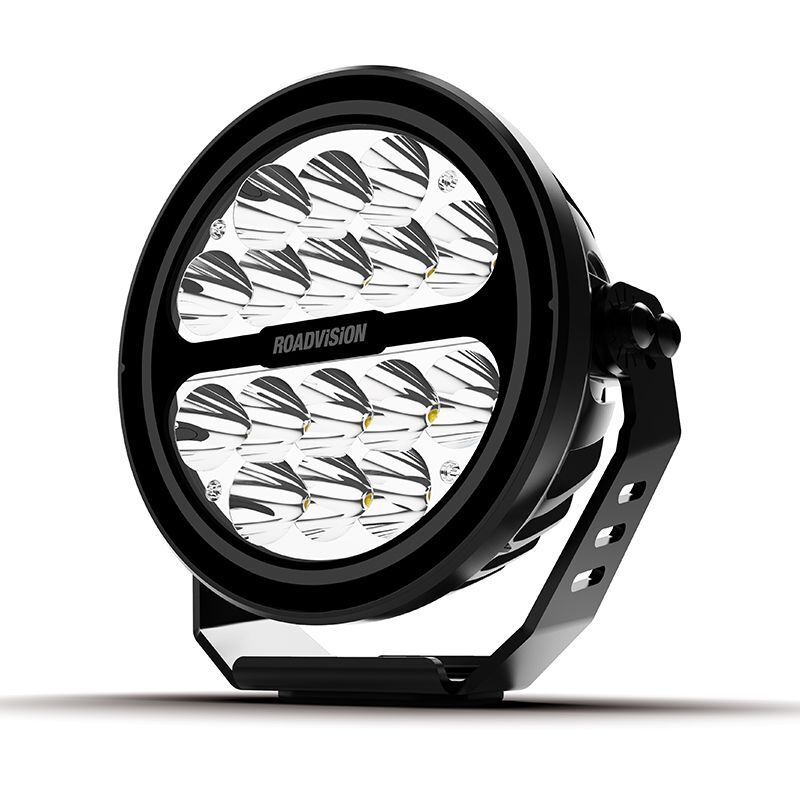

Roadvision’s Stealth PRO Series Driving Lights deliver cutting-edge upgrades and a sleek modern appearance. Maintaining the contemporary bezel-less design, the Stealth PRO Series now features dynamic start-up Daytime Running Lights (DRL) and a stylish black cover with a dedicated DRL window, offering enhanced functionality and aesthetics. When not illuminated, the DRL seamlessly darkens, ensuring a sleek, understated look. With black mounting hardware, the Stealth PRO Series produces up to an impressive 10,485lm per light and up to 912 metres of beam penetration at 1 lux. Built to withstand the harshest conditions, these lights feature a lightweight yet tough aluminium housing and a durable polycarbonate lens. Powered by Roadvision’s Thermal Management Technology, the Stealth PRO Series guarantees superior performance and durability in any environment.
![]()
THERMAL MANAGEMENT TECHNOLOGY
![]()
HALO DRL RING
![]()
MULTI-VOLT
10-30 VDC
![]()
POLYCARB LENS
![]()
COLOUR TEMP
![]()
IP PROTECTION
![]()
OVER/UNDER VOLTAGE PROTECTION
![]()
DEUTSCH CONNECTOR
![]()
REVERSE POLARITY PROTECTION

OSRAM LEDS
![]()
RADIO INTERFERENCE APPROVED
![]()
7 YEAR WARRANTY
RANGE FEATURES
- Stealth PRO Series 7″ and 9” Driving Light
- Dynamic start-up DRL

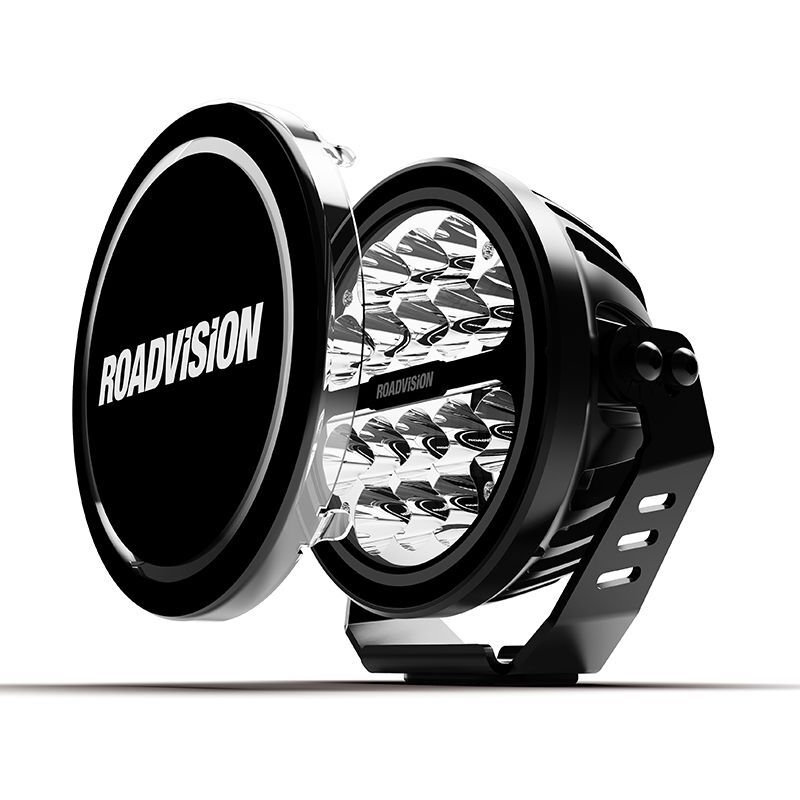

- Includes Black cover with DRL windows
- Blackout mounting hardware
- 3W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- IP68 & IP69K protection
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection
- EMI/EMC radio interference approved
| Part Number | RDL6701SD |
|---|---|
| Description | 7” LED Driving Light 10-30V Round 68W Spot Beam |
| Beam Pattern | Spot |
| Maximum Lumens per Light (pair) | 5,130lm (10,260lm) |
| Maximum Lux @ 10m per Light (pair) | 3,978lx (7,956lx) |
| Maximum Beam Distance @ 1lx per Light (pair) | 631m (892m) |
| Input Voltage | 10-30VDC |
| Maximum Watts | 68W |
| Number of LEDS | 16 x 3W Osram |
| Current Draw @ 13.8V | 4.95 Amps |
| Lens Construction | Polycarbonate |
| Housing Construction | Die-Cast Aluminium |
| Wiring | 2 Pin Deutsch Plug |
| Dimensions AxBxC | 192 x 78 x 195mm |
- Gear throws 631m spot beam
- 16 x 3W Osram LED setup
- IP68 and IP69K rated housing
- Over and under voltage protection
- Deutsch plug suits touring wiring looms
- Smart buy for serious night driving
- Part number: RDL6701SD
- Light type: 7" LED driving light
- Beam pattern: Spot
- Input voltage: 10-30V DC multi-volt
- Power consumption: 68W maximum
- LED configuration: 16 x 3W Osram LEDs
- Maximum lumens per light: 5,130lm
- Maximum lux at 10m per light: 3,978lx
- Maximum beam distance at 1lx per light: 631m
- Current draw at 13.8V: 4.95A
- Housing material: Die-cast aluminium
- Lens material: Polycarbonate
- Connector type: 2 pin Deutsch plug
- Protection rating: IP68 and IP69K
- LED lifespan: 50,000 hours (solid state technology)
- Features: Dynamic start-up DRL and halo DRL ring
- Protection features: Over/under voltage and reverse polarity protection
- EMI/EMC: Radio interference approved
- Dimensions (AxBxC): 192 x 78 x 195mm
- Warranty: 7 years
1 x Roadvision Stealth PRO Series 7" LED driving light (RDL6701SD)
1 x Black cover with DRL window
Blackout mounting hardware
2 pin Deutsch plug with wiring tail
| SKU | RDL6701SD |
|---|---|
| Barcode # | OEBC708863 |
| Brand | Roadvision |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.150m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.006000000m3 |
