Description
| Part No. | 530721 |
| Amps | 20 |
| LED | Blue |
| Switch Facial Material | Stainless Steel |
| LED Function | Configurable |
| Cut Out | Dia. 19mm |
| Unit Qty | 1 |
| Volts | 12V |
| Switch | On/Off |

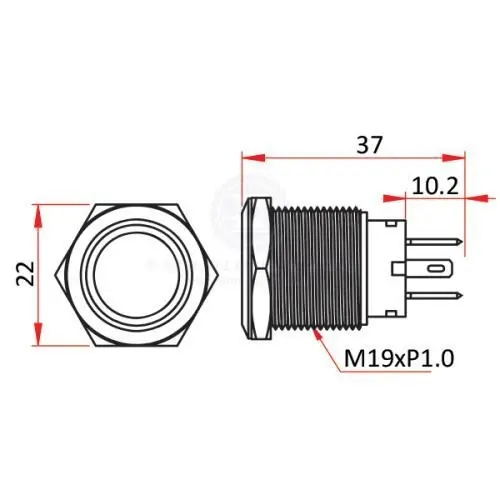

| Dimensions | Dia. 22mm x 37mm |
| Note | • Market leading 20A capability - No more relays. • Durable CNC 316G stainless steel switch with stainless steel or polycarbonate face. • 0.250 inch quick connect terminals. • Up to 20,000 cycles. • Operating temperature - 20 Degree Celsius - +55 Degree Celsius. • Prewired for easy installation. • IP67 rated. |
Features
- 20A rating for serious 12V gear
- Blue LED ring easy to spot
- 316G stainless holds up to salt
- IP67 body handles spray and dust
- Standard 19mm cut-out for panels
- Quick-connect tabs for fast wiring
Specifications
- Part number: 530721
- Switch type: Push button on/off
- Current rating: 20A
- Voltage rating: 12V
- LED colour: Blue
- LED function: Configurable
- Switch facial material: 316G stainless steel
- Cut-out size: 19mm diameter
- Overall dimensions: 22mm diameter x 37mm length
- Terminal size: 0.250 inch quick-connect
- Unit quantity: 1
- Operating temperature range: -20°C to +55°C
- Ingress protection rating: IP67
- Cycle life: Up to 20,000 cycles
- Construction: CNC machined stainless steel with stainless steel or polycarbonate face
- Wiring: Prewired leads
- 1 x Relaxn round push button on/off switch with stainless steel face and blue LED ring
| SKU | 530721 |
|---|---|
| Barcode # | 9330420215199 |
| Brand | Relaxn |
| Shipping Weight | 0.2000kg |

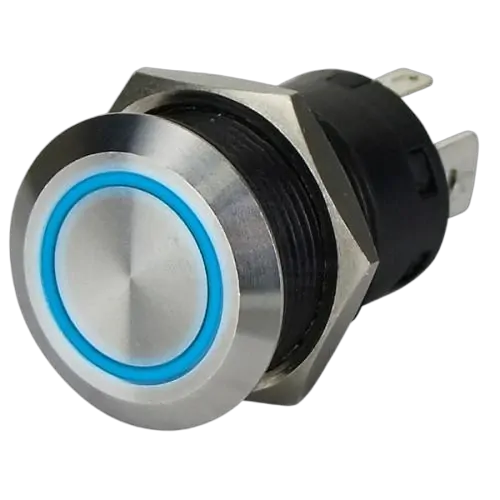

Relaxn Round Switch - Push Button On/Off - Stainless Steel Blue Ring 20A
SKU: 530721
Sale price
REG $24.40
SALE ENDS
In stock
Dispatch in 1 day
More infoMake 4 payments of $5.25 over 8 weeks and get it now!
