An affordable and reliable, easy to install dual battery management system that requires no modification to the vehicle’s wiring.

Product Features:

• Priority charging ensures main battery is charged before connecting to auxilary
• Comprehensive kit includes everything for an easy and professional installation
• Manual override allows batteries to be manually paralleled for jumpstarting
• Quality battery terminals solid brass battery terminals with quick release wing nut bolts allowing multiple cable connections
• Surge protection with built in over current and surge protection.

Specifications:

• Voltage: 12V
• Charging Current: 100A Continuous, 200A Peak
• Cut-In Voltage: 13.4V
• Cut-Out Votlage: 12.8V
• Cut-Out Delay: 8 seconds
• Minimum Operating Voltage: 10V
• Charge Type: Parallel
• Control: MCU
• Mouting: Surface/Firewall
• Current Draw: Charging 550mA (standby 10mA)
• Surge Protection: Built-in
• Environmental Protection: IP66
• Override: Requires min. 10V
• Recommended Fuse: 150A
• Approvals: EMC

Kit Comprises:

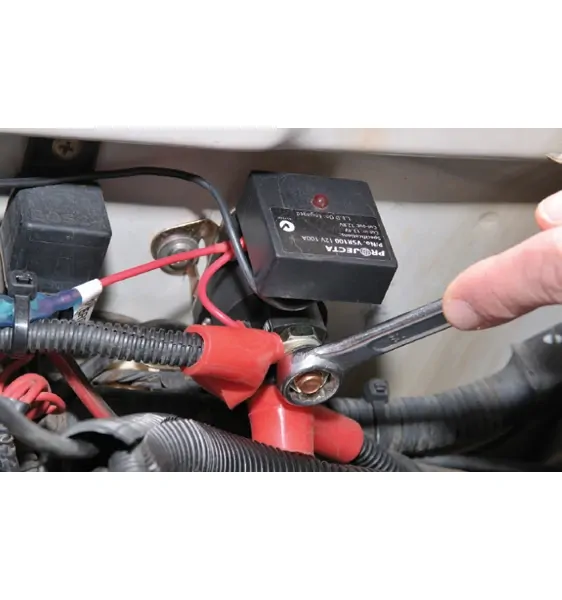

• 100A voltage sensitive relay (P/No. VSR100)

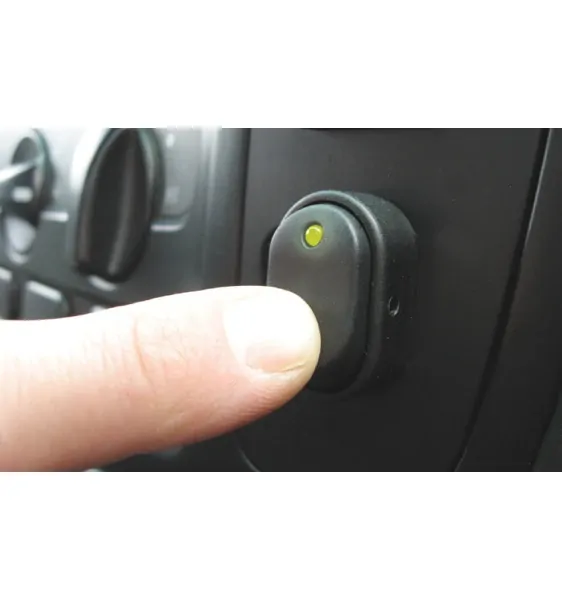

• Rocker switch
• Lugs
• Terminals
• Heat shrink & cable ties
• 4m main cable & 60cm aux earth cable (6 B&S)
• Auxiliary battery terminals (2 x pos, 1 x neg)
