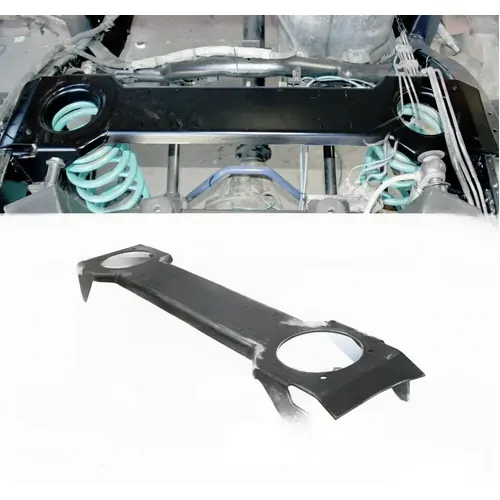

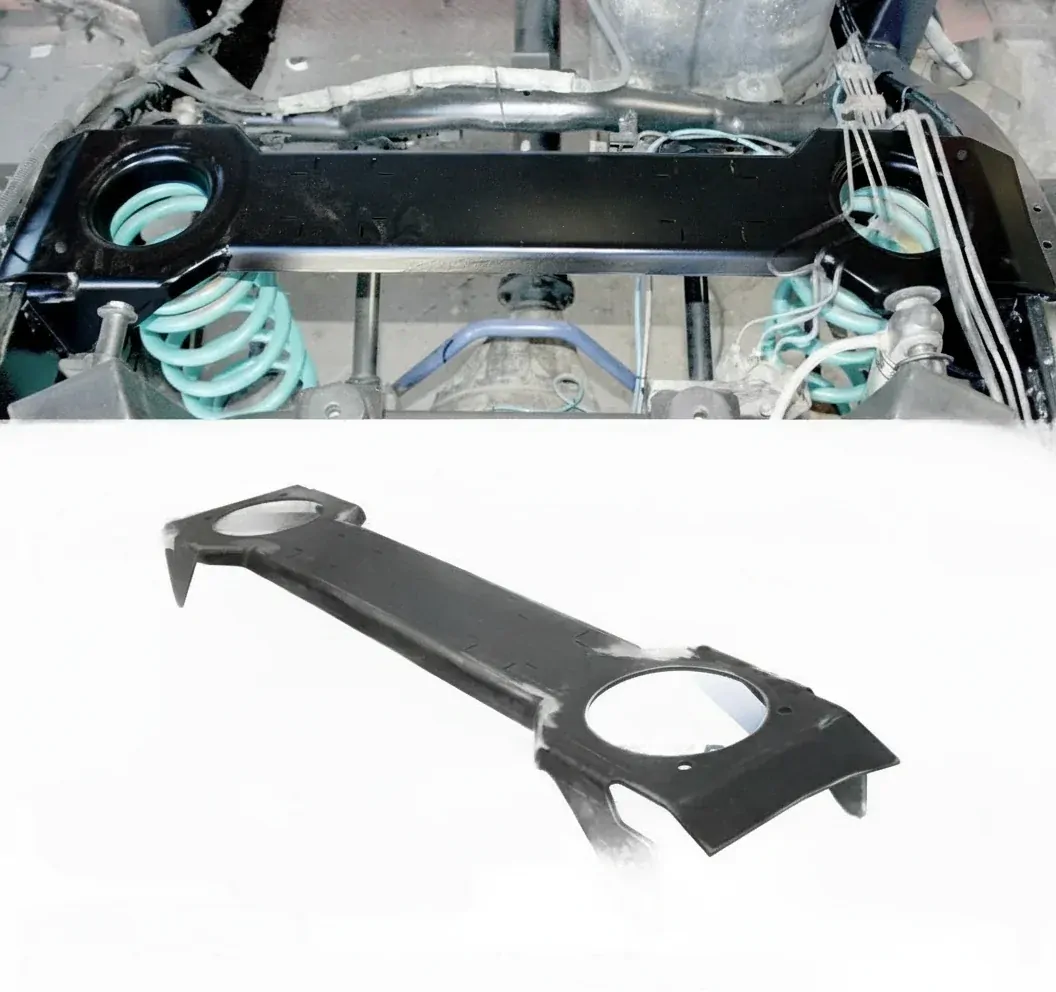

PSR's Nissan Patrol GQ-GU weld on rear coil tower brace is designed as a permanent solution to the chassis' fragile rear towers. Made from 6mm 350MPA steel it features 4 folded corner ears that once welded fish plate the area prone to cracking on the front and rear side of the tower are. It also has side folds to run on the top edge of the rails further supporting chassis movement and reducing overall stress on your chassis. Another critical feature is the step in the rear edge to clear the factory proportioning valve and brake lines. Without this step the competitor's product requires you to bend the factory brake lines to clear the brace potentially causing brake line failure. The PSRPAT-078 is supplied raw ready to weld on. The clever design also allows the mounting of a remote reservoir to the top side of the brace in 2 positions using additionally purchased PSRUNI-087 (one kit per reservoir). If you're not confident with welding this brace onto your chassis then please see our bolt on solution, PSRPAT-011.
- Solid 6mm plate across both towers
- Smart buy for hard-working Patrols
- Keeps brake lines in factory position
- Remote reservoir mounts already built in
- Raw steel lets you choose final coating
- Vehicle compatibility: Nissan Patrol GQ and GU rear chassis
- Type: Weld-on rear coil tower brace
- Material thickness: 6mm steel
- Steel grade: 350MPA
- Construction: Folded plate with 4 corner ears
- Side folds run along top edge of chassis rails
- Rear edge stepped to clear factory proportioning valve and brake lines
- Supplied finish: Raw steel ready to weld
- Remote reservoir mounts: 2 positions using optional PSRUNI-087 kit
- Alternative option: Bolt-on brace part number PSRPAT-011
- 1 x PSR Nissan Patrol GQ-GU rear weld-in coil tower brace (supplied raw, unwelded)
| SKU | PSRPAT-078 |
|---|---|
| Barcode # | OEBC690133 |
| Brand | Performance Suspension Racing |
| Shipping Weight | 12.5000kg |
| Shipping Width | 0.350m |
| Shipping Height | 0.150m |
| Shipping Length | 1.035m |
