Description
Designed from the ground up, the Model 37 trailer lamp has been engineered for use on boat trailers where regular submersion is common. The lamps are protected from water ingress with a two-stage system that incorporates ultrasonic welding and a two-part epoxy glue. This allows the lamps to comply with the stringent IP68 standard.
SPECIFICATIONS
-
Technical Information
| INPUT VOLTAGE RANGE | 12V |
|---|---|
| CURRENT DRAW | 0.13A at 12V (Indicator/Stop), 0.03A at 12V (Tail), 0.08A at 12V (Licence Plate), 0.04A at 12V (Marker Lamps) |
| IP RATING | IP66 and IP68 |
| SIZE | 80mm (W) x 150mm (L) x 28mm (H) |
| ADR | 6/00 (cat 2a), 47/00, 48/00, 49/00 |
| COMPRISES | 1x 12V L.E.D slimline rear stop/tail, direction indicator lamp with in-built retro reflector, 0.5m lead and waterproof connector (93730); 1x 12V L.E.D slimline rear stop/tail, direction indicator with licence plate lamp and in-built retro reflector, 0.5m lead and waterproof connector (93734); |
Features
- Proven LED trailer lamp kit for 12V
- Built tough for regular ramp dunking
- Low current draw suits long wiring runs
- All rear lighting functions in one setup
- ADR approved for on-road trailer use
- Smart buy for boat and marine trailers
Specifications
- Input voltage: 12V
- Current draw: 0.13A at 12V (indicator/stop)
- Current draw: 0.03A at 12V (tail)
- Current draw: 0.08A at 12V (licence plate)
- Current draw: 0.04A at 12V (marker lamps)
- IP rating: IP66 and IP68
- Lamp size: 80 mm (W) x 150 mm (L) x 28 mm (H)
- ADR approvals: 6/00 (cat 2a), 47/00, 48/00, 49/00
- Construction: ultrasonic welded housing with two-part epoxy sealing
- Application: submersible trailer lamps engineered for boat trailers
- 1 x 12V LED slimline rear stop/tail and direction indicator lamp with in-built retro reflector, 0.5 m lead and waterproof connector (93730)
- 1 x 12V LED slimline rear stop/tail and direction indicator lamp with licence plate lamp and in-built retro reflector, 0.5 m lead and waterproof connector (93734)
| SKU | 93730BL2 |
|---|---|
| Barcode # | 9314464231162 |
| Brand | Narva |
| Shipping Weight | 0.6250kg |
| Shipping Width | 0.245m |
| Shipping Height | 0.050m |
| Shipping Length | 0.255m |

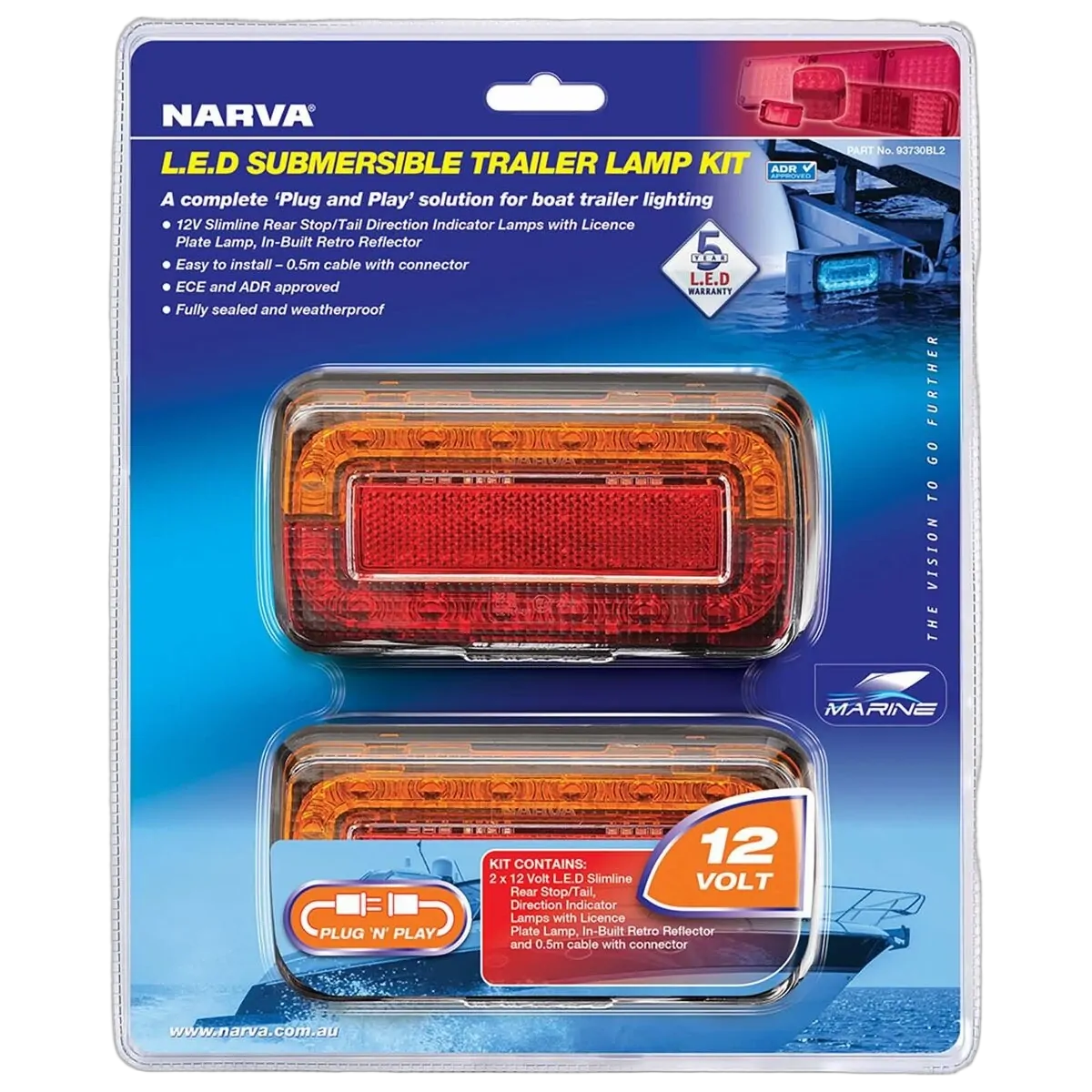

Narva Model 37 12V Led Slimline Rear Stop/Tail, Direction Indicator Lamps
SKU: 93730BL2
Sale price
REG $69.00
SALE ENDS
Dispatch in 7 days
More infoMake 4 payments of $16.12 over 8 weeks and get it now!
