Description

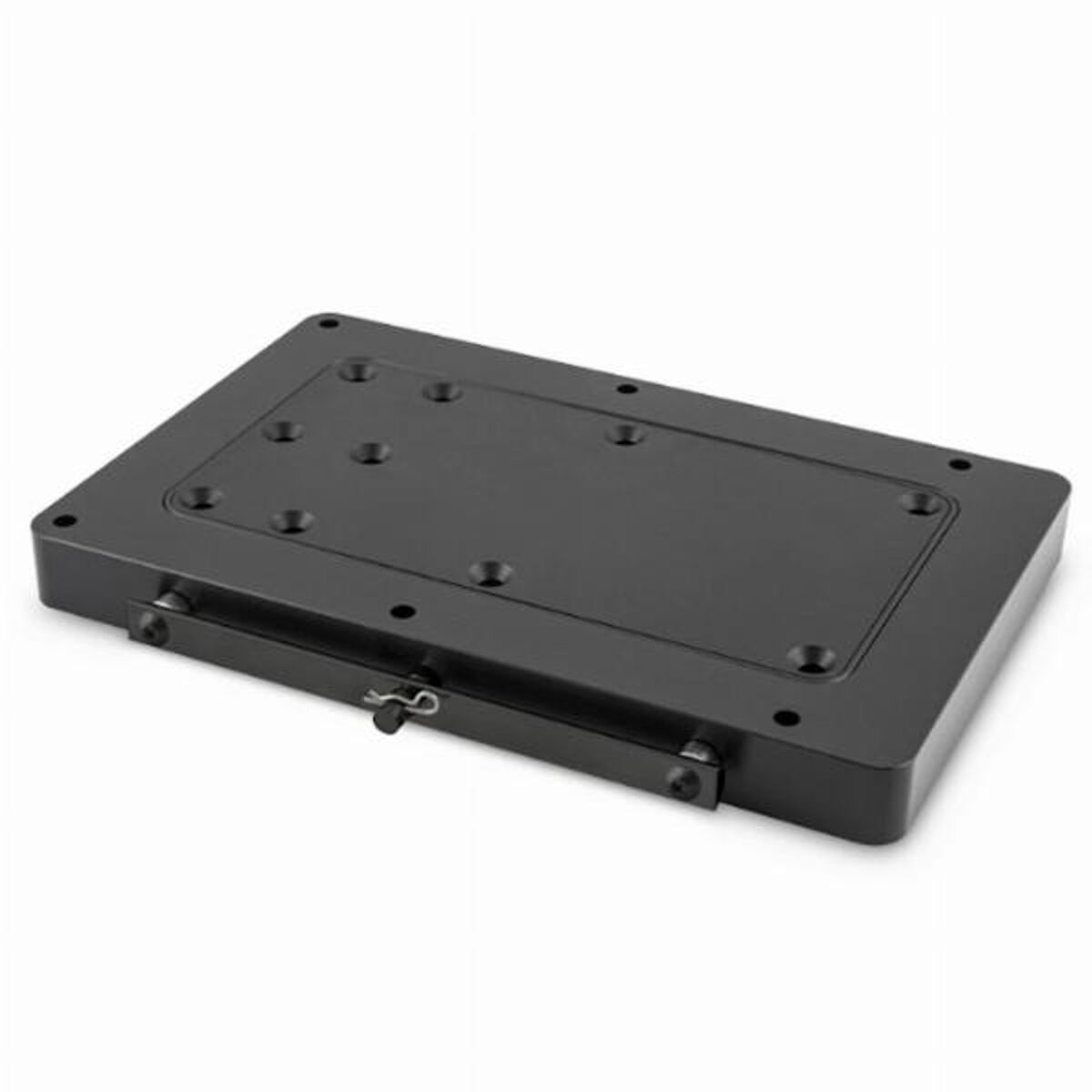

Easily remove your electric-steer, bow-mount trolling motor featuring QUEST technology. High-yield composite construction is super strong and impervious to
corrosion and specifically designed for higher thrust motors and longer shaft lengths. Low-profile design leaves deck clear when motor is removed. Locking
handle with stainless steel pins can be secured with padlock (padlock not included, sold separately).
SPECS
| BLA Code | Colour |
| 604200 | White |
| 604202 | Black |
Features
- Quick release mount for QUEST motors
- High-yield composite built to last
- Stainless pins hold motor solid
- Low-profile base keeps deck tidy
- Smart buy for high-thrust setups
Specifications
- Application: Electric-steer bow-mount trolling motors featuring QUEST technology
- Construction: High-yield composite bracket body
- Corrosion resistance: Composite material impervious to corrosion
- Suitability: Specifically intended for higher thrust motors and longer shaft lengths
- Design: Low-profile design to keep deck clear when motor is removed
- Security: Locking handle with stainless steel pins
- Padlock: Handle can be secured with separate padlock (not included)
- Colour option: Black (BLA code 604202)
- Alternate colour: White (BLA code 604200)
- Mounting holes: All mounting holes diameter approximately 13/32 in (9.9 mm)
- Maximum distance to rub rail: 2-1/2 in (63.5 mm)
- Overall plate length: 19-1/4 in (488.9 mm)
- Main mounting field length: 12-1/4 in (311.2 mm)
- Main mounting field width: 6-1/2 in (171.5 mm)
- Outer mounting width between end holes: 5-1/4 in (133.4 mm)
- Inner mounting width between rows: 2-5/8 in (66.7 mm)
- Side edge clearance to first hole: 3/4 in (19.1 mm)
- Hole spacing along length (end to first inner): 5-3/8 in (136.5 mm)
- Central hole spacing along length: 5-3/8 in (136.5 mm)
- Edge radius corner offset: 3/8 in (9.5 mm)

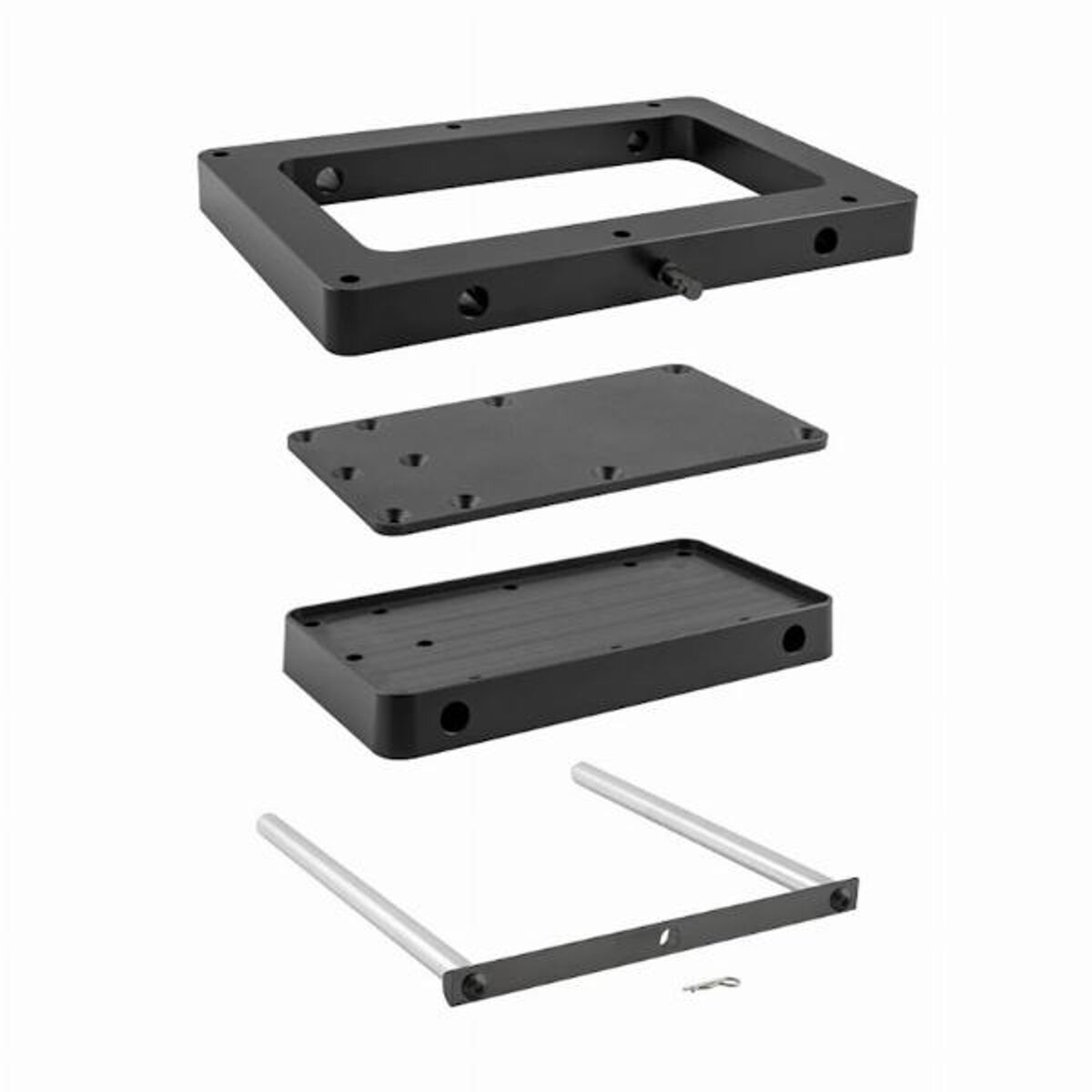

- 1 x Minn Kota Quick Release Bracket Quest in black
- 1 x top mounting plate
- 1 x bottom base plate
- 1 x transverse locking bar with stainless steel pins
- 2 x round support rods
- 1 x locking pin with retaining clip
| SKU | 604202 |
|---|---|
| Barcode # | 029402049318 |
| Brand | Minn Kota |
| Shipping Weight | 5.2850kg |
| Shipping Width | 0.280m |
| Shipping Height | 0.050m |
| Shipping Length | 0.510m |
