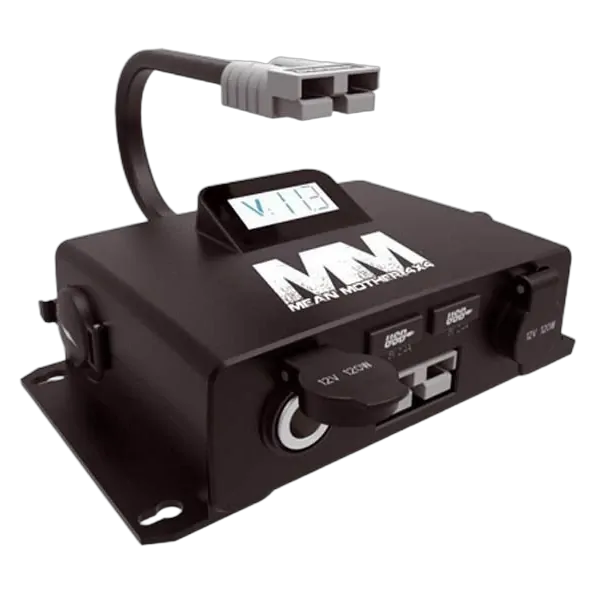

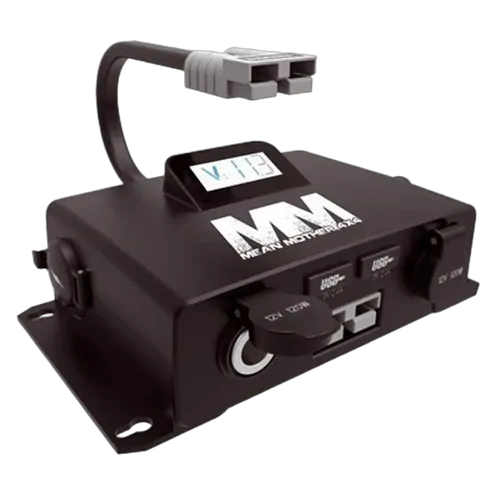

The DC12V Power Distribution Box allows you to re-distribute the power stored in your auxiliary battery and power multiple devices, without relying on mains power.

Connecting with an Anderson style plug, the unit offers DC12V Aux, DIN/Merit, and USB device connectivity, as well as a 50A Anderson style output to cover most devices including fridges, lighting, fans, air compressors, and smart devices.

Product specifications:

• Overall Dimensions: 200mm x 120mm x 53mm
• 2 x 50A Anderson style plugs (1-in, 1-out)
• 2 x DC12V/120W/10A Accessory sockets with spring covers and auto-reset circuit breaker
• 2 x DC12V/120W/10A DIN/Merit sockets with spring covers and auto-reset circuit breaker
• 2 x DC5V USB Sockets (2.4A each) with covers and overload protection
• 4 x surface mounting holes (screws not included)

Please note:

An Anderson style plug is required to power the MM 12V Power Distribution Box. If one is not already installed, we recommend that installation only be carried out by a licenced auto electrician to avoid injury.

We recommend using a dual battery system to avoid draining the primary power source.

DO NOT use in situations where unit will be exposed to water/rain.
