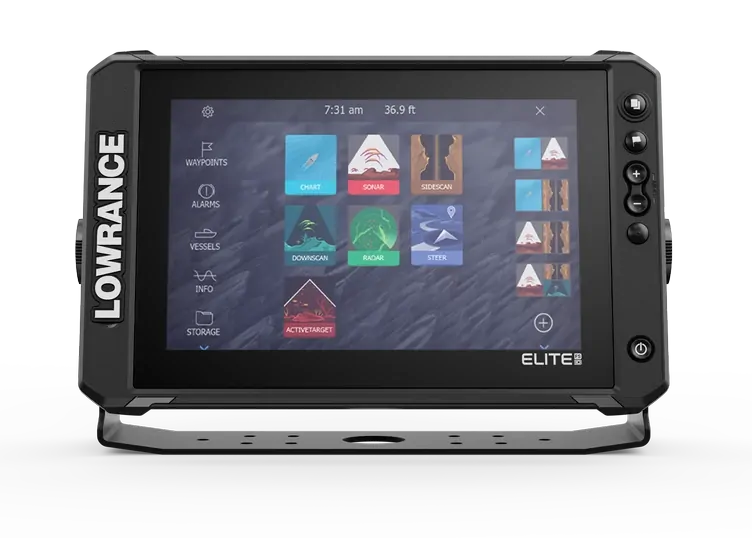

Elite™ FS 10 No Transducer (AUS/NZ): The Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP® Discover Onboard charts – to help you make the most of your time on the water. *Active Imaging HD requires S3100 Module.
Key Features
- ActiveTarget™ 2 Live Sonar ready
- Active Imaging 3-in-1 ready
- Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
- FishReveal™
- Preloaded C-MAP Enhanced Embedded, plus mapping options including C-MAP, Navionics® and more C-MAP® Easy Routing, Navionics® Autorouting™ capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install.From ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging™ HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Discover Onboard Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

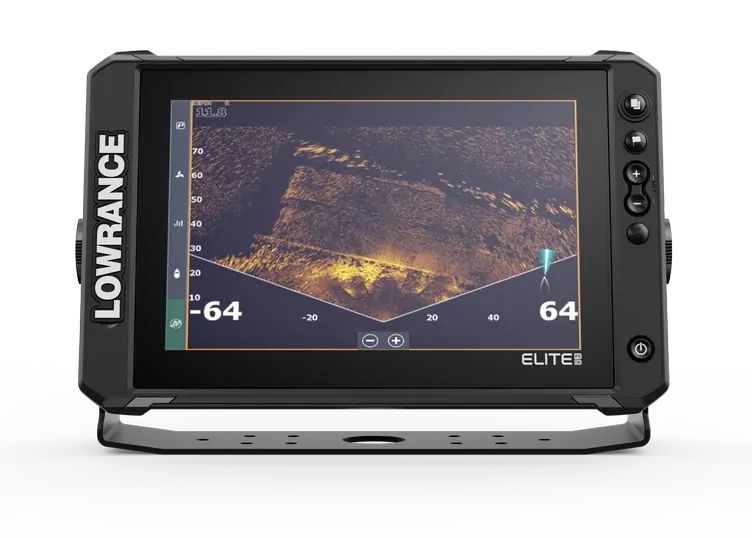

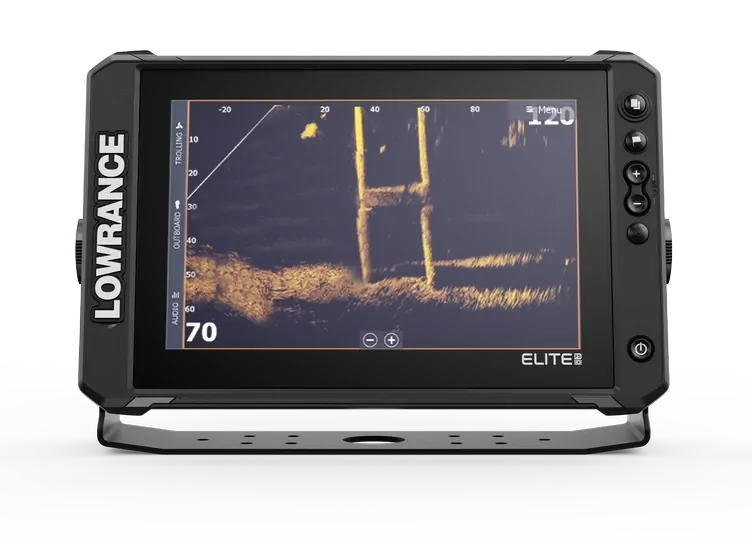

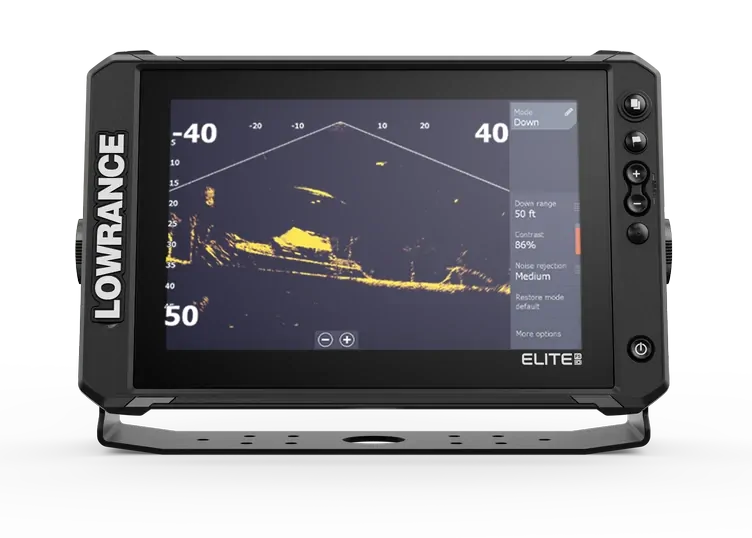

Target Fish Live with ActiveTarget™ 2 Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Note: No splitscreen options in 10 & 12 Models

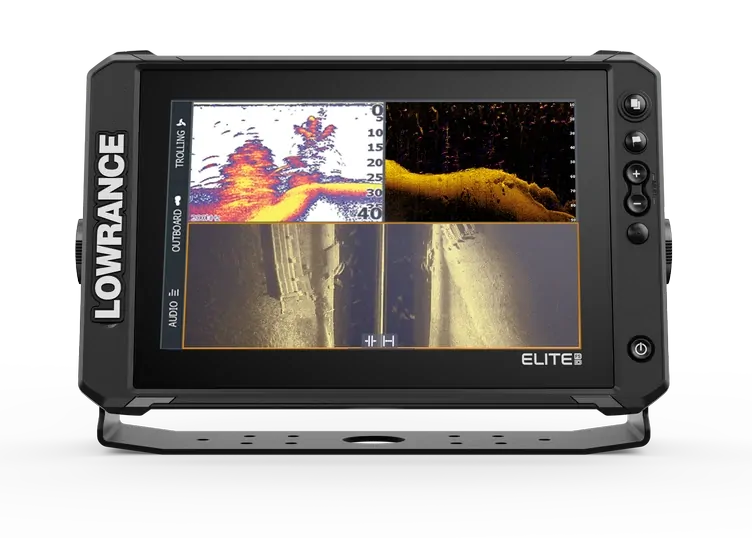

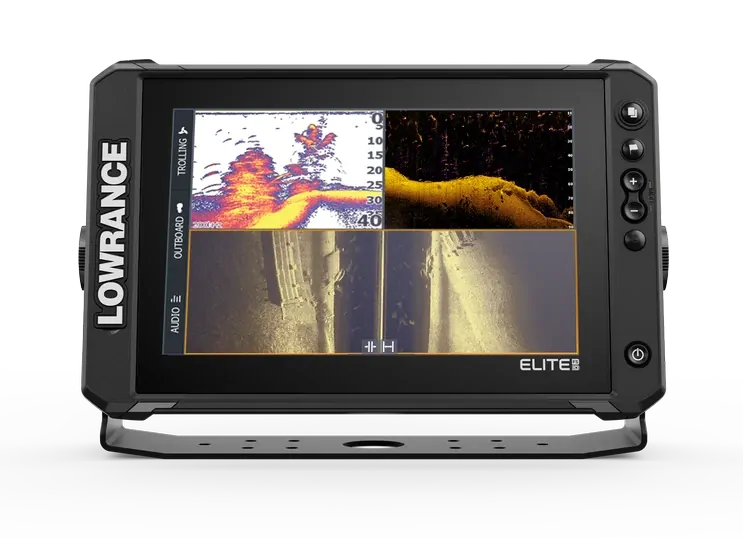

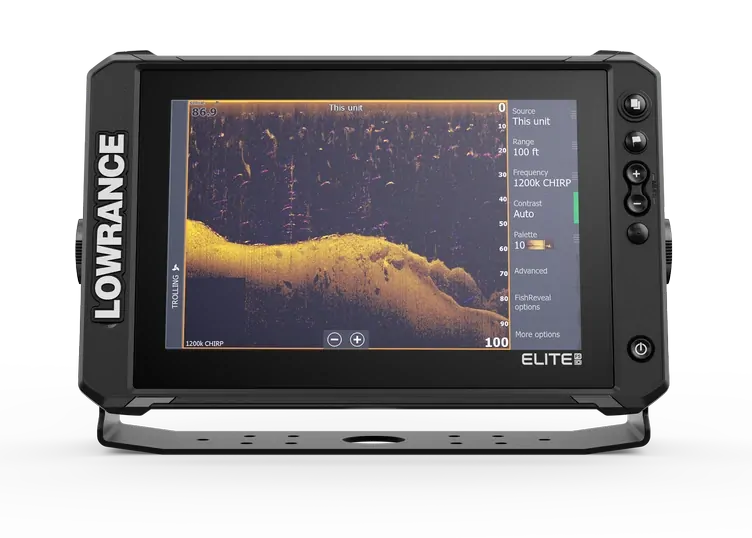

Find More Fish with Proven Lowrance Sonar
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

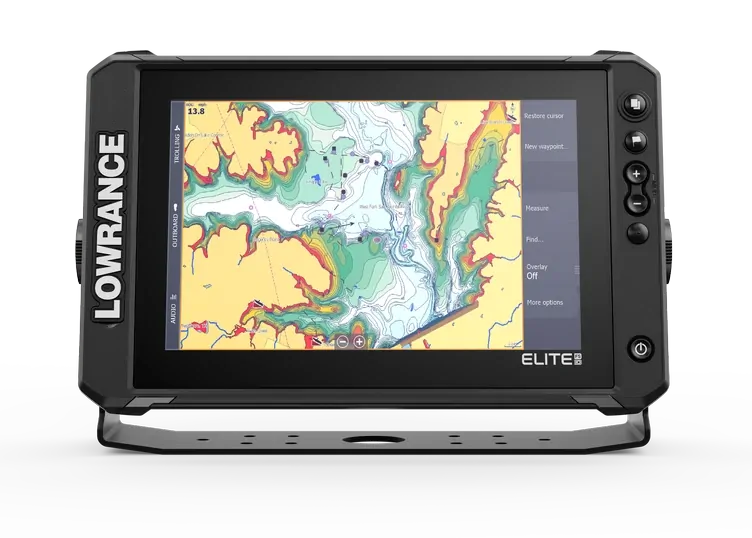

Find Key Fishing Areas with C-MAP® Enhanced Embedded
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Enhanced Embedded inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with C-MAP® Enhanced Embedded charts. *Active Imaging HD requires S3100 Module
SPECIFICATIONS
DISPLAY
| Resolution | 1280X800 |
| Viewing angle in degrees | 85° top/bottom, 85° left/right |
| Brightness | > 1200 nits |
| Touch screen | Multi-touch |
PHYSICAL
| Weight | 3.66lb (1.66kg) |
| Compass Safe Distance | 2.1 ft (65cm) |
ENVIRONMENTAL
| Operating temperatature range | -15°C to +55°C (5°F to 131°F) |
| Storage Temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof Rating | IPX6 and IPX7 |
ELECTRICAL
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Recommended Fuse Rating | 3 Amps |
| Power Consumption Maximum | 34.5 W (2.5 A at 13.8 V DC) |
INTERFACE/CONNECTIVITY
| NMEA 2000 | 1 port (Micro-C connector) |
| Data Card Reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth | 4.0 with support for Bluetooth® Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
SHIPPING
| Barcode | 9420064137480 |
|---|---|
| Harmonized Code | 9014.80.2000 |
| ECCN | 6A991 |
| Global Code | New |
| NAFTA Compliant | N |
| NAFTA Code | |
| Origin | TW |
| Master Pack Weight | 25.9 lb |
| Master Pack Length | 16.6" |
| Master Pack Height | 17.8" |
| Master Pack Width | 14.7" |
| Unit Weight | 8 lb |
| Unit Length | 14.1" |
| Unit Height | 5.5" |
| Unit Width | 16" |
- 10 inch screen shows plenty detail
- 34.5 W suits small boat batteries
- IPX6/IPX7 build handles spray
- C-MAP AUS/NZ maps already loaded
- NMEA 2000 port for shared data
- Ethernet ready for extra modules
- Display resolution: 1280 x 800
- Display brightness: > 1200 nits
- Display viewing angle: 85° top/bottom and 85° left/right
- Display type: high-resolution multi-touch touchscreen
- Unit weight: 3.66 lb (1.66 kg)
- Compass safe distance: 2.1 ft (65 cm)
- Operating temperature range: -15°C to +55°C (5°F to 131°F)
- Storage temperature range: -20°C to +60°C (4°F to 140°F)
- Waterproof rating: IPX6 and IPX7
- Supply voltage: 12 V DC (10–17 V DC minimum to maximum)
- Recommended fuse rating: 3 amps
- Maximum power consumption: 34.5 W (2.5 A at 13.8 V DC)
- NMEA 2000 connectivity: 1 port with Micro-C connector
- Data card reader: 1 microSD / SDXC slot
- Ethernet connectivity: 1 port with 5-pin 100Base-T connector
- Sonar connectivity: 1 port with 9-pin connector
- Internal Wi-Fi: 802.11 b/g/n (no wireless networking between units)
- Bluetooth: version 4.0 with Bluetooth Classic support
- GPS: 10 Hz high-speed update with WAAS, MSAS, EGNOS and GLONASS support
- Shipping barcode: 9420064137480
- Harmonized code: 9014.80.2000
- ECCN: 6A991
- Country of origin: TW
- Master pack weight: 25.9 lb
- Master pack length: 16.6" (421.64 mm)
- Master pack height: 17.8" (452.12 mm)
- Master pack width: 14.7" (373.38 mm)
- Unit shipping weight: 8 lb
- Unit shipping length: 14.1" (358.14 mm)
- Unit shipping height: 5.5" (139.7 mm)
- Unit shipping width: 16" (406.4 mm)
| SKU | 000-16433-001 |
|---|---|
| Barcode # | 9420064137480 |
| Brand | Lowrance |
| Shipping Weight | 11.8000kg |
| Shipping Width | 0.373m |
| Shipping Height | 0.451m |
| Shipping Length | 0.422m |

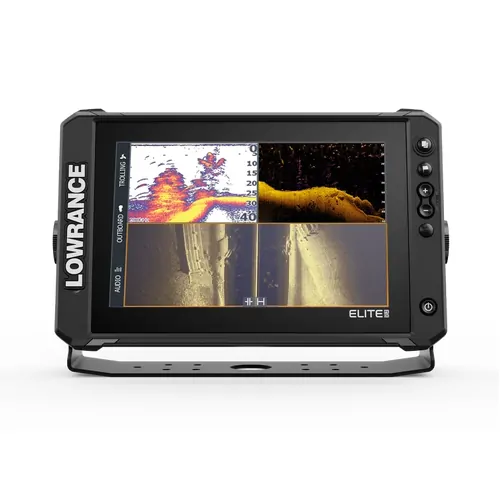

Lowrance Elite FS 10" NOXD - Maps (AUS/NZ)
