Plates are constructed of electro-polished 4.6mm laser cut 304G stainless steel, heavy-duty hinge with 9.5mm diameter pin. Full transom back plate with remote gland-seal, welded stainless steel upper and adjustable lower C-channel brackets.
Kit Includes:
• 2 x 7-gauge stainless steel electro-polished blades.
• 2 x 101XD Actuators with 1.8m cable and Deutsch connectors.
• 1 x Set of stainless steel nuts and bolts.
• 2 x Zinc anodes.
• Lenco owner’s installation manual.
• Compliance: CE Certified.
• 5 Year Warranty (Recreational Use).
SPECIFICATIONS
| Length | 18 inch (457mm) |
| Width | 12 inch (305mm) |
| Series | Hi Performance Actuator Kit |
| Switch | Optional |
| Volts | 12V |
| Hinge Height | 254mm |
| Min. Transom Height | 267mm |
| Approx Boat Length | 5.8Mtr - 10.4Mtr |
| Finish | Electro Polished |
| Note | Switches sold separately. Actuator extension harnesses sold separately (2 required). Boatmounting hardware not supplied. |
- 4.6 mm 304G stainless plates
- 18 x 12 inch hi performance blades
- Suits 5.8 m to 10.4 m planing hulls
- 12V 101XD actuators with 1.8 m cables
- Heavy-duty hinge with 9.5 mm pin
- CE certified kit with 5 year warranty
• Plate material: 4.6 mm laser-cut 304G electro-polished stainless steel
• Blade size: 18 inch (457 mm) length x 12 inch (305 mm) width
• Series: Hi Performance Actuator Kit
• Voltage: 12 V
• Hinge: heavy-duty with 9.5 mm diameter pin
• Hinge height: 254 mm
• Minimum transom height: 267 mm
• Approximate boat length range: 5.8 m – 10.4 m
• Finish: electro-polished stainless steel
• Compliance: CE certified
• Warranty: 5-year warranty for recreational use
• Switch: optional and sold separately
• Actuator extension harnesses: 2 required and sold separately
• Boat mounting hardware: not supplied
• 2 x 7-gauge electro-polished stainless steel blades
• 2 x Lenco 101XD actuators with 1.8 m cables and Deutsch connectors
• 1 x set of stainless steel nuts and bolts
• 2 x zinc anodes
• 1 x Lenco owner’s installation manual
| SKU | 55468 |
|---|---|
| Barcode # | 9330420160994 |
| Brand | Lenco |
| Shipping Weight | 12.0000kg |

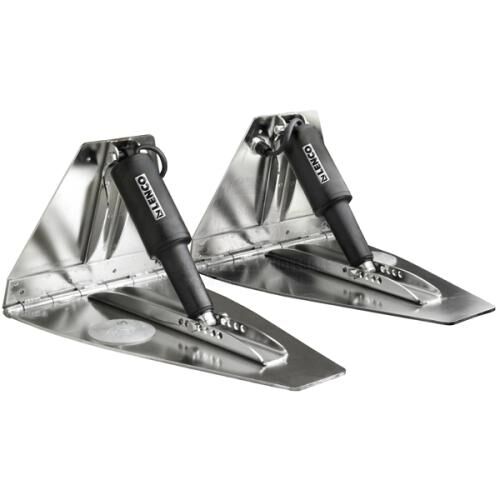

Lenco Trim Tab Kit Hi Performance 18X12 12V No Switch - Polished Plates
