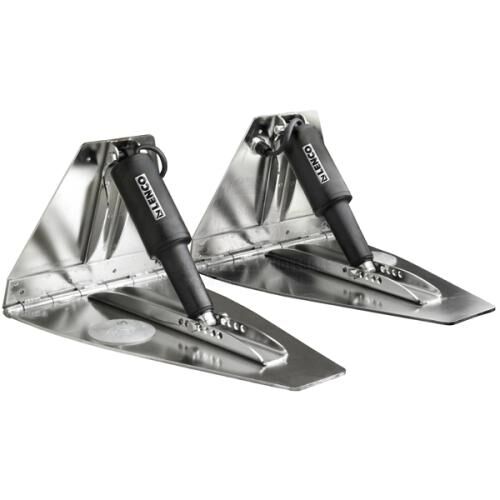

Plates are constructed of electro-polished 4.6mm laser cut 304G stainless steel, heavy-duty hinge with 9.5mm diameter pin. Full transom back plate with remote gland-seal, welded stainless steel upper and adjustable lower C-channel brackets.
Kit Includes:
• 2 x 7-gauge stainless steel electro-polished blades.
• 2 x HD Actuators (1000lbs Push) with 1.8m cable and Deutsch connectors.
• 1 x LED Indicator Key Pad Assembly (55628).
• 1 x Actuator control box (55627).
• 1 x Set of stainless steel nuts and bolts.
• 2 x Zinc anodes.
• Lenco owner’s installation manual.
• Compliance: CE Certified.
• 5 Year Warranty (Recreational Use).
SPECIFICATIONS
| Series | Hi Performance Acuator Kit |
| Switch | 55628 & 55627 |
| Volts | 12V |
| Size (L x W) | 21 inch (533mm) x 14 inch (355mm) |
| Hinge Height | 254mm |
| Min. Transom Height | 267mm |
| Approx Boat Length | 7.3Mtr - 12.8Mtr |
| Finish | Electro Polished |
| Note | Boat-mounting hardware not supplied. Actuator extension harness not supplied. |
- 4.6 mm 304G stainless trim plates
- 21 x 14 inch size for solid lift
- 1000 lb actuators for loaded transoms
- LED keypad and control box included
- Suits 7.3 m to 12.8 m boats
- Backed by 5 year recreational warranty
- Series: Hi Performance Actuator Kit
- Switch models: 55628 and 55627
- Operating voltage: 12V DC
- Plate material: 4.6 mm laser-cut 304G stainless steel
- Plate finish: electro-polished stainless steel
- Trim tab size (L x W): 21 inch (533 mm) x 14 inch (355 mm)
- Hinge height: 254 mm
- Minimum transom height required: 267 mm
- Approximate suitable boat length: 7.3 m – 12.8 m
- Actuator push rating: 1000 lbs
- Actuator cable length: 1.8 m with Deutsch connectors
- Compliance certification: CE certified
- Recreational-use warranty period: 5 years
- Note: Boat-mounting hardware not supplied
- Note: Actuator extension harness not supplied
- 2 x 7-gauge stainless steel electro-polished blades
- 2 x HD actuators (1000 lbs push) with 1.8 m cable and Deutsch connectors
- 1 x LED indicator key pad assembly (55628)
- 1 x actuator control box (55627)
- 1 x set of stainless steel nuts and bolts
- 2 x zinc anodes
- 1 x Lenco owner’s installation manual
| SKU | 55484 |
|---|---|
| Barcode # | 9330420211009 |
| Brand | Lenco |
| Shipping Weight | 12.0000kg |
