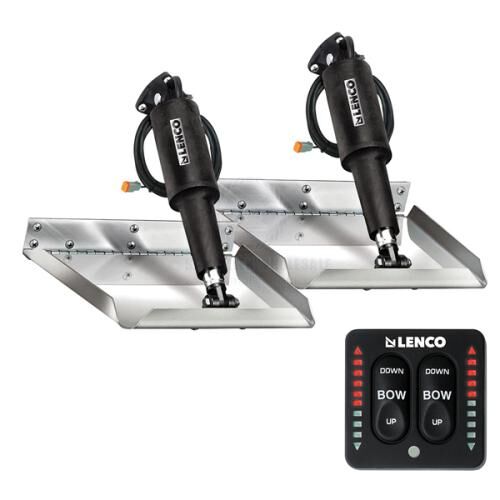

FEATURES
• 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges with a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin.
• 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
• 1 x LED Indicator Switch Kit (Built-in retractor).
• 2 x actuator extension wiring harness (6m) with Deutsch connectors.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x lower mounting bracket.
• Lenco owner’s installation manual.
• 5 Year Warranty (Recreational Use).
SPECIFICATIONS
| Switch Kit | LED Indicator |
| Volts | 12V |

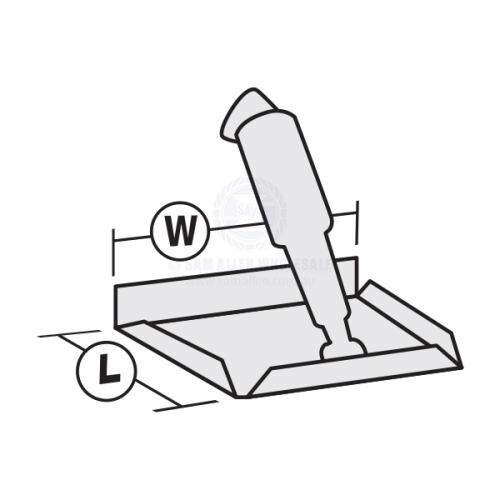

| Size (L x W) | 12 inch (305mm) x 9 inch (228mm) |
| Hinge Height | 51mm |

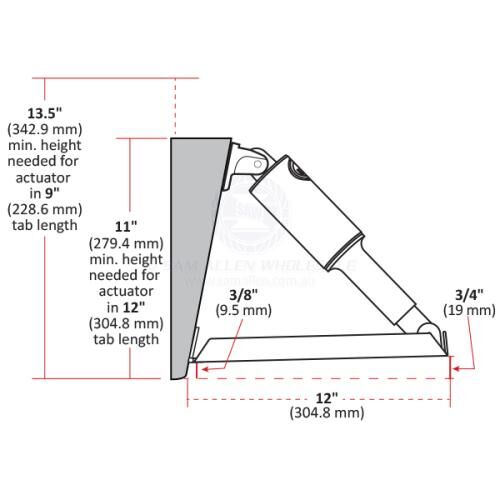

| Min. Transom Height | 279mm |
| Approx. Boat Length | 4.2Mtr - 5.5Mtr |
| Finish | Electro Polished |
| Note | 24 Volt Option Available. |
- 12x9 inch plates steady smaller boats
- 304G stainless gear built to work hard
- LED switch keeps trim position clear
- 12V setup suits common marine electrics
- Electro-polished finish goes the distance
- Five year recreational warranty is solid
- Switch kit type: LED indicator.
- Operating voltage: 12V.
- Trim tab size (L x W): 12 inch (305mm) x 9 inch (228mm).
- Hinge height: 51mm.
- Minimum transom height: 279mm.
- Approximate boat length suitability: 4.2m – 5.5m.
- Plate material: 12 gauge (2.7mm) 304G stainless steel.
- Plate finish: electro polished.
- Hinge pin diameter: 1/8 inch.
- Edge height: 1 inch turned up edges.
- Taper: 5 degree taper to trailing edge.
- Warranty: 5 year warranty for recreational use.
- Note: 24 volt option available.
- 2 x edge mount plates, 12 gauge (2.7mm) 304G stainless steel with 1 inch turned up edges, 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin.
- 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
- 1 x LED indicator switch kit with built-in retractor.
- 2 x actuator extension wiring harnesses (6m) with Deutsch connectors.
- 1 x set of stainless steel fasteners.
- 2 x upper mounting brackets with gland seals.
- 2 x lower mounting brackets.
- 1 x Lenco owner’s installation manual.
| SKU | 55496 |
|---|---|
| Barcode # | 9330420186413 |
| Brand | Lenco |
| Shipping Weight | 12.0000kg |
