FEATURES
• 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges with a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin.
• 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
• 1 x LED Indicator Switch Kit (Built-in retractor).
• 2 x actuator extension wiring harness (6m) with Deutsch connectors.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x lower mounting bracket.
• Lenco owner’s installation manual.
• 5 Year Warranty (Recreational Use).
SPECIFICATIONS
| Switch Kit | LED Indicator |
| Volts | 12V |

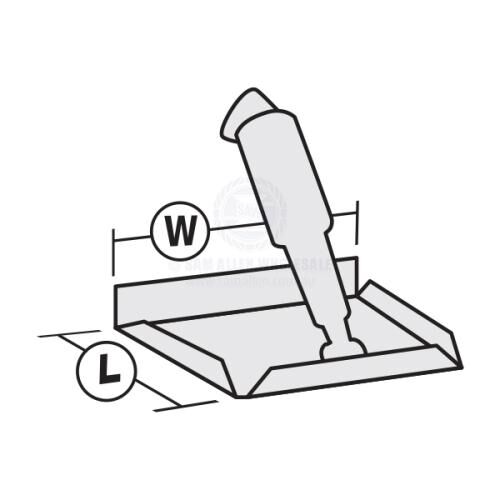

| Size (L x W) | 12 inch (305mm) x 12 inch (305mm) |
| Hinge Height | 51mm |

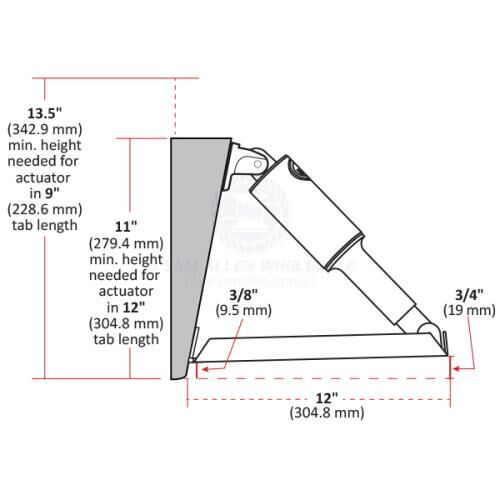

| Min. Transom Height | 279mm |
| Approx. Boat Length | 5.2Mtr - 9.2Mtr |
| Finish | Electro Polished |
| Note | 24 Volt Option Available. |
- 12x12 tabs for better bow control
- 304G stainless plates built tough
- LED helm switch for clear feedback
- 12V actuators with long harnesses
- Smart buy for regular coastal trips
- Switch kit type: LED indicator.
- Operating voltage: 12V.
- Plate size (L x W): 12 inch (305mm) x 12 inch (305mm).
- Plate material: 12 gauge (2.7mm) 304G stainless steel.
- Hinge pin diameter: 1/8 inch.
- Hinge height: 51mm.
- Minimum transom height: 279mm.
- Approximate boat length range: 5.2m to 9.2m.
- Plate edges: 1 inch turned up with 5 degree taper on both sides.
- Finish: electro polished.
- Actuator cable length: 1.8m with Deutsch connectors.
- Extension harness length: 6m with Deutsch connectors.
- Warranty: 5 years (recreational use).
- Note: 24 volt option available (separate kit).
- 2 x edge mount plates, 12 gauge (2.7mm) 304G stainless steel with 1 inch turned up edges, 5 degree taper on both sides and 1/8 inch diameter hinge pin.
- 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
- 1 x LED indicator switch kit with built-in retractor.
- 2 x actuator extension wiring harnesses (6m) with Deutsch connectors.
- 1 x set of stainless steel fasteners.
- 2 x upper mounting brackets with gland seals.
- 2 x lower mounting brackets.
- 1 x Lenco owner's installation manual.
- 5 year warranty (recreational use).
| SKU | 55497 |
|---|---|
| Barcode # | 9330420186420 |
| Brand | Lenco |
| Shipping Weight | 12.0000kg |

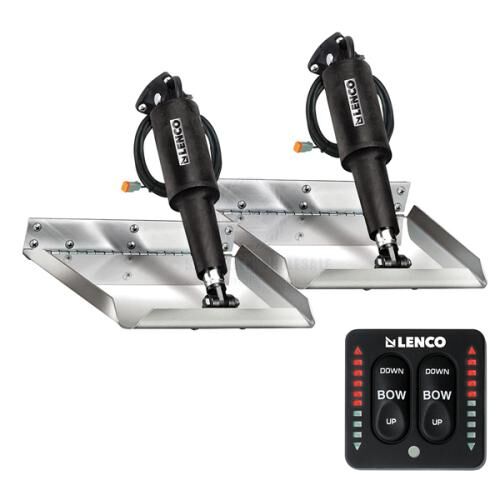

Lenco Trim Tab Kit Edgemount 12X12 12V Led Switch - Polished Plates
