Description
FEATURES
• 1000 lbs push.
• Highly durable Polyphthalamide housing.
• Larger high torque motor.
• Dual gear train parallel configuration.
• 3/8 inch upper and lower mounting capability.
• 14 AWG gauge wire with Deutsch connectors.
• Compatible with present switches.
SPECIFICATIONS

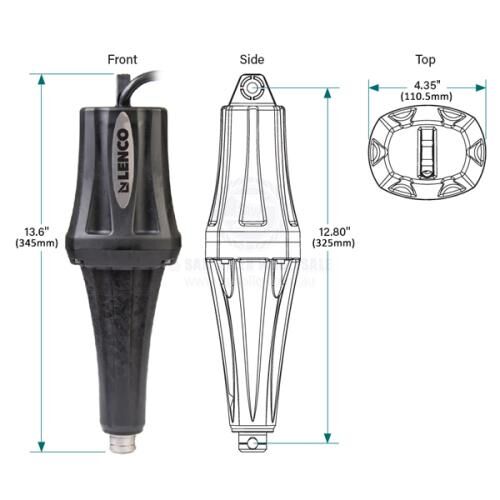

| Actuator Series | Hi Performance |
| Volts | 12V |
| Stroke | 57mm (2-1/4 inch) |
| Wire Length | 6ft (1.8m) |
| Top Cap Hole Dia. | 3/8 inch |
| End Hole Dia. | 3/8 inch |
| Note | All actuators include 6ft (1.8m) cable with bolts and Deutsch plug. |
Features
- 1000 lbs push handles loaded hulls
- 57mm stroke keeps trim adjustments sharp
- Polyphthalamide body stands up to spray
- 3/8 inch mounts suit standard Lenco gear
- 6ft cable simplifies transom cable runs
- Deutsch plug keeps connections solid at sea
Specifications
- Brand: Lenco
- Actuator series: Hi Performance
- Voltage: 12V
- Stroke length: 57mm (2-1/4 inch)
- Maximum push force: 1000 lbs
- Housing material: Polyphthalamide
- Motor type: Larger high torque motor
- Gear train: Dual gear train parallel configuration
- Upper mounting: 3/8 inch capability
- Lower mounting: 3/8 inch capability
- Top cap hole diameter: 3/8 inch
- End hole diameter: 3/8 inch
- Wire gauge: 14 AWG
- Cable length: 6ft (1.8m)
- Connector type: Deutsch plug
- Compatibility: Compatible with present Lenco actuator switches
- Lenco heavy duty trim tab actuator
- Integrated 6ft (1.8m) cable with Deutsch plug
- Mounting bolts
| SKU | 55390 |
|---|---|
| Barcode # | 9330420210989 |
| Brand | Lenco |
| Shipping Weight | 12.0000kg |

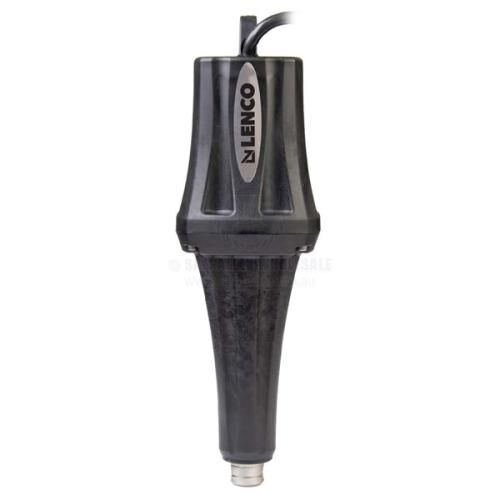

Lenco Trim Tab Actuator Heavy Duty 12V 57mm Stroke 3/8 Mount
