Description
FEATURES
• 500lbs push (101, 101XD, 101XDS, 102, 102XD & 102 HD Series).
• 5 Year Warranty (Recreational Use).
SPECIFICATIONS
| Actuator Series | 102XD |
| Volts | 12V |
| Stroke | 108mm (4-1/4 inch) |
| Wire Length | 6ft (1.8m) |
| Top Cap Hole Dia. | 5/16 inch |
| End Hole Dia. | 5/16 inch |
| Note | All actuators include 6ft (1.8m) cable with bolts and Deutsch plug |
Features
- 108mm stroke keeps trim response sharp
- 500 lbs push for consistent adjustment
- 12V gear suits standard boat electrics
- 6ft cable with sealed Deutsch plug
- 5/16 inch mounts fit common hardware
Specifications
- Actuator series: 102XD
- System voltage: 12V
- Stroke length: 108mm (4-1/4 inch)
- Maximum push force: 500 lbs
- Wire length: 6ft (1.8m)
- Top cap hole diameter: 5/16 inch
- End hole diameter: 5/16 inch
- Included loom: 6ft (1.8m) cable with bolts and Deutsch plug
- Recreational-use warranty: 5 years
- 1 x Lenco 102XD trim tab actuator
- Integrated 6ft (1.8m) cable
- Mounting bolts
- Deutsch plug connector
| SKU | 55509 |
|---|---|
| Barcode # | 9330420155228 |
| Brand | Lenco |
| Shipping Weight | 12.0000kg |

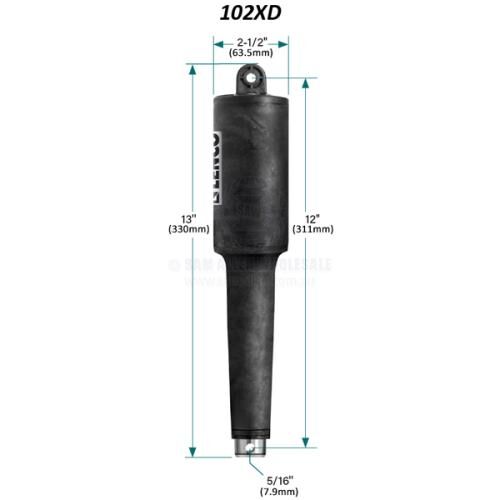

Lenco Trim Tab Actuator 102XD 12V 108mm Stroke 5/16 Mount
