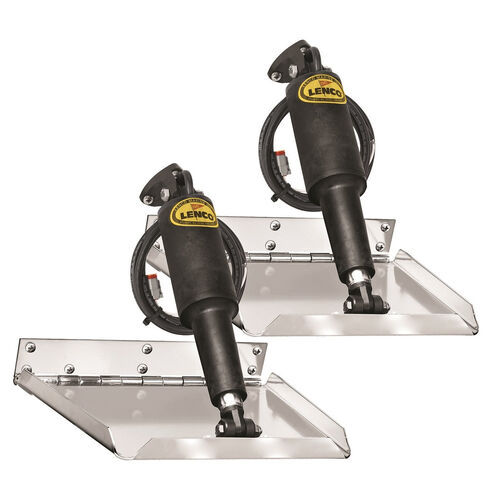

Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1"" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4"" (6.4 mm) diameter hinge pin.
Specifications
| Plane Size L x W | 9"" x 9"" |
| Boat length | 13' - 20' |
| Hinge Height | 2"" |
| Min Transom Height | 13.5"" |
| Voltage | 12vDC |
| Finish | Electro-Polish |
What's in the Box:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
- Proven Lenco trim kit for planing hulls
- 9" x 9" stainless planes add lift
- 12 gauge 304 stainless resists damage
- Electro-polished finish handles saltwater use
- Long wiring harness helps tidy installs
- Smart buy for 13–20 ft boats
- Plane size (L x W): 9" x 9" (22.9 cm x 22.9 cm)
- Boat length range: 13' to 20' (4 m to 6.1 m)
- Blade material: 12 gauge (2.7 mm) 304 stainless steel
- Blade edge design: 1" (2.5 cm) turned up edges
- Blade taper: 5 degree taper on inside edge
- Hinge type: heavy duty reinforced hinge
- Hinge pin diameter: 1/4" (6.4 mm)
- Hinge height: 2" (50.8 mm)
- Minimum transom height required: 13.5" (34.3 cm)
- System voltage: 12 V DC
- Blade finish: Electro-Polished stainless steel
- Actuator lead length: 6' (1.8 m)
- Extension harness length: 20' (6.1 m)
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
| SKU | LEN-H1 |
|---|---|
| Brand | Lenco |
| Shipping Weight | 12.0000kg |
