Description
- Built-in auto retract.
- 12/24 volt.
- LED indicator displays the exact position of your trim tabs, Auto brightness adjusting.
- Self check feature.
- Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit.
- 36" power pigtail for control box.
- Standard Mount Trim Tab Kits:
- 2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
- 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
- 2 x actuator extension wiring harness (6m) with Deutsch connectors.
- 1 x set of stainless steel fasteners.
- 2 x upper mounting bracket with gland seal.
- 2 x lower mounting bracket.
- Lenco owner’s installation manual.
- 5 Year Warranty (Recreational Use).
| Part No. | 55494 |
| Length | 9" (228mm) |
| Width | 12" (305mm) |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 4.9Mtr - 7.6Mtr |
| Finish | Electro Polished |
| Switch Kit | LED Indicator |
| Volts | 12V |
| Hinge Height | 51mm |
| Note | 24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages. |
Features
- 9x12 trim tabs for better bow control
- 12V 101 actuators with plug connectors
- LED indicator switch for clear feedback
- Electro polished 304G stainless tab plates
- Auto retract function on ignition off
- Five year warranty for recreational boats
Specifications
- Part number: 55494
- Kit type: standard mount trim tab kit
- Trim tab plate length: 9" (228mm)
- Trim tab plate width: 12" (305mm)
- Plate material: 12 gauge (2.7mm) 304G stainless steel
- Trailing edge: 5/8" flared
- Hinge pin diameter: 1/8"
- Hinge height: 51mm
- System voltage: 12V DC
- Compatible supply range listed as 12/24 volt
- Actuator type: 12 volt 101 actuator
- Actuator cable length: 1.8m
- Actuator extension harness length: 6m
- Minimum transom height: 356mm
- Approximate boat length suitability: 4.9m to 7.6m
- Switch kit type: LED indicator with auto retract and self-check
- Keypad and control box rating: waterproof with plug and play Deutsch connectors
- Finish: electro-polished stainless steel
- Warranty: 5 year warranty (recreational use)
- Packaging: supplied in retail package
- Note: 24 volt option available
- 2 x 9" x 12" standard mount trim tab plates, 12 gauge (2.7mm) 304G stainless steel with 5/8" flared trailing edge and 1/8" diameter hinge pin
- 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors
- 2 x actuator extension wiring harnesses (6m) with Deutsch connectors
- 1 x set of stainless steel fasteners
- 2 x upper mounting brackets with gland seals
- 2 x lower mounting brackets
- 1 x waterproof key pad with LED indicator and auto retract function
- 1 x solid state control box with 36" power pigtail and Deutsch connectors
- Lenco owner’s installation manual
| SKU | 55494 |
|---|---|
| Barcode # | 933042016390 |
| Brand | Lenco |
| Shipping Weight | 8.0000kg |
| Assembled Length | 0.228m |
| Assembled Width | 0.305m |

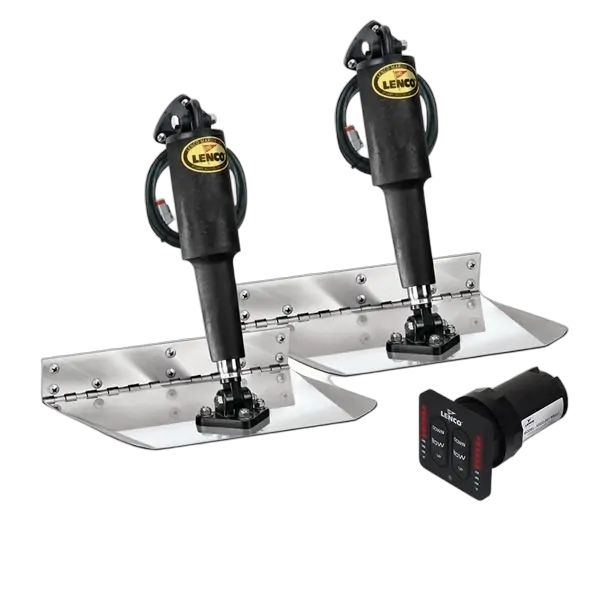

Lenco 9X12 Kit 12V LED Oem-Polished
