Description
| FEATURES |
| • Built-in auto retract. • 12 volt. • Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors. • 36 inch power pigtail for control box. Edge Mount Trim Tab Kit: • 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin. • 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors. • 2 x actuator extension wiring harness (6m) with Deutsch connectors. • 1 x set of stainless steel fasteners. • 2 x upper mounting bracket with gland seal. • 2 x lower mounting bracket. • Lenco owner’s installation manual. • 5 Year Warranty (Recreational Use). |
| Part No. | 55417 |
| Min. Transom Height | 279mm |
| Approx. Boat Length | 5.2Mtr - 9.2Mtr |
| Finish | Matte |
| Volts | 12V |
| Switch Kit | Standard Tactile |

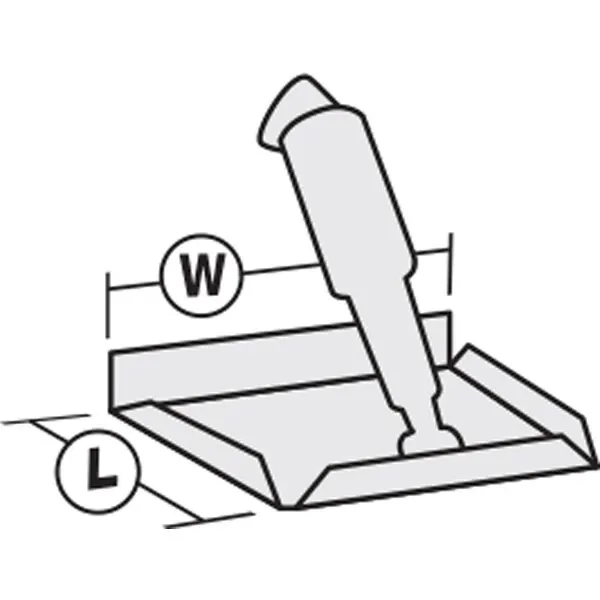

| Dimensions (L x W) | 12 inch (305mm) x 12 inch (305mm) |
| Hinge Height | 51mm |
| Note | 24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages. |
Features
- Full trim tab and switch kit setup
- 12V actuators with auto retract function
- 304G stainless plates made to last
- Sized right for 5.2m–9.2m boats
- Waterproof Deutsch connectors for tidy wiring
- Solid gear for regular marine use
Specifications
- Brand: Lenco
- Part number: 55417
- Trim tab type: Edge mount kit
- Plate material: 12 gauge (2.7mm) 304G stainless steel
- Plate finish: Matte
- Plate dimensions (L x W): 12 inch (305mm) x 12 inch (305mm)
- Hinge pin diameter: 1/8 inch
- Hinge height: 51mm
- Plate edge: 1 inch turned up edges with 5 degree taper to trailing edge
- Actuator type: 101 electric actuator
- Actuator voltage: 12V
- Actuator cable length: 1.8m
- Extension harness length: 6m
- Control box power pigtail length: 36 inch
- Switch kit type: Standard tactile
- Min. transom height: 279mm
- Approximate boat length range: 5.2m – 9.2m
- Built-in function: Auto retract
- Electrical connectors: Waterproof plug and play Deutsch connectors
- Supplied fasteners: Stainless steel
- Warranty: 5 year warranty (recreational use)
- Optional configuration: 24 volt option available
- Packaging: Supplied in retail package
- 2 x 12 inch x 12 inch edge mount trim tab plates (12 gauge / 2.7mm 304G stainless steel) with 1 inch turned up edges, 5 degree taper and 1/8 inch diameter hinge pin
- 2 x 12 volt 101 actuators with 1.8m cables and Deutsch connectors
- 2 x actuator extension wiring harnesses (6m) with Deutsch connectors
- 1 x set of stainless steel fasteners
- 2 x upper mounting brackets with gland seals
- 2 x lower mounting brackets
- 1 x waterproof key pad (standard tactile switch kit)
- 1 x solid state control box with waterproof plug and play Deutsch connectors and 36 inch power pigtail
- 1 x Lenco owner’s installation manual
| SKU | 55417 |
|---|---|
| Barcode # | 9330420181425 |
| Brand | Lenco |
| Shipping Weight | 6.0000kg |

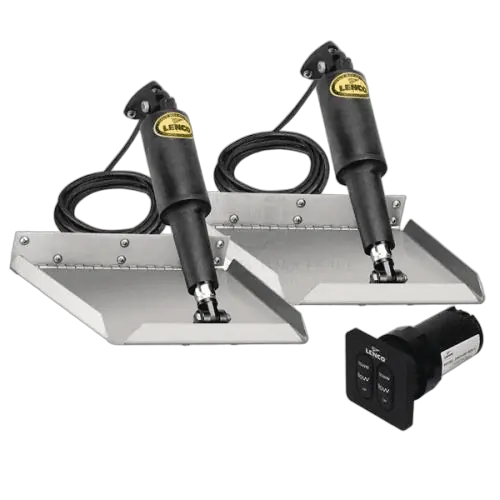

Lenco 12 inch x 12 inch Edge Mount Trim Tab & Standard Tactile Switch Kit
SKU: 55417
Sale price
REG $1,860.95
SALE ENDS
Dispatch in 5 days
More infoMake 4 payments of $412.50 over 8 weeks and get it now!
Calculate Shipping
