Description
| FEATURES |
| • Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration. • SAE Standard: 5 mounting holes. • 316G stainless steel main body. • Rubber gasket provides a liquid tight seal. • IP67 rated. • Operating temperature: -40 Degree Celsius - +85 Degree Celsius. • 300mm tinned wire with a PVC material cover. • Stainless steel screws included. • 33mm float cut out. |
| Part No. | 40240 |
| Length | 240mm |
| Mount Style | 5 Hole |
| Mount Flange | Dia. 69mm |
| OHMS | 240-33 |

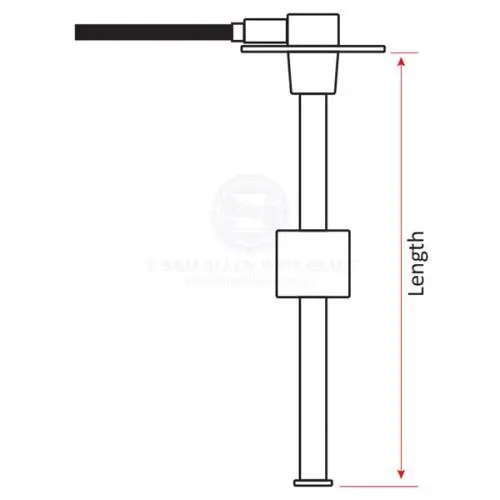

| Note | Special sizes available to order. Length is measured from underside of the flange to the base of the shaft. |
Features
- 240mm shaft works well in small tanks
- 240–33 Ohm sweep suits many gauges
- 316G stainless gear handles salty bilges
- Rubber gasket helps keep fuel contained
- IP67 housing goes the distance onboard
- 300mm tinned lead keeps wiring simple
Specifications
- Part number: 40240
- Sender type: S5 vertical hole sender
- Mount style: 5-hole SAE standard flange
- Mount flange diameter: 69mm
- Overall length: 240mm (underside of flange to base of shaft)
- Resistance range: 240–33 Ohms
- Main body material: 316G stainless steel
- Gasket material: rubber
- Wire length: 300mm
- Wire type: tinned copper with PVC sheath
- Ingress protection rating: IP67
- Operating temperature range: -40°C to +85°C
- Float cut-out: 33mm
- Switching method: magnetic field actuated reed on-off switch
- Vibration resistance: reed switch isolated by magnetic actuation
- Application category: marine fuel tank sender

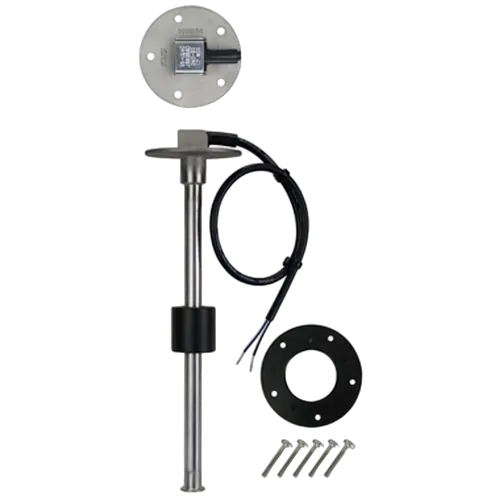

- 1 x Kus S5 hole fuel tank sender unit (length 240mm)
- 1 x 316G stainless steel mounting flange (diameter 69mm)
- 1 x rubber gasket
- 1 x 300mm tinned wire lead with PVC cover
- 5 x stainless steel mounting screws
- 1 x 33mm float assembly
| SKU | 40240 |
|---|---|
| Barcode # | 9330420111705 |
| Brand | Kus |
| Shipping Weight | 1.0000kg |
In stock
Dispatch in 1 day
More infoMake 4 payments of $13.50 over 8 weeks and get it now!
Heavy duty, high-quality manufacturing ensures this is a product you can rely on for years to come!
