Description
| FEATURES |
| • Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration. • SAE Standard: 5 mounting holes. • 316G stainless steel main body. • Rubber gasket provides a liquid tight seal. • IP67 rated. • Operating temperature: -40 Degree Celsius - +85 Degree Celsius. • 300mm tinned wire with a PVC material cover. • Stainless steel screws included. • 33mm float cut out. |
| Part No. | 40180 |
| Length | 180mm |
| Mount Style | 5 Hole |
| Mount Flange | Dia. 69mm |
| OHMS | 240-33 |
| Note | Special sizes available to order. Length is measured from underside of the flange to the base of the shaft. |
Features
- 316G stainless setup for Aussie conditions
- IP67 sender head for spray zones
- 180mm shaft great for small tanks
- 240–33 ohm range common on gauges
- 5-hole SAE pattern for straightforward swaps
- Rubber gasket and screws included kit
Specifications
- Part number: 40180

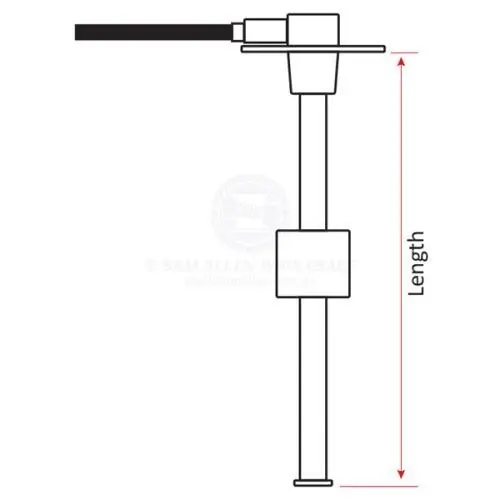

- Length: 180mm (measured from underside of flange to base of shaft)
- Mount style: 5-hole SAE standard pattern
- Mount flange diameter: 69mm
- Resistance range: 240–33 ohms
- Main body material: 316G stainless steel
- Float cut-out: 33mm
- Ingress protection rating: IP67
- Operating temperature range: -40°C to +85°C
- Wire length: 300mm tinned wire with PVC cover
- Seal type: rubber gasket providing liquid-tight seal
- Fasteners: stainless steel screws included
- Application: tank sender for marine fuel or similar tanks
- Note: special sizes available to order

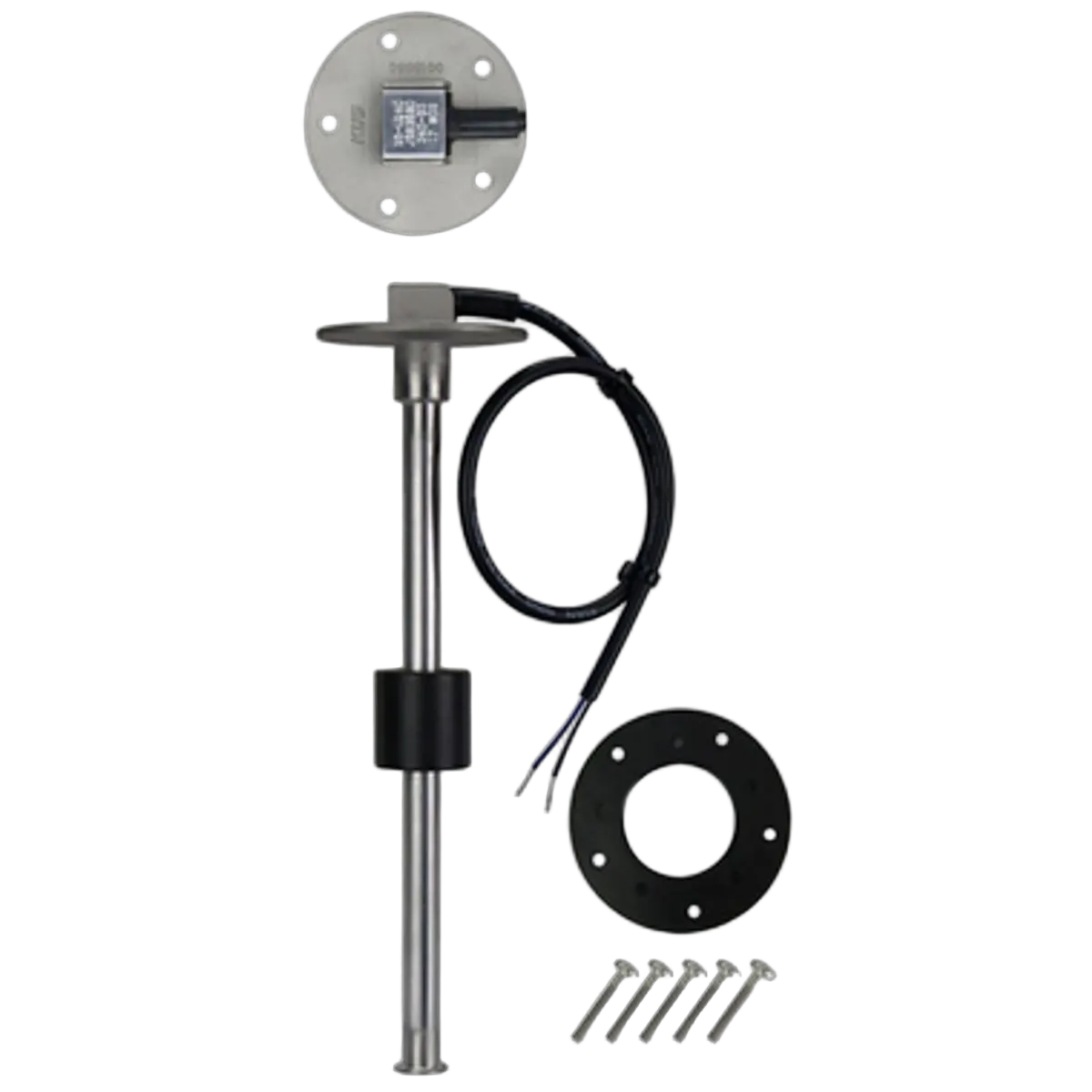

- 1 x Kus S5 hole sender unit 180mm length
- 1 x rubber mounting gasket
- 5 x stainless steel mounting screws
- 1 x integrated 300mm tinned wire lead with PVC cover
| SKU | 40180 |
|---|---|
| Barcode # | 9330420114157 |
| Brand | Kus |
| Shipping Weight | 1.0000kg |
Kus S5 Hole Sender 180mm 240-33 OHMS
SKU: 40180
Sale price
REG $62.20
SALE ENDS
Dispatch in 5 days
More infoMake 4 payments of $13.25 over 8 weeks and get it now!
Heavy duty, high-quality manufacturing ensures this is a product you can rely on for years to come!
