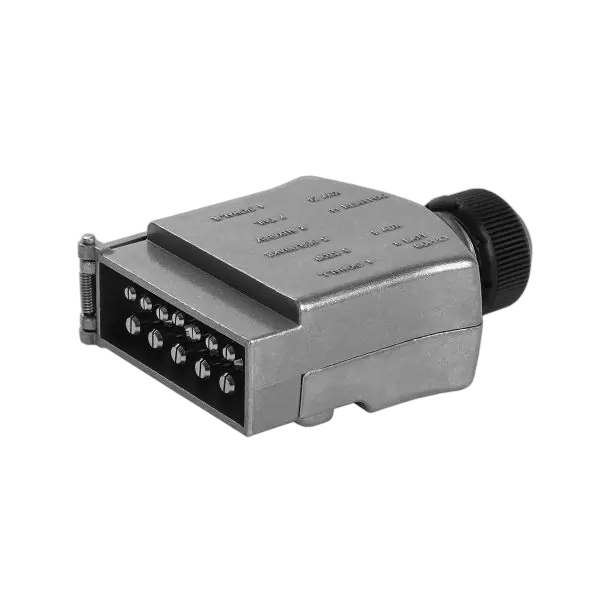

The KT 12 Pin Metal Trailer Plug (Model No.KT1244) is manufactured using quality alloy making this particular product popular towing solution in the 4×4 and trucking markets.
The Trailer Plug & Socket are tough, durable and built to withstand harsh weather conditions and environments for example; operating by coastal waters where corrosion could normally be a problem. KT uses corrosion proof alloy in all metal trailer plugs to prevent this issue.
Features:
- 12 Pins in total
- Manufactured using robust alloy
- Circuits Moulded into housing
- Stainless Steel Phillips Head Screws
- Spring Loaded Dust-Proof Cover
- KT 12 Pin Trailer Plugs are designed with a large body for easy grip
- Cable Gland protects from dirt and dust entering the plug by fastening around trailer cable.
- Screw Cap fastens gland to cable to prevent cable pullout
Specifications:
- 7 pins rated to 15A at 12V
- 5 pins rated to 35A at 12V
- Suits cable sizes: 7 Core Trailer Cable 3mm & 4mm
- Suits cable sizes: 5 Core Trailer Cable up to 6mm
Warranty
12 Month Warranty on any manufacturing defects.
- 12-pin flat setup for extra circuits
- Proven alloy body for coastal towing
- 15A and 35A pins for mixed loads
- Dust cover guards contacts on dirt roads
- Cable gland grips sheath and reduces strain
- Smart buy for multi-axle or camper rigs
- Total pins: 12
- Pin ratings: 7 pins rated to 15A at 12V
- High-current pins: 5 pins rated to 35A at 12V
- Suits 7 core trailer cable: 3mm and 4mm
- Suits 5 core trailer cable: up to 6mm
- Housing material: corrosion-proof alloy
- Fasteners: stainless steel Phillips head screws
- Cover: spring-loaded dust-proof cover
- Cable entry: cable gland with screw cap to prevent pull-out
- Warranty: 12-month warranty on manufacturing defects
- 1 x KT Accessories 12 pin flat metal trailer plug (model KT1244)
| SKU | KT1244 |
|---|---|
| Barcode # | OEBC586027 |
| Brand | KT Accessories |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.102m |
| Shipping Height | 0.038m |
| Shipping Length | 0.148m |

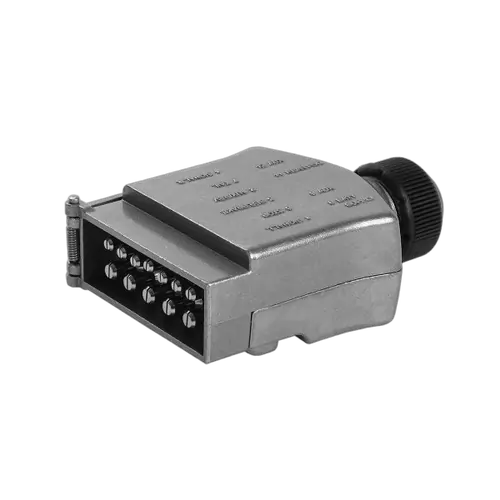

KT Accessories 12 Pin, Trailer Plug Metal, Standard
