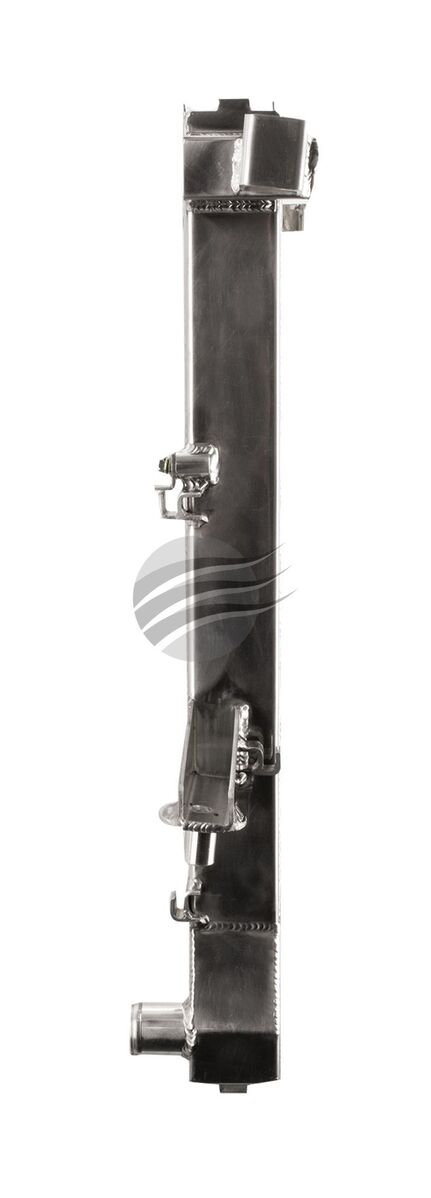

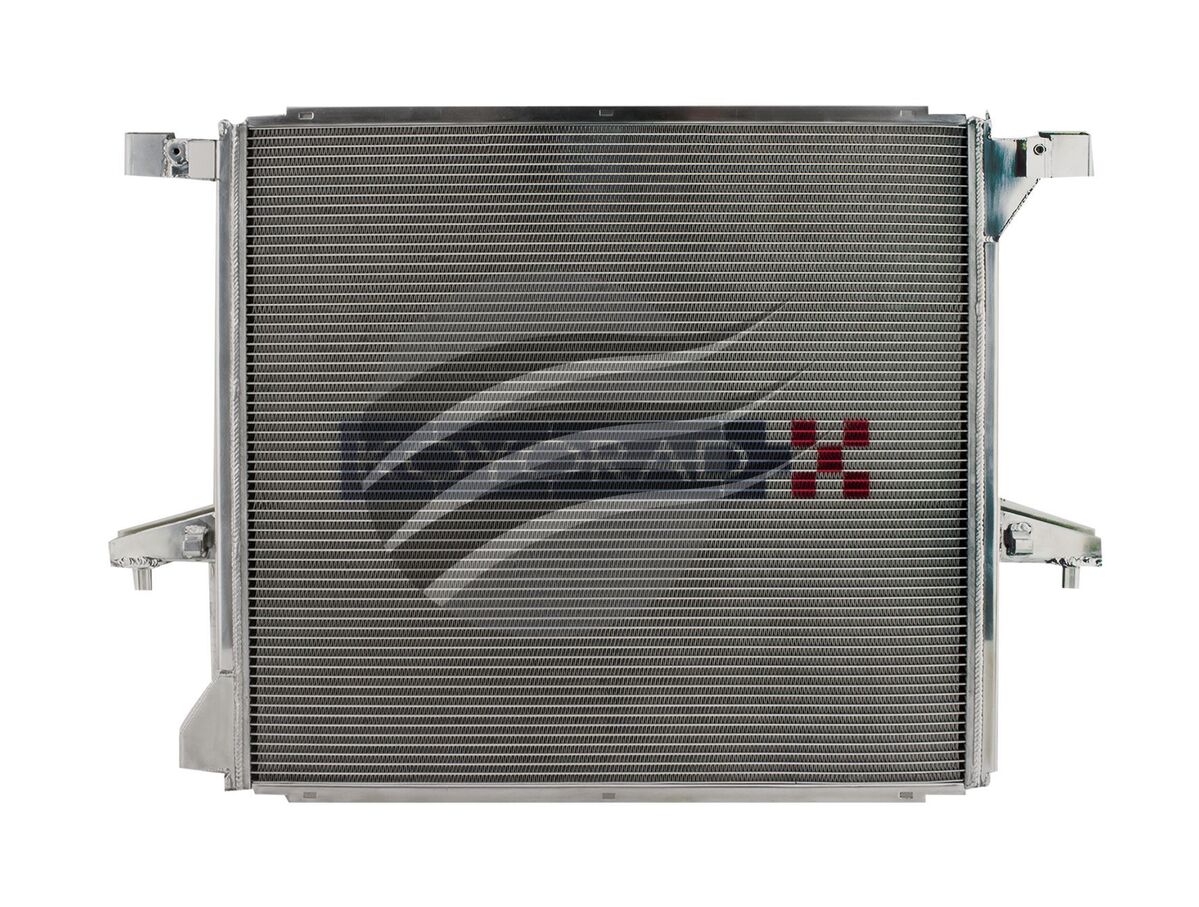

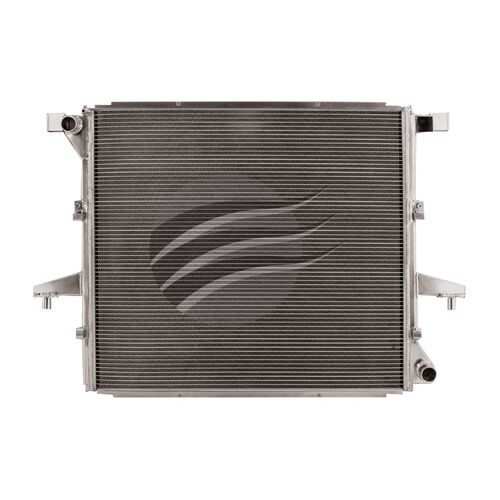

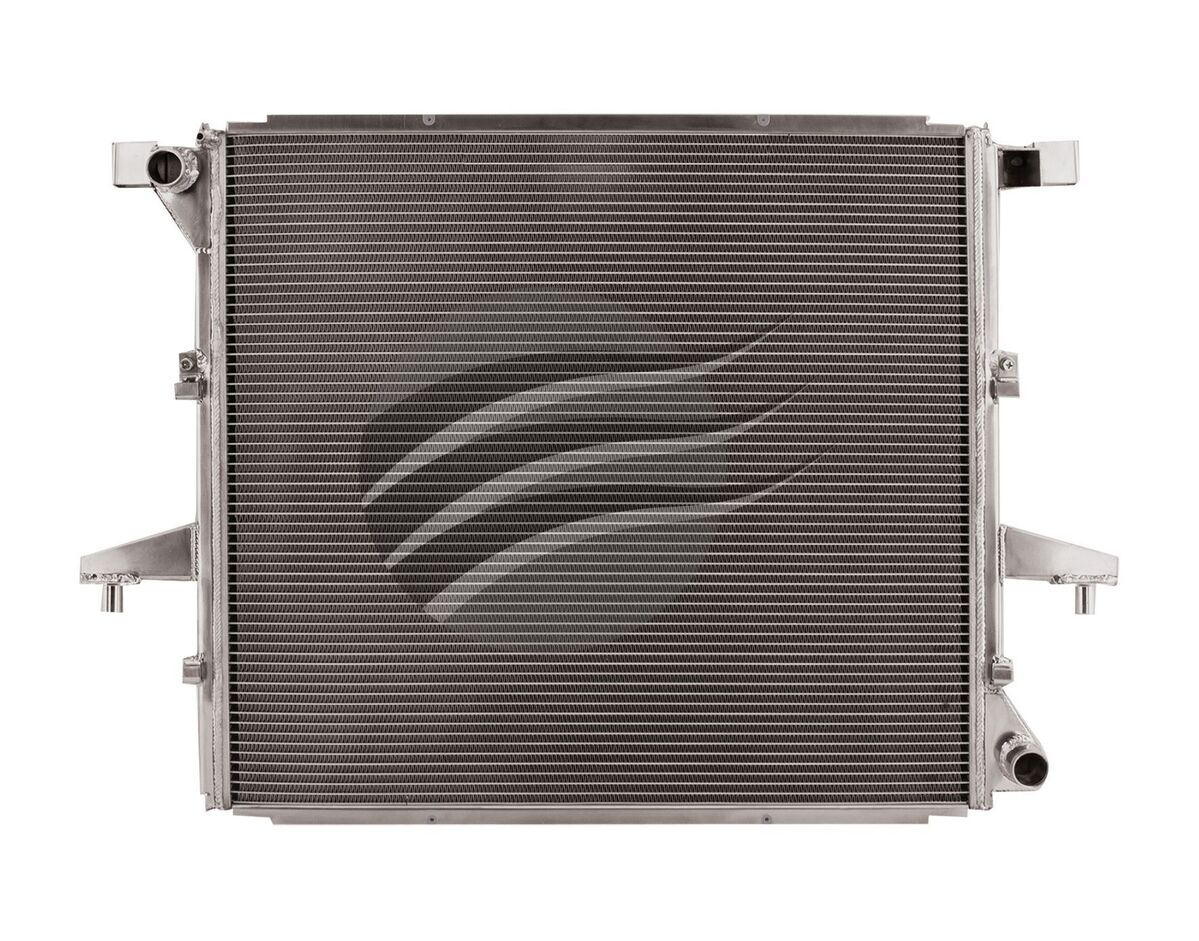

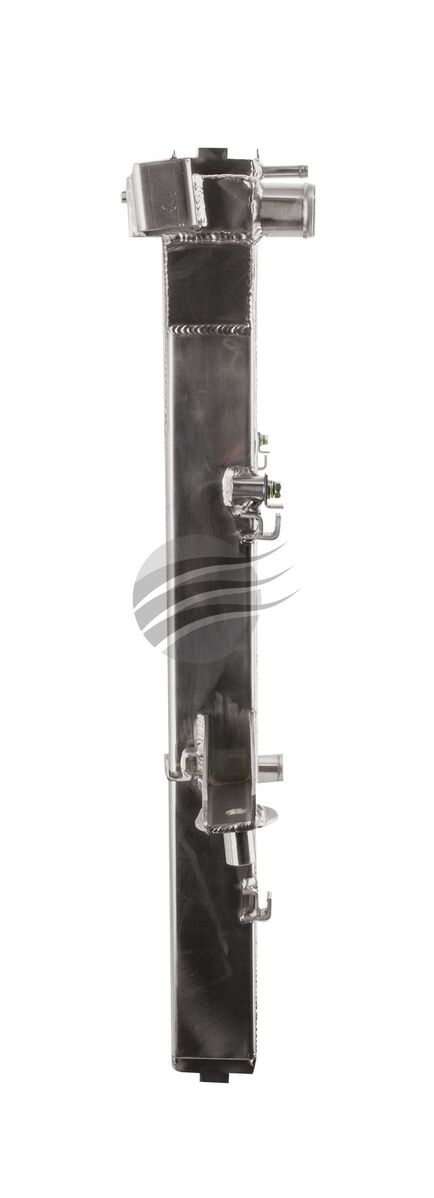

This Koyorad radiator with a 617 mm high and 577 mm wide core is built for VW Amarok 2H utes from 02/2011 onward in both petrol and diesel. The 48 mm thick core gives enough coolant volume to tackle long highway pulls and low speed climbs with a load on the tray. The 32 mm inlet and 32 mm outlet suit factory hoses so the gear lines up with standard Amarok cooling layouts.

The alloy construction pairs with an 8 mm breather to handle expansion as temps move in typical Aussie heat. The built in transmission cooler keeps automatic models tidy without extra external coolers or brackets. Those core dimensions of 617 x 577 x 48 mm give a proven balance of surface area and airflow for touring from the coast to red dirt tracks. If you want a smart buy for Amarok cooling, this radiator earns its spot.

• Suits VW Amarok 2H models from 02/2011 onward
• Compatible with both petrol and diesel engines
• Core height of 617 mm for strong cooling capacity
• Core width of 577 mm matched to Amarok front support
• Core thickness of 48 mm for increased coolant volume
• 32 mm inlet and outlet diameters suit factory hoses
• 8 mm breather connection supports stable pressure control
• Integrated transmission cooler for automatic gearboxes
• Alloy construction with metal side frames for secure mounting
• Ideal replacement radiator for touring and towing setups

Q: Does this radiator fit both manual and automatic VW Amarok 2H models?

Yes, it suits both manual and automatic Amarok 2H models from 02/2011 onward. The core dimensions match the factory layout used across these variants. Automatics benefit from the integrated transmission cooler already built into the radiator. Manual models simply use the engine cooling side without needing the cooler ports.

Q: Do I need to modify the factory hoses to install this Koyorad radiator?

No, the radiator uses 32 mm inlet and outlet connections that match the original hose sizing. In most cases the existing upper and lower hoses can be reused if they are still in good condition. Many owners choose to replace aged hoses at the same time as preventative maintenance. A visual check before refitting will show if any hose needs changing.

Q: Is this radiator suitable for towing and long-distance touring?

Yes, the 617 x 577 x 48 mm core is well suited to steady heat loads from towing and touring. The larger thickness gives a solid coolant volume to manage higher temperatures. The alloy construction and integrated transmission cooler help when hauling up long climbs. For heavy-duty use, always pair the radiator with correct coolant and a clean cooling system.

Q: What coolant should I run with this Koyorad radiator?

Use the coolant type and mix ratio specified by Volkswagen for the Amarok 2H engine. The radiator is designed to work with OEM-style glycol-based coolants. Sticking with the correct spec helps protect alloy components and internal passages. Always flush the old coolant completely before filling the new radiator to avoid contamination.

Suitable for VW Amarok 2H models from 02/2011 onwards in both petrol and diesel variants. Installation requires removal of the factory radiator and transfer of any original hoses and mounts that are reused. Professional installation is recommended due to cooling and transmission cooler connections. Check core dimensions of 617 mm high by 577 mm wide by 48 mm thick against your existing radiator before fitment.
